Question 1
1 Read the passage below. Use the information in the passage and your own knowledge to answer the questions that follow.
Treating Kidney Disease
Chronic kidney disease affects approximately 12% of the world’s population and many people are unable to obtain treatment. One method of treating chronic kidney disease is by dialysis. The diagram shows how kidney dialysis is done.

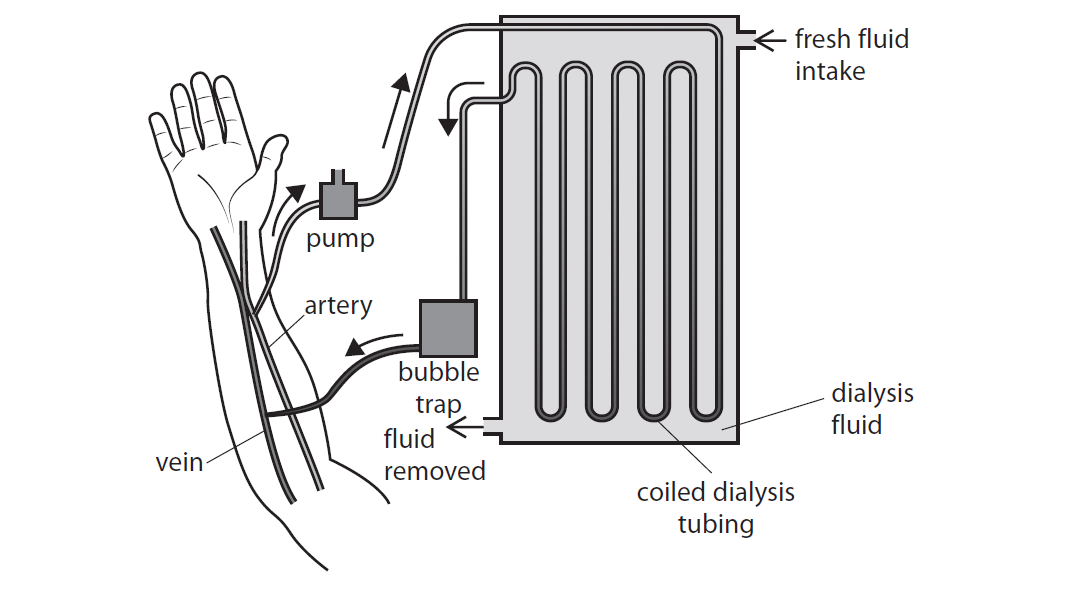

During dialysis, blood is taken from an artery in the arm and is pumped through a dialyser. In the dialyser, the blood passes through a long, coiled dialysis tube made of a thin partially permeable membrane. The tube is surrounded by dialysis fluid. The dialysis fluid contains glucose and ions at concentrations normally found in blood plasma, but does not contain urea. The urea passes from the blood into the dialysis fluid. The temperature in the dialyser is kept at 40 °C. After passing through the dialyser, the blood is returned to a vein in the arm. Kidney dialysis can take up to three hours and must be done three times a week.
Scientists have now designed a new bioartificial kidney. This artificial kidney is a combination of engineering and living cells. This artificial kidney has a haemofilter made from artificial membranes that filter the blood. The substances filtered out of the blood then pass through a device called a bioreactor. This bioreactor absorbs useful substances back into the blood. The bioreactor is made of living nephron cells that are grown from stem cells. These cells are separated from the patient’s blood by a silicon membrane to prevent the immune system rejecting them. Bioartificial kidneys are the same size as a human kidney and will be fitted inside the body to replace a kidney. The bioartificial kidney can react to changes in the body in the same way as a normal kidney.
(a) In 2021, the world’s population was 7 900 000 000. Calculate the number of people in the world who have chronic kidney disease (Lines 1 and 2). Give your answer in standard form.
number of people = ……………………………………………………..
(b) Urea is an excretory product that is released by the kidneys. Give the name of an excretory product that is released by the lungs.
(c) Explain two ways that the dialyser is designed to increase the rate of removal of urea from the blood (Lines 5 to 11).
(d) (i) The haemofilter in the bioartificial kidney filters the blood (Lines 13 and 14).Where does ultrafiltration occur in a nephron?
A. Bowman’s capsule
B. collecting duct
C. distal convoluted tubule
D. loop of Henle
(ii) The cells in the bioreactor absorb glucose from the filtrate in a way that is similar to the cells in a nephron (Lines 14 to 17). Describe how the nephron absorbs glucose back into the blood from the filtrate.

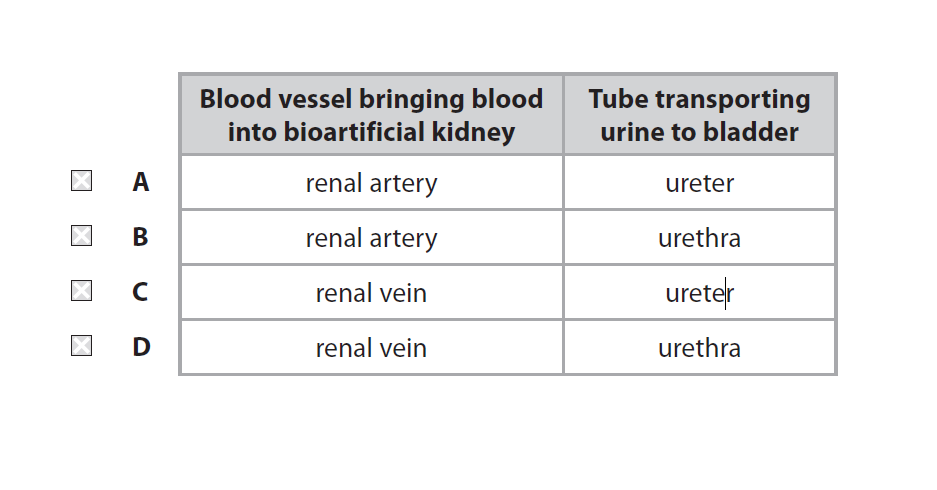

(iii) The bioartificial kidney is connected to blood vessels and to the tube that transports urine to the bladder in the same way as the human kidney. Which row of the table is correct?
(e) Explain how the pituitary gland and the nephron cells in the bioreactor will respond in a patient who is dehydrated (Lines 20 and 21).
▶️Answer/Explanation
1(a) 9.5 ×108 (2)
1 (b) carbon dioxide / CO2 / water (vapour) / H2O (1)
1 (c) An explanation that makes reference to four from:
- 40 oC (temperature) (1)
- more particle movement / more (kinetic) energy / faster diffusion / eq (1)
1 (d)(i) A (Bowman’s capsule) is the only correct answer
B is incorrect as ultrafiltration does not occur at the collecting duct
C is incorrect as ultrafiltration does not occur at the distal convoluted tubule
D is incorrect as ultrafiltration does not occur at the loop of Henle
1(d)(ii) A description that makes reference to two of the following:
- selective reabsorption (1)
- in proximal (convoluted) tubule / PCT (1)
- active transport / uses energy / uses ATP (1)
- against (concentration) gradient (1)
1(d) (iii) A (renal artery / ureter) is the only correct answer
B is incorrect because the urethra does not exit the kidney
C is incorrect because the renal vein does not bring blood into the kidney
D is incorrect because the renal vein does not bring blood into the kidney
1 (e) An explanation that makes reference to three of the following:
- osmoreceptors / hypothalamus, detects high salt concentration in blood / lower water potential in blood / eq (1)
- (pituitary) releases (more) ADH (1)
- (nephron) cells / collecting duct more permeable (1)
- (more) water is reabsorbed / (more) water absorbed into blood /eq (1)
- urine becomes more concentrated / lower volume of urine / eq (1)
Question 2

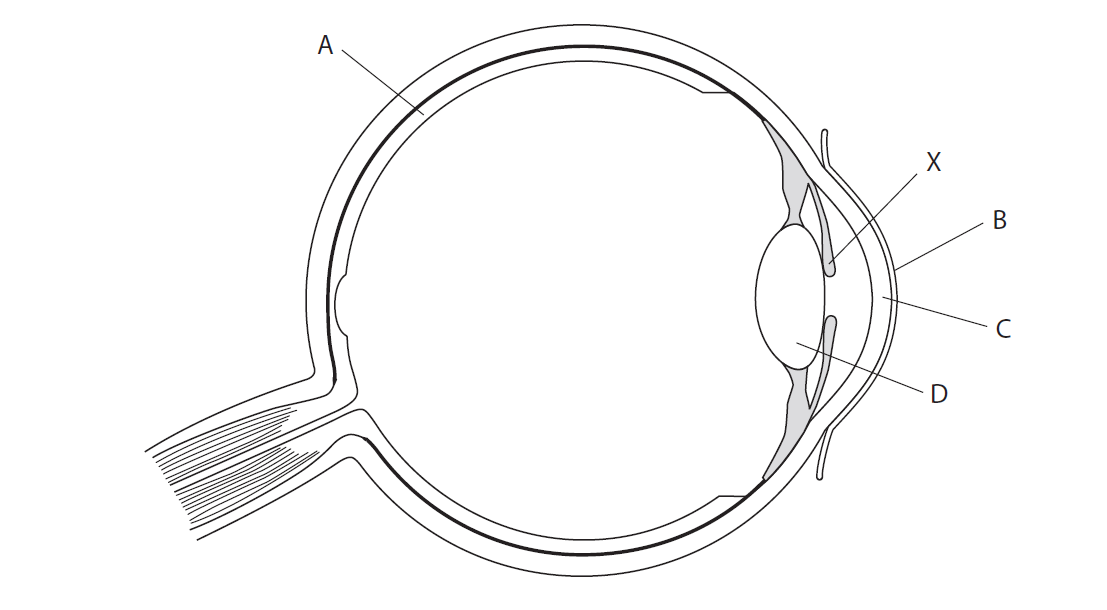

2(a) The diagram shows a human eye.
(i) Which labelled structure is the cornea?
A
B
C
D
(ii) Explain the changes in structure X as a person moves from a room where the light is dim to a room where the light is bright.

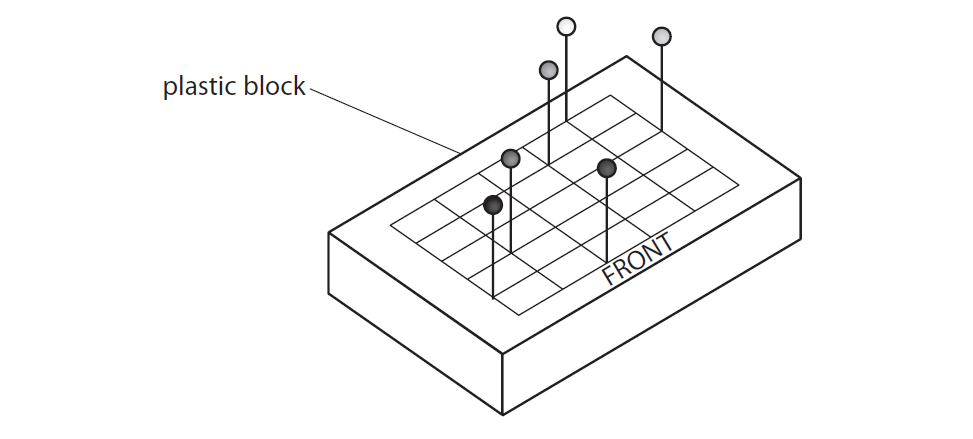

(b) A student investigates if using one eye or using two eyes is better for judging the distance of objects. The student uses the plastic block shown in the diagram. The block has a grid where six different coloured pins can be placed as shown in the diagram.
This is the student’s method.
• place one pin into the lines of each column and row so that each pin is a different distance from the front of the grid
• ask a volunteer to close one eye
• hold the grid in front of the volunteer so they can see the coloured pins but not the grid
• ask the volunteer to call out the colour of the pins in order of distance, from nearest to furthest
• record the number of pins that the volunteer identifies correctly
• repeat eight more times, each time moving the pins to different positions in the grid
The student does the experiment again with both eyes open.
(i) Give the independent variable for the student’s investigation.
(ii) Give one variable that the student should control.

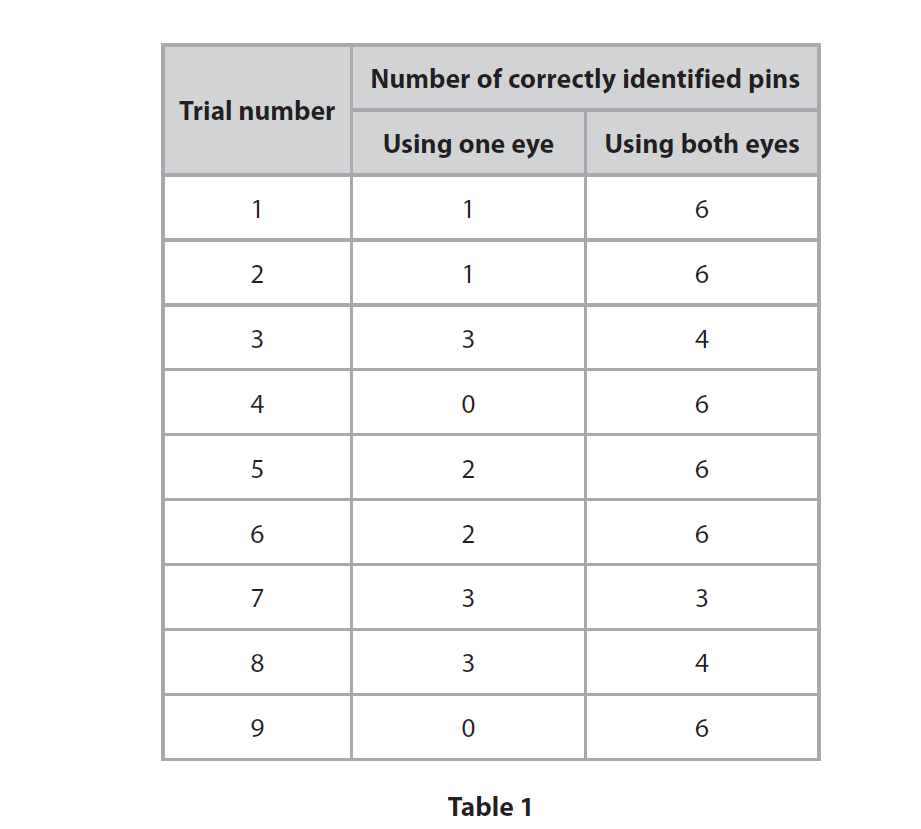

(iii) Table 1 shows the student’s results.

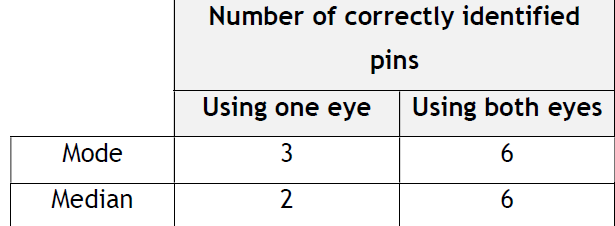

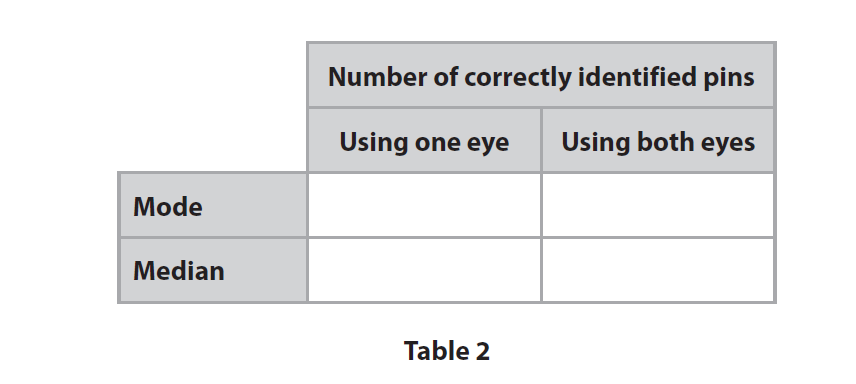

Complete Table 2 by determining the mode and the median for the data shown in Table 1.

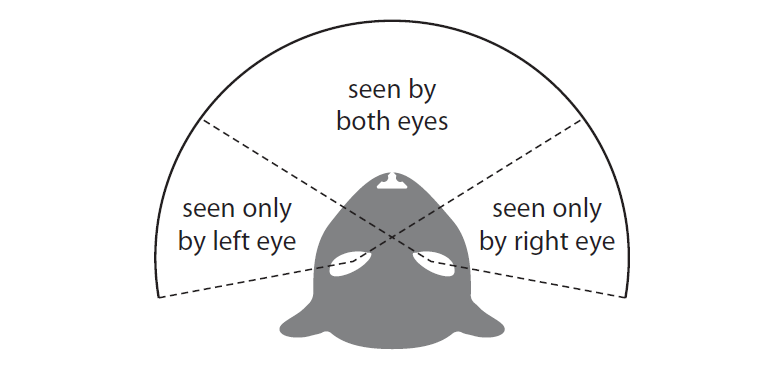

(iv) The field of view is the area that an animal can see with their eyes. The diagram shows the field of view for a cat.
Explain why predators, such as cats, have two forward facing eyes. Use the information in the diagram and Table 2 to support your answer.
▶️Answer/Explanation
2(a)(i) C is the only correct answer
A is incorrect because it is the retina
B is incorrect because it is the conjunctiva
D is incorrect because it is the lens
2 (a)(ii) An explanation that makes reference to two of the following:
• circular muscles contract (1)
• radial muscles relax (1)
• (so) pupil narrows / gets smaller / constricts / iris widens / eq (1)
2 (b)(i)• using one eye or both eyes / amount of eyes / number of eyes / eq (1)
2 (b)(ii) An answer that makes reference one of:
• light intensity / lighting / eq (1)
• distance (from block) / eq (1)
• size of pins / shape of pins / colour of pins / sideways distance between pins / number of pins / eq (1)
• size of block / shape of block / angle of the block / size of grid / eq (1)
2 (b)(iii)
2(b)(iv) An explanation that makes reference to three of:
• better distance judgement (with two eyes) / better depth perception / poorer distance judgement with one eye / eq (1)
• large area seen by both eyes / large overlapping visual field / eq (1)
• to locate prey / catch prey / chase prey / see prey / eq (1)
• do not need wide field of view as not preyed upon / do not need to see behind as not preyed on / eq (1)
Question 3
Hair colour in cattle is controlled by one gene with two alleles. The allele for white hair, CW, is codominant with the allele for red hair, CR.
Heterozygous cattle are a pale red colour called roan.
(a) State what is meant by the term gene.

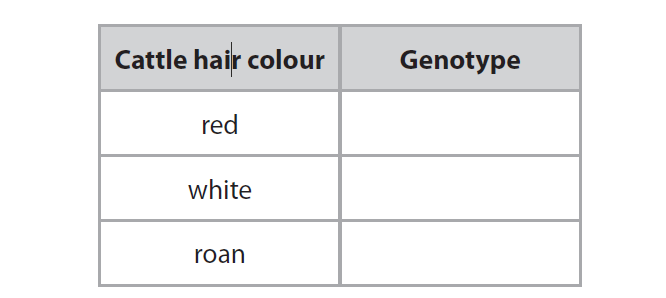

(b) (i) Complete the table by giving the genotypes of red cattle, white cattle, and roan cattle.
(ii) Two roan‑coloured cattle are mated.
Determine the probability that the calf produced is a male calf with roan‑coloured hair. Include a genetic diagram in your answer.
(c) (i) In a group of cattle, there are cattle with white-, red-, and roan- coloured hair. Height of cattle is also a genetically controlled characteristic. In the same group, there is a greater variation of heights compared with hair colour. Explain why there is a greater variation in height of the cattle than there is in hair colour.
(ii) Describe how a farmer could use selective breeding to increase the height of cattle.
▶️Answer/Explanation
3 (a) . a section / length of DNA that codes for a protein / polypeptide / chain of amino acids / eq (1)

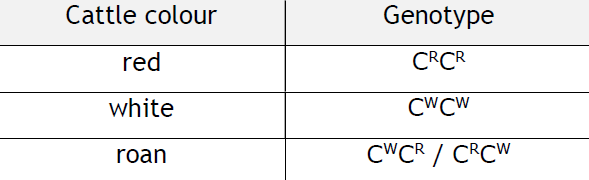

3 (b)(i)
3(b)(ii) An answer that includes the following:
. parental genotypes of CWCR and CWCR (1)
. parental gametes of CW or CR (and CW or CR) (1)
. offspring as 1 CRCR 2 CWCR 1 CWCW (1)
. probability calculated as 0.25 / ¼ / 25% (1)
3 (c)(i) An answer that makes reference to two of the following:
. height is polygenic (1)
. so multiple / many / more than one gene / different genes control height / eq (1)
. animals may get a mixture of dominant and recessive alleles for different genes / eq (1)
. environment / nutrition may affect height / eq (1)
3 (c)(ii) A description that makes reference to two of the following:
. select cattle that are taller and mate them / eq (1)
. select offspring (that are taller) and mate them / eq (1)
. repeat (through generations) / eq (1)
Question 4
4 Scientists have genetically modified soya plants so that the soya beans they produce contain less saturated fat.
The scientists produced one transgenic soya plant. Micropropagation was then used to make multiple copies of this transgenic soya plant.
(a) Explain why micropropagation was used to produce copies of the transgenic soya plant.

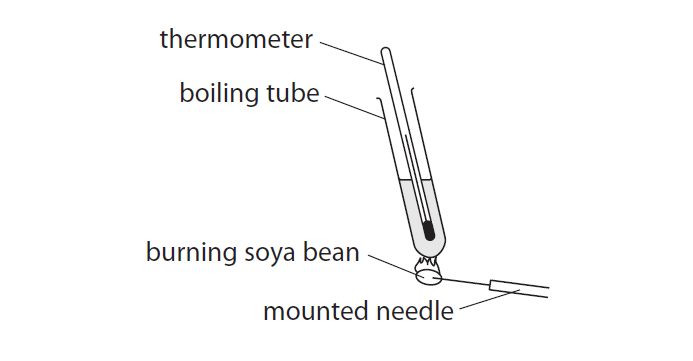

(b) A student uses this equipment to compare the energy content of transgenic soya beans with the energy content of non‑transgenic soya beans.
(i) Describe how the student could use the equipment to make a valid comparison of the energy content of the two types of soya bean.
(ii) Give one safety precaution that the student should take when using the apparatus.

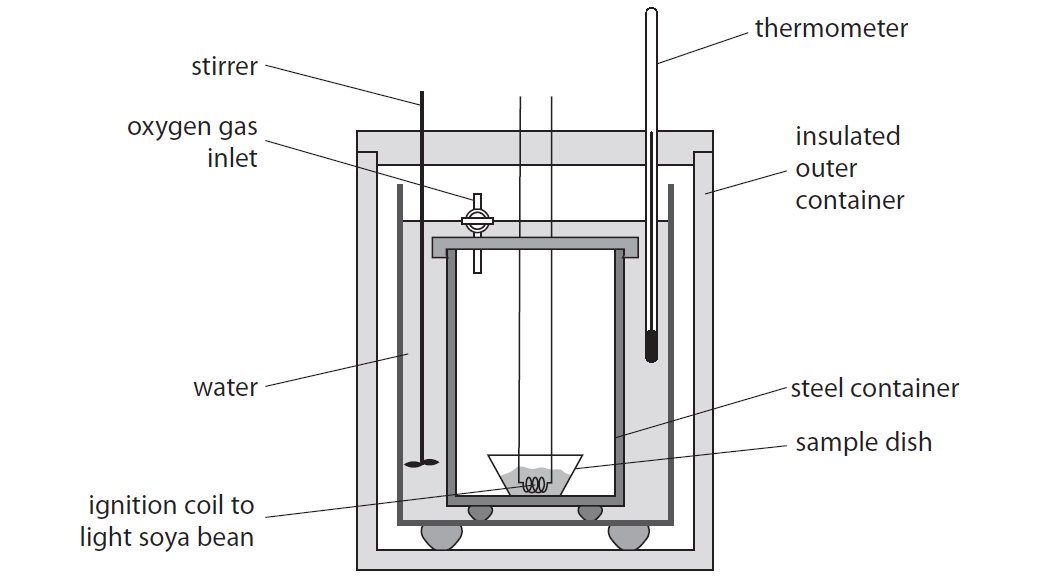

(iii) The diagram shows a different type of apparatus that can be used for the investigation.
Explain two reasons why this apparatus will give a more accurate energy value than the apparatus used by the student.
▶️Answer/Explanation
4 (a) An explanation that makes reference to two of the following:
. plants will be genetically identical / same genes / will all have the gene / same DNA / eq (1)
. all have same (saturated) fat / all have less (saturated) fat / eq (1)
. (only one plant was made) and there were no others to breed with / eq (1)
. no need to repeat genetic modification / eq (1)
. fast method (to produce many) / can be produced any time of year / eq (1)
4(b)(i) A description that makes reference to four of the following:
. weigh beans / same mass of beans / (calculate) per gram of food / eq (1)
. same volume of water / measure volume / same mass of water / stated volume of water / eq (1)
. ignite bean / set fire, and hold under test tube / water / heat water / eq (1)
. keep igniting until will no longer burn / burnt completely / eq (1)
. measure temperature rise / start and end temp / start and highest temp / change in temp / eq (1)
. repeats (1)
4 (b)(ii) An explanation that makes reference to one of the following:
. wear eye protection / gloves / eq (1)
. wear lab coat / tie back long hair / eq (1)
. use a heat proof tile / place on safety flame when not using / use tongs / clamp test tube in stand / eq (1)
4 (b)(iii) An explanation that makes reference to four of the following:
. oxygen supply / oxygen gas inlet (1)
. to ensure complete combustion / so burns fully / eq (1)
Question 5

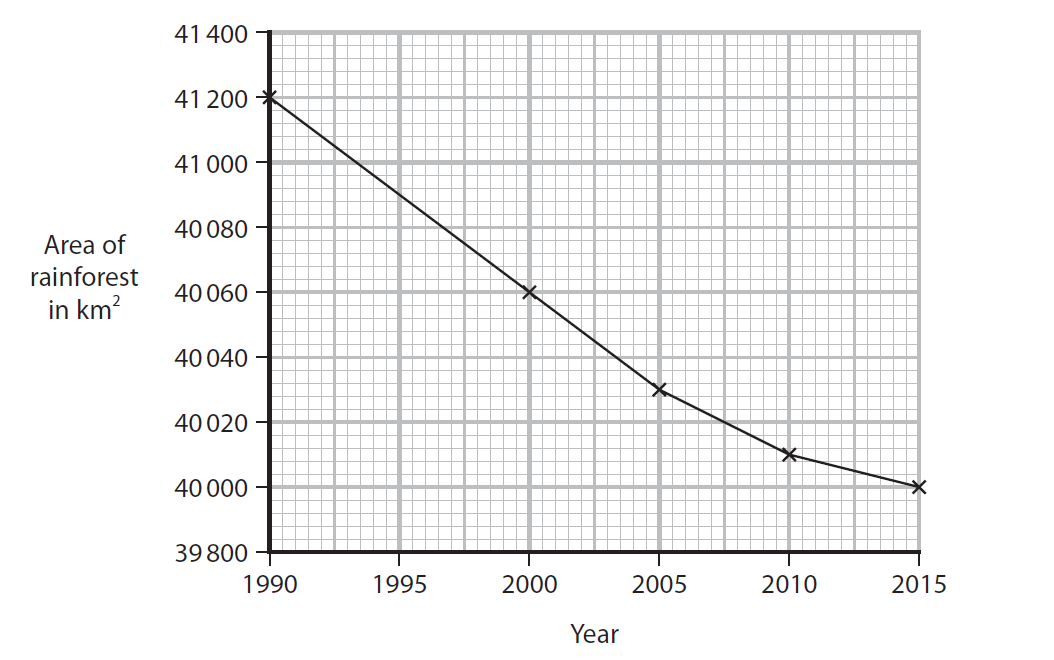

5 (a) The graph shows the change in area of rainforest on the Earth from 1990 to 2015.
(i) Determine the mean rate of decrease of rainforest area, in km2 per year, from 1990 to 2015.
(ii) Loss of rainforests causes an increase in atmospheric carbon dioxide gas.
Explain the negative effects of an increase in atmospheric carbon dioxide gas.
(b) Scientists investigated the effect of deforestation on a river. The river flows through a forest, part of which has been deforested.

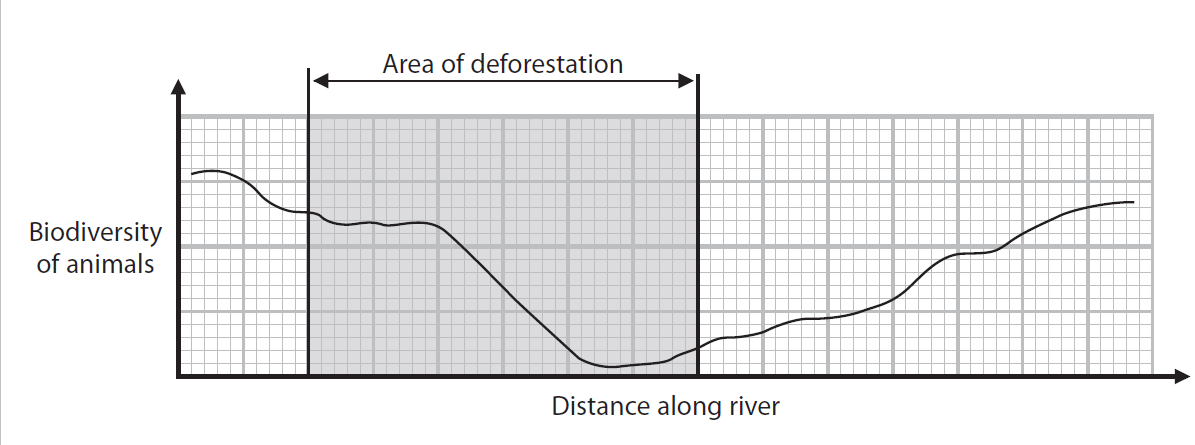

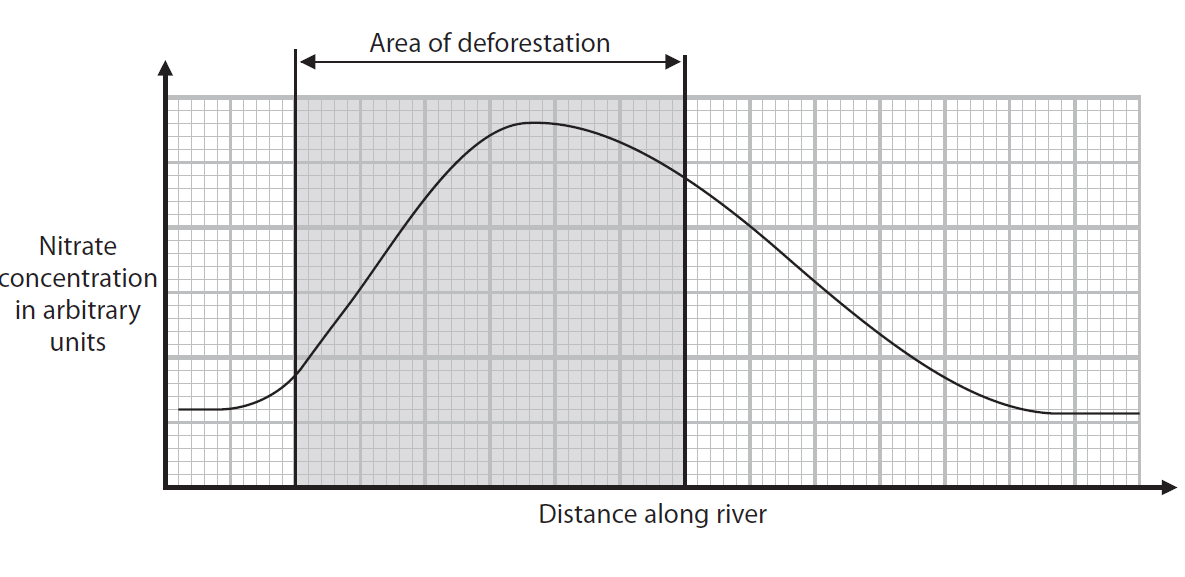

The graphs show the changes in nitrate concentration and the biodiversity of animals in the river as it flows through the forest.
(i) Describe the role of microorganisms in the conversion of organic waste into nitrate ions in the river.
(ii) The number of different animal species living in the river was recorded as a measure of the biodiversity of animals.
Give a reason why this may not be a complete measure of biodiversity.
(iii) Explain the change in the biodiversity of animals along the river.
Use information from the graphs in your answer.
▶️Answer/Explanation
5 (a)(i) . 48(2)
5 (a)(ii) An explanation that makes reference to three of the following:
. carbon dioxide is a greenhouse gas / causes greenhouse effect / increased reflection of radiation / global warming / increased temperature / heat trapped / eq (1)
. ice cap melting / glacier melting / sea level rise / flooding / habitat loss / eq (1)
. climate change / weather pattern changes / droughts / storms / extreme weather / desertification / eq (1)
. ocean acidification / coral reef bleaching / eq (1)
5 (b)(i) An explanation that makes reference to three of the following:
. decomposition / decomposers / eq (1)
. (decomposer) bacteria / fungi (1)
. (organic waste) to ammonia / ammonification (1)
. ammonium to nitrite / nitrite converted to nitrate (1)
. nitrification / nitrifying bacteria (convert ammonium to nitrite / nitrite to nitrate / ammonium to nitrate) (1)
5 (b)(ii) An explanation that makes reference to one of the following:
. does not consider plants / bacteria / fungi / protoctists / eq (1)
. does not take into account the population sizes / numbers of organisms / abundance / some species may have different numbers / eq (1)
. some species may be seasonal / migrate (1)
5 (b) (iii) An explanation that makes reference to four of the following:
- as nitrate increases, diversity decreases / deforestation reduces biodiversity /eq (1)
- soil erosion / run off / leaching of minerals / leaching of nitrates / release of organic waste into river / eq (1)
- eutrophication occurs / algae grow / (river) plants grow / eq (1)
- less light penetration / eq (1)
- death of plants / less photosynthesis (1)
- (dead algae / organic waste) decomposes (1)
- less oxygen / eq (1)
- due to (bacterial) respiration (1)
- fish / animal species die (1)
- loss of food / disruption of food chains / loss of nesting sites / habitat / eq (1)
Question 6
6 Rabies is a dangerous disease caused by a virus.
(a) The rabies virus is a pathogen.
Which other groups of microorganisms include pathogens?
A bacteria and fungi only
B bacteria, fungi, and protoctists
C bacteria and protoctists only
D fungi and protoctists only
(b) Rabies is transmitted to humans when they are bitten by an infected animal. Domestic dogs are dogs kept by people as pets or as working animals. Dogs and some wild animals are known to transfer rabies to humans.

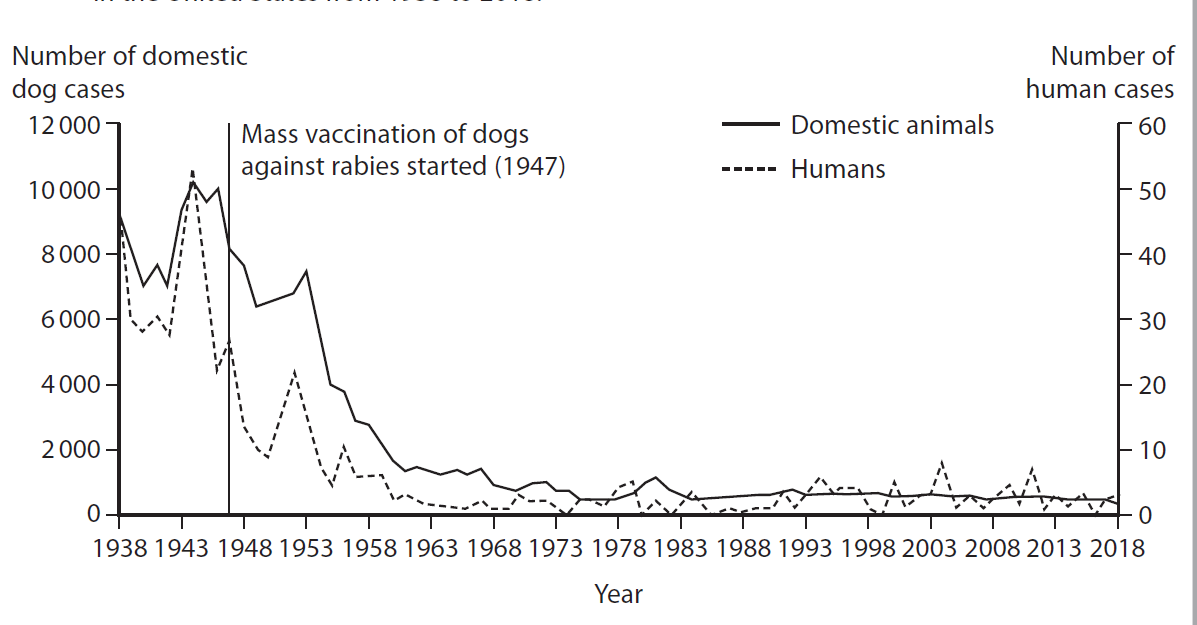

In the 1940s, a rabies vaccine for animals was introduced in the United States and most domestic dogs were vaccinated. The graph shows the number of cases of human rabies and domestic dog rabies in the United States from 1938 to 2018.
(i) The immune system of dogs works in a similar way to the immune system of humans.
Explain how the rabies vaccine prevents dogs from developing rabies.
(ii) Discuss the effects of the use of the rabies vaccine to immunise domestic dogs on the number of cases of rabies in humans. Use information from the graph to support your answer.
(iii) A new RNA vaccine is being developed to treat rabies. RNA that codes for parts of the rabies virus protein coat are injected into the body. Cells then take up the RNA and produce the viral proteins. Describe how the cells use the RNA to produce the viral proteins.
▶️Answer/Explanation
6 (a) B (bacteria, fungi, and protoctists) is the only correct answer
A is incorrect because protoctists also has pathogens
C is incorrect because fungi also has pathogens
D is incorrect because bacteria also has pathogens
6(b)(i) An explanation that makes reference to three of the following:
- weak(er) / inactivated virus / inactive pathogen / microbe / eq (1)
- antigens (in vaccine) (1)
- lymphocytes (recognise antigens) (1)
- memory cells (1)
- faster / sooner / larger number of antibodies made (when virus encountered again) / secondary immune response occurs (if virus encountered again) (1)
6 (b)(ii) An answer that makes reference to four of the following:
- rabies cases are high before vaccination / before 1947 / eq (1)
- (continuous) fall in cases after vaccination / after 1940s / after 1950s (1)
- cases of rabies, plateau / level off (from 1950s / 1960s) (1)
- correlation between rabies cases in dogs and humans / rabies cases in dogs and humans fall at same times / eq (1)
- human rabies cases fluctuate / there are still some cases of human rabies / human rabies has not been eradicated / eq (1)
- (most) human rabies must have been from dogs / vaccinated dogs do not pass rabies on to humans / eq (1)
- some human rabies cases from other animal species / wild dogs / wild animals / eq (1)
- data is reliable as it is for a long time / large area / whole country / eq (1)
6 (b)(iii) A description that makes reference to four of the following points:
- ribosomes (bind to RNA) (1)
- translation occurs (1)
- triplet / codon on RNA codes for an amino acid / eq (1)
- tRNA binds to RNA / anticodon binds to codon / eq (1)
- tRNA brings amino acids / eq (1)
- amino acids are joined together (to make protein) / forms a chain of amino acids / peptide bonds form / polypeptide forms / eq (1)
