**2021-May-Physics_paper_2__TZ1_HL – All Questions with detailed solution**### Q.1(a).2021-May-Physics_paper_2__TZ1_HL

**Topic: Motion**

**Given: Two players are playing table tennis. Player $A$ hits the ball at a height of $0.24 \mathrm{~m}$ above the edge of the table, measured from the top of the table to the bottom of the ball. The initial speed of the ball is $12.0 \mathrm{~ms}^{-1}$ horizontally. Assume that air resistance is negligible.**

**Show that: the time taken for the ball to reach the surface of the table is about $0.2 \mathrm{~s}$.**

**Answer/Explanation**

**Solution:**

We can solve this problem using kinematic equations. The motion of the ball can be divided into two parts: horizontal motion with constant velocity and vertical motion under constant acceleration due to gravity.

The initial vertical velocity of the ball is zero, and the acceleration due to gravity is $g = 9.8 \mathrm{~ms}^{-2}$ downwards. We can use the following kinematic equation to find the time taken for the ball to reach the surface of the table:

$$

y=y_0+v_{0, y} t+\frac{1}{2} a_y t^2

$$

where $y$ is the final vertical position of the ball (equal to the height of the table), $y_0$ is the initial vertical position of the ball (equal to the height above the table), $v_{0,y}$ is the initial vertical velocity of the ball (zero in this case), $a_y$ is the vertical acceleration of the ball due to gravity, and $t$ is the time taken for the ball to reach the table.

Substituting the given values, we have:

$$

0.24 \mathrm{~m}=0+0 \times t+\frac{1}{2} \times 9.8 \mathrm{~ms}^{-2} \times t^2

$$

Simplifying and solving for $t$, we get:

$$

\colorbox{yellow}{$t=\sqrt{\frac{2 \times 0.24 \mathrm{~m}}{9.8 \mathrm{~ms}^{-2}}} \approx 0.2 \mathrm{~s}$}

$$

### Q.1(b).2021-May-Physics_paper_2__TZ1_HL

**Topic: Motion**

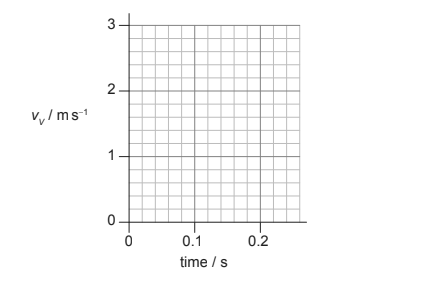

** Sketch: on the axes, a graph showing the variation with time of the vertical component of velocity $v_v$ of the ball until it reaches the table surface. Take $g$ to be $+10 \mathrm{~ms}^{-2}$.**

**Answer/Explanation**

**Solution:**

To sketch the graph of the vertical component of velocity $v_v$ of the ball as a function of time, we can use the kinematic equation:

$$

v_y=v_{0, y}+a_y t

$$

where $v_y$ is the vertical velocity of the ball at time $t$, $v_{0,y}$ is the initial vertical velocity of the ball (zero in this case), $a_y$ is the vertical acceleration due to gravity, and $t$ is the time elapsed since the ball was hit.

Substituting $a_y = +10 \mathrm{~ms}^{-2}$ (since $g$ is positive in the upward direction), we get:

$$

v_y=0+10 \mathrm{~ms}^{-2} t

$$

This is a straight line with a positive slope of $9.8 \mathrm{~ms}^{-2}$, passing through the origin. The graph of $v_v$ versus $t$ will look like this:

### Q.1(c).2021-May-Physics_paper_2__TZ1_HL

**Topic: Motion**

**Given: The net is stretched across the middle of the table. The table has a length of $2.74 \mathrm{~m}$ and the net has a height of $15.0 \mathrm{~cm}$.**

**Show that: the ball will go over the net.**

**Answer/Explanation**

### Q.1[(d) (i)].2021-May-Physics_paper_2__TZ1_HL

**Topic: Work, energy and power**

**Given: The ball bounces and then reaches a peak height of $0.18 \mathrm{~m}$ above the table with a horizontal speed of $10.5 \mathrm{~m} \mathrm{~s}^{-1}$. The mass of the ball is $2.7 \mathrm{~g}$.**

**Calculate: the kinetic energy of the ball immediately after the bounce.**

**Answer/Explanation**

**Solution:**

We can use the conservation of energy to determine the vertical component of the velocity of the ball when it reaches a peak height of $0.18 \mathrm{~m}$ above the table.

At the peak height, the ball’s kinetic energy is zero since it has come to a momentary stop, so all of the energy is in the form of potential energy due to gravity. Using the conservation of energy equation:

$$

P E_{\text {initial }}+K E_{\text {initial }}=P E_{\text {final }}+K E_{\text {final }}

$$

where $PE$ is the potential energy due to gravity and $KE$ is the kinetic energy, we can solve for the final vertical velocity $v_{y,\mathrm{final}}$:

$$$m g h_{\text {final }}=\frac{1}{2} m v_{\text {final }}^2 \Longrightarrow v_{y, \text { final }}=\sqrt{2 g h_{\text {final }}}$$$

where $m$ is the mass of the ball, $g$ is the acceleration due to gravity, $h_{\mathrm{final}}$ is the peak height of the ball above the table, and we have used the fact that the horizontal component of the velocity does not affect the vertical motion.

Substituting the given values, we get:

$$

v_{y, \text { final }}=\sqrt{2 \times 10 \mathrm{~m} \mathrm{~s}^{-2} \times 0.18 \mathrm{~m}} \approx 1.88 \mathrm{~m} \mathrm{~s}^{-1}

$$

$$

v_{x, \text { final }}= 10.5 \mathrm{~m} \mathrm{~s}^{-1}\quad\text{(given)}

$$

$$

v=\sqrt{10.5^2+1.88^2} =10.67 \mathrm{ms}^{-1}

$$

Using the formula for kinetic energy, $KE = \frac{1}{2}mv^2$, where $m$ is the mass of the ball and $v$ is its speed, we can calculate the kinetic energy of the ball immediately after the bounce:

$$

\colorbox{yellow}{$\mathrm{KE}=\frac{1}{2} \times 0.0027 \times 10.67^2 \approx 0.15 \mathrm{~J}$}

### Q.1[(d) (ii].2021-May-Physics_paper_2__TZ1_HL

**Topic: Momentum and impulse**

**Given: Player B intercepts the ball when it is at its peak height. Player B holds a paddle (racket) stationary and vertical. The ball is in contact with the paddle for $0.010 \mathrm{~s}$. Assume the collision is elastic.**

** **

**Calculate: the average force exerted by the ball on the paddle. State your answer to an appropriate number of significant figures.**

**Answer/Explanation**

**Solution:**

we can use the definition of average force $F_{\mathrm{avg}} = \frac{\Delta p}{\Delta t}$, where $\Delta p$ is the change in momentum of the ball and $\Delta t$ is the duration of the collision.

After the collision, the ball rebounds with the same speed and direction but with a momentum of $p_{\mathrm{final}} = -mv$, where the negative sign indicates a reversal of the direction of the momentum due to the collision with the paddle. [$\text{Right direction} \rightarrow \text{positive}$]

The change in momentum of the ball is:

$$

\Delta p=p_{\text {final }}-p_{\text {initial }}=(m v)-(-m v)=2 m v\quad\text{(v= 10.5 m/s )}

$$

$2mv=2\times 0.0027\times 10.5=0.0567$

$

\colorbox{yellow}{$F_{\mathrm{avg}}=\frac{\Delta p}{\Delta t}=\frac{2 m v}{0.010 \mathrm{~s}} \approx 5.76 \mathrm{~N}$}

### Q.2(a).2021-May-Physics_paper_2__TZ1_HL

**Topic: Circular motion **

**Given: A planet is in a circular orbit around a star. The speed of the planet is constant. The following data are given:**

**$\text{Mass of planet}$ $=8.0 \times 10^{24} \mathrm{~kg}$****$\text{Mass of star}$ $=3.2 \times 10^{30} \mathrm{~kg}$****$\text{Distance from the star to the planet R}$ $=4.4 \times 10^{10} \mathrm{~m}$.**

**Explain: why a centripetal force is needed for the planet to be in a circular orbit.**

**Answer/Explanation**

**Solution:**
