3.9.A.1  Separation of Liquid Solutions: Chromatography and Distillation:

1. Properties of Solutions:

2. Chromatography:

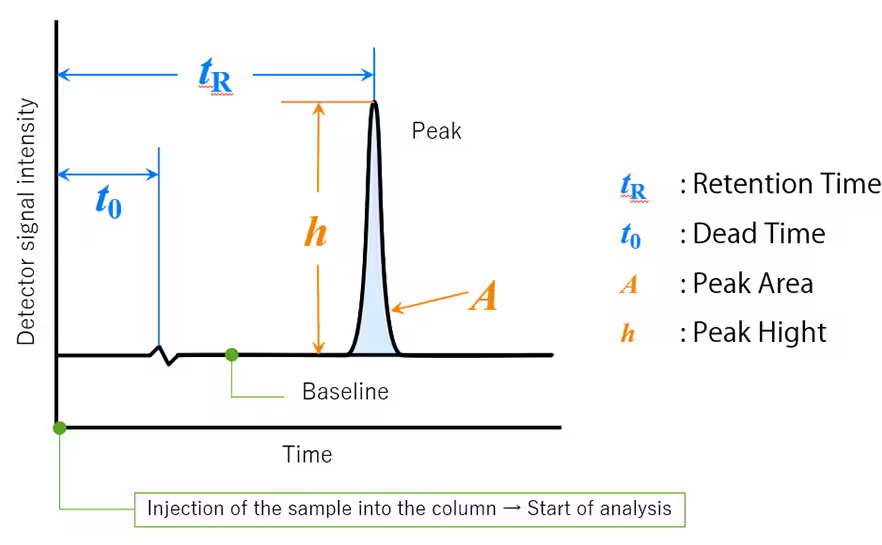

Chromatography is a technique used to separate components of a mixture based on their differential interactions with two phases: the stationary phase and the mobile phase.

Principle:

• The separation principle in chromatography is based on the fact that different components of a mixture interact with the stationary phase (the phase that remains fixed) and the mobile phase (the phase that moves) to different extents.
• Components that interact more strongly with the stationary phase move slower, while those interacting more weakly with the stationary phase move faster through the system.
• The result is the separation of components as they travel at different rates.

Type of Chromatography	Stationary Phase	Mobile Phase	Application
Paper Chromatography	Absorbent paper (e.g., cellulose)	Solvent (capillary action)	Separation of pigments, amino acids, small organic compounds
Thin-Layer Chromatography	Thin layer of adsorbent (e.g., silica gel)	Solvent (capillary action)	Quick analysis, purity testing, compound identification
Column Chromatography	Solid adsorbent (e.g., silica gel or alumina)	Liquid or gas solvent	Separation and purification of larger quantities of compounds

3. Distillation:

Distillation is a technique used to separate mixtures based on the differences in their boiling points. It relies on the principle that different components in a mixture will have different tendencies to vaporize when heat is applied, and they can be separated as they condense back into liquid form.

Principle:

• The basic principle of distillation is that when a mixture is heated, the component with the lower boiling point will vaporize first. The vapor is then condensed into a liquid and collected separately from the rest of the mixture.
• This separation is influenced by the intermolecular forces in each component: substances with weaker intermolecular forces (like London dispersion forces in nonpolar molecules) tend to have lower boiling points, while those with stronger intermolecular forces (like hydrogen bonds in water) have higher boiling points.

Types of Distillation:

i. Simple Distillation:

1. • Principle: Simple distillation is used to separate components with significantly different boiling points (typically greater than 50°C difference).
   • Process: The mixture is heated until the component with the lower boiling point vaporizes. The vapor is then cooled and condensed into a separate container. The remaining liquid (with the higher boiling point) stays behind.
   • Applications: Used for separating liquids from non-volatile impurities or for separating liquids with significantly different boiling points (e.g., separating water from ethanol).

ii. Fractional Distillation:

• • Principle: Fractional distillation is used when the boiling points of the components in the mixture are closer together (less than 50°C difference). It involves a more complex process of repeated vaporization and condensation.
  • Process: The mixture is heated in a column that contains packing materials (such as glass beads or plates) that provide a large surface area for multiple condensation and vaporization cycles. This allows for better separation of the components based on their boiling points.
  • Applications: Used for separating mixtures of liquids with similar boiling points, such as in the refining of crude oil or the separation of different alcohols in a distillation column.

4. Intermolecular Forces:

The intermolecular forces (IMFs) between molecules significantly impact the separation of components in distillation, as they determine the boiling points of substances. These forces influence how easily molecules transition from liquid to vapor, and in turn, how effectively distillation methods can separate them.

i. Hydrogen Bonding:

• Hydrogen bonding is a strong intermolecular force that occurs when hydrogen is bonded to highly electronegative atoms, such as oxygen, nitrogen, or fluorine.
• Impact on Boiling Point: Substances with hydrogen bonding (like water, alcohols, or carboxylic acids) tend to have higher boiling points because the hydrogen bonds between molecules require more energy to break. This makes them less volatile.
• Separation in Distillation:
  • Simple Distillation: If a mixture includes a substance with hydrogen bonding, it will be less volatile and will evaporate more slowly compared to components without hydrogen bonding. For example, in a mixture of ethanol (with hydrogen bonding) and water, ethanol would evaporate first.
  • Fractional Distillation: In mixtures with hydrogen-bonded molecules, fractional distillation helps separate components more effectively because the column’s multiple condensation and vaporization steps allow the stronger hydrogen bonds to be overcome more gradually. Water and alcohols, for example, can be separated more precisely.

ii. Van der Waals Forces (London Dispersion Forces):

• Van der Waals forces (or London dispersion forces) are the weakest type of intermolecular force. These forces arise due to temporary dipoles in molecules, typically in nonpolar substances.
• Impact on Boiling Point: Molecules with van der Waals forces (e.g., hydrocarbons like methane, butane, or hexane) tend to have lower boiling points compared to molecules with hydrogen bonding. This is because the forces holding the molecules together are weaker, so less energy is required to transition them from liquid to vapor.
• Separation in Distillation:
  • Simple Distillation: In a mixture containing both nonpolar molecules (with van der Waals forces) and polar molecules (with hydrogen bonding), the nonpolar molecules will typically vaporize first because they have lower boiling points. For example, in a mixture of hexane and water, hexane will distill over first due to its weaker intermolecular forces.
  • Fractional Distillation: For mixtures of substances with van der Waals forces, fractional distillation is highly effective because even small differences in boiling points can be exploited. A mixture of alkanes (e.g., in petroleum refining) is separated by the column’s fractional condensation cycles, as their boiling points vary slightly due to differences in molecular size and shape.

Example Mixtures:

1. Ethanol and Water (Hydrogen Bonding):

   • Simple distillation will separate ethanol (lower boiling point) from water (higher boiling point).
   • Fractional distillation will better separate ethanol from water if both are in a mixture with close boiling points (e.g., in fermentation products).

2. Hexane and Water (Van der Waals vs. Hydrogen Bonding):

   • In simple distillation, hexane (nonpolar, with van der Waals forces) will evaporate first, while water (polar, with hydrogen bonds) will remain behind.
   • In fractional distillation, hexane and water can be separated effectively, even if their boiling points are somewhat close, due to repeated condensation and evaporation cycles.
