Question

(i) Draw the stereoisomers of butan-2-ol using wedge-dash type representations. [1]

(ii) Outline how two enantiomers can be distinguished using a polarimeter. [2]

Answer/Explanation

Ans

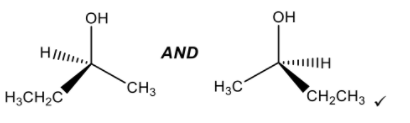

i

ii

enantiomers rotate «plane of» plane-polarized light

equal degrees/angles/amounts AND opposite directions/rotation  Accept “optical isomers” for “enantiomers”.

Question

Existence of isomers leads to diversity of organic compounds.

(a)     Describe what is meant by the term stereoisomers.

(b)     1,3-dichlorocyclobutane exists as geometrical isomers, a form of stereoisomers.

(i)     Draw and name the two geometrical isomers of 1,3-dichlorocyclobutane.

(ii)     Identify the isomer with the higher boiling point and explain your reasoning.

Answer/Explanation

Markscheme

(a)     compounds with same structural formula;

Do not allow “same molecular or chemical formula”.

but different arrangement of atoms in space/spatial arrangement;

(b)     (i)

M10/4/CHEMI/HP2/ENG/TZ2/05.b.i_1/M ;

Cis(-1,3-dichlorocyclobutane)

M10/4/CHEMI/HP2/ENG/TZ2/05.b.i_2/M ;

Trans(-1,3-dichlorocyclobutane)

Need clear cis/trans structure and name for each mark.

(ii)     cis (higher boiling point);

cis (more) polar / trans non-polar/less polar;

cis experiences stronger (permanent) dipole-dipole interaction / trans experiences no/(much) less dipole-dipole interaction;

Do not accept just strong forces without reference to dipole-dipole interaction.

Examiners report

Only a handful of candidates gave the correct definition of the term stereoisomers. Some stated that these had the same chemical or molecular formula with no reference to structural formula. Stereoisomers are compounds with the same structural formula, but with a different arrangement of the atoms in space. A majority of candidates drew correct formulas of the two geometrical isomers of 1,3-dichlorocyclobutane, but some missed the names of the compounds. Even when the notion of cis and trans seemed to be generally understood, the poor representation of molecules proved challenging for some where difference between the 2 isomers drawn was not at all clear.

A few candidates did not realise that the compound was cyclobutane and not straight chain butane. Nomenclature also emerged as a hindrance in the correct grasp of the topic with some candidates showing structures that had little resemblance to the names.

A good number of candidates identified the cis isomer as having the higher boiling point because it is more polar and experiences stronger dipole-dipole interactions between the molecules. Many candidates failed to provide enough details for the type of intermolecular interaction. A number of candidates incorrectly identified the trans as the polar molecule with the higher melting. Quite a few of the weaker candidates used arguments in terms of packing of the molecule and failed to score any mark.

Question

Alkenes, alcohols and esters are three families of organic compounds with many commercial uses.

An ester which gives apples their characteristic smell contains C, H and O. When \(3.00 \times {10^{ – 3}}{\text{ g}}\) of this ester were completely combusted, \(6.93 \times {10^{ – 3}}{\text{ g}}\) of \({\text{C}}{{\text{O}}_{\text{2}}}\) and \(2.83 \times {10^{ – 3}}{\text{ g}}\) of \({{\text{H}}_{\text{2}}}{\text{O}}\) were produced.

State what is meant by the term stereoisomers.[1]

a.i.

Determine the empirical formula of the ester, showing your working.[4]

b.i.

The molar mass of the ester is \({\text{116.18 g}}\,{\text{mo}}{{\text{l}}^{ – 1}}\). Determine its molecular formula.[1]

b.ii.

2-bromobutane is optically active. Draw the two enantiomers of 2-bromobutane and compare their physical and chemical properties.[2]

c.iii.
Answer/Explanation

Markscheme

compounds with same structural/displayed formula but different arrangements of atoms (in space);

Do not accept different 3D structures.

Do not allow similar instead of same.

a.i.

Mass of C: \(\frac{{6.93 \times {{10}^{ – 3}}12.01}}{{44.01}} = 1.89 \times {10^{ – 3}}/0.00189{\text{ (g)}}\) and

Mass of H: \(\frac{{2 \times 1.01 \times 2.83 \times {{10}^{ – 3}}}}{{18.02}} = 3.17 \times {10^{ – 4}}/0.000317{\text{ (g)}}\);

Mass of O: \(3.00 \times {10^{ – 3}} – 1.89 \times {10^{ – 3}} – 3.17 \times {10^{ – 4}} = 7.93 \times {10^{ – 4}}/0.000793{\text{ (g)}}\);

\({n_C}:{\text{ }}\frac{{1.89 \times {{10}^{ – 3}}}}{{12.01}} = 1.57 \times {10^{ – 4}}/0.000157{\text{ (mol)}}\) and

\({n_H}:{\text{ }}\frac{{3.17 \times {{10}^{ – 4}}}}{{1.01}} = 3.14 \times {10^{ – 4}}/0.000314{\text{ (mol)}}\) and

\({n_O}:{\text{ }}\frac{{7.93 \times {{10}^{ – 4}}}}{{16.00}} = 4.96 \times {10^{ – 5}}/0.0000496{\text{ (mol)}}\);

Empirical formula \( = {{\text{C}}_3}{{\text{H}}_6}{\text{O}}\);

Allow C19H38O6.

Award [4] for correct final answer if alternative working is used.

Award [1 max] for C3H6O/C19H38O6 without working.

b.i.

\({{\text{C}}_6}{{\text{H}}_{12}}{{\text{O}}_2}\);

b.ii.

Accept either one of the following two E2 mechanisms:

N12/4/CHEMI/HP2/ENG/TZ0/07.c.iii_1/M

OR

N12/4/CHEMI/HP2/ENG/TZ0/07.c.iii_2/M

curly arrow going from lone pair/negative charge on O in \({\text{H}}{{\text{O}}^ – }\) to H on \(\beta \)–C;

Do not allow curly arrow originating on H in HO.

curly arrow going from CH bond to form C=C bond;

curly arrow showing Br leaving;

formation of organic product \({{\text{H}}_2}{\text{C}}\)=\({\text{CH(C}}{{\text{H}}_2}{\text{C}}{{\text{H}}_3}{\text{)}}/{\text{H(C}}{{\text{H}}_3}{\text{)C}}\)=\({\text{CH(C}}{{\text{H}}_3}{\text{)}}\) and

\({\text{B}}{{\text{r}}^ – }\) and \({{\text{H}}_2}{\text{O}}\);

For this reaction since a strong negatively charged base, HOis used, resultant mechanism will be E2. However, accept the corresponding E1 mechanism.

If E1, allow the following mechanism:

N12/4/CHEMI/HP2/ENG/TZ0/07.c.iii_3/M

OR

N12/4/CHEMI/HP2/ENG/TZ0/07.c.iii_4/M

curly arrow showing Br leaving;

representation of secondary carbocation;

curly arrow going from lone pair on O in \({{\text{H}}_2}{\text{O}}\) to H on C adjacent to \({{\text{C}}^ + }\) and curly arrow going from CH bond to form C=C bond;

formation of organic product \({\text{(}}{{\text{H}}_3}{\text{C)CH}}\)=\({\text{CH(C}}{{\text{H}}_3}{\text{)}}\) / \({{\text{H}}_2}{\text{C}}\)=\({\text{CH(C}}{{\text{H}}_2}{\text{C}}{{\text{H}}_3}{\text{)}}\) and \({\text{B}}{{\text{r}}^ – }\) and \({{\text{H}}_3}{{\text{O}}^ + }\);

For E1 HOis an alternative to H2O, but if used, H2O forms instead of H3O+.

c.iii.

Examiners report

This was the least popular question in Section B. In part (a) (i), some candidates gave a definition of structural isomers instead of stereoisomers.

a.i.

Part (b) (i) proved to be very challenging for candidates. A large majority of candidates in fact did not know how to even commence the problem. There were a number of G2 comments all of who stated that it would have been better if the ratios of the amounts of C, H and O were in fact closer to whole number ratios.

b.i.

In part (ii) of the question the molar mass of the ester was given as \({\text{116.18 g}}\,{\text{mo}}{{\text{l}}^{ – 1}}\), which meant that taking the experimental data given in (b) (i), the empirical formula is in fact \({{\text{C}}_{\text{3}}}{{\text{H}}_{\text{6}}}{\text{O}}\), with the associated molecular formula of \({{\text{C}}_{\text{6}}}{{\text{H}}_{{\text{12}}}}{{\text{O}}_{\text{2}}}\). The better students realised this and typically gave an answer of \({{\text{C}}_{\text{3}}}{{\text{H}}_{\text{6}}}{\text{O}}\). However, a very small minority did in fact use a scaling factor to suggest an empirical formula of \({{\text{C}}_{{\text{19}}}}{{\text{H}}_{{\text{38}}}}{{\text{O}}_{\text{6}}}\), which was also accepted. In general however for this question, candidates tended to score either scored full marks for parts (i) and (ii), or zero.

b.ii.

In part (iii), some candidates did not show the 3D nature of the two enantiomers which was necessary for M1 and only gave 2D representations. It was encouraging to see a greater percentage of candidates however using tapered (wedge/dash) representations. For M2, many did not mention the fact that the two optical isomers rotate the plane of polarized light in opposite directions. Some did not state plane.

c.iii.
