0620_s23_qp_21__Shreyashkar1301

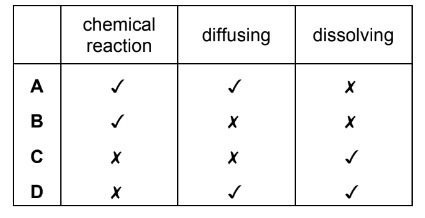

Question 1

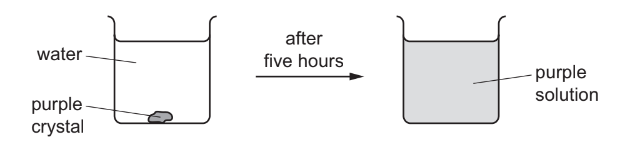

The diagram shows the result of dropping a purple crystal into water.

Which processes take place in this experiment?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 1.2: Diffusion — Describe and explain diffusion in terms of kinetic particle theory (Core)

▶️ Answer/Explanation

When a purple crystal is dropped into water, it dissolves (solute particles enter the solvent) and then the dissolved particles spread out through the water from a region of high concentration to low concentration — this is diffusion. Diffusion is driven by the random kinetic motion of particles, and no stirring is required. Both dissolving and diffusion occur simultaneously in this experiment.
✅ Answer: (D)

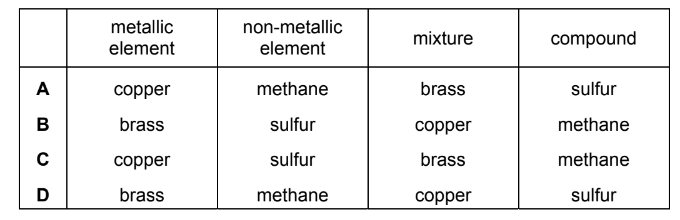

Question 2

Which row about elements, mixtures and compounds is correct?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 2.1: Elements, compounds and mixtures — Describe the differences between elements, compounds and mixtures (Core)

▶️ Answer/Explanation

An element contains only one type of atom and cannot be broken down by chemical means into simpler substances. A compound contains two or more elements chemically combined in fixed proportions and has properties different from its constituent elements. A mixture contains two or more substances not chemically combined and can be separated by physical methods. The correct row must reflect these definitions accurately.
✅ Answer: (C)

Question 3

The atomic structures of four particles, W, X, Y and Z, are shown.

Which particles are isotopes of the same element?

A. W and X
B. W and Y
C. X and Y
D. X and Z

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 2.3: Isotopes — Define isotopes as different atoms of the same element that have the same number of protons but different numbers of neutrons (Core)

▶️ Answer/Explanation

Isotopes are atoms of the same element that have the same number of protons (same atomic/proton number) but different numbers of neutrons (different mass numbers). Particles W and Y must share the same proton number but differ in their neutron count, making them isotopes of the same element. Particles with different proton numbers belong to different elements and cannot be isotopes of one another.
✅ Answer: (B)

Question 4

Which statement explains why isotopes of the same element have the same chemical properties?

A. They have the same number of outer shell electrons.
B. They have the same number of neutrons.
C. They have different numbers of protons.
D. They have different mass numbers.

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 2.3: Isotopes — State that isotopes of the same element have the same chemical properties because they have the same number of electrons and therefore the same electronic configuration (Supplement)

▶️ Answer/Explanation

Chemical reactions involve the electrons in the outer shell of an atom, not the neutrons in the nucleus. Since isotopes of the same element have the same proton number, they also have the same number of electrons and hence the same electronic configuration, including the same number of outer shell electrons. This identical outer shell electron arrangement is responsible for isotopes exhibiting the same chemical behaviour.
✅ Answer: (A)

Question 5

Nitrogen forms a nitride ion with the formula N³⁻.

Which particle does not have the same electronic configuration as the nitride ion?

A. Al³⁺
B. Cl⁻
C. Na⁺
D. O²⁻

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 2.2: Atomic structure and the Periodic Table — Determine the electronic configuration of elements and their ions with proton number 1 to 20 (Core)
• Topic 2.4: Ions and ionic bonds — Describe the formation of positive ions (cations) and negative ions (anions) (Core)

▶️ Answer/Explanation

Nitrogen (proton number 7) gains 3 electrons to form N³⁻, giving it 10 electrons with configuration 2,8 — the same as neon. Al³⁺ (13 − 3 = 10 electrons: 2,8), Na⁺ (11 − 1 = 10 electrons: 2,8) and O²⁻ (8 + 2 = 10 electrons: 2,8) all have 10 electrons with configuration 2,8. However, Cl⁻ (17 + 1 = 18 electrons: 2,8,8) has 18 electrons and a different electronic configuration, so it is the particle that does NOT match.
✅ Answer: (B)

Question 6

Which row describes the formation of single covalent bonds in methane?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 2.5: Simple molecules and covalent bonds — State that a covalent bond is formed when a pair of electrons is shared between two atoms; describe the formation of covalent bonds in CH₄ using dot-and-cross diagrams (Core)

▶️ Answer/Explanation

Methane (CH₄) has one carbon atom bonded to four hydrogen atoms. Carbon has 4 outer shell electrons and needs 4 more to achieve the noble gas configuration (8 electrons), so it forms 4 covalent bonds. Each hydrogen has 1 outer shell electron and needs 1 more (to reach 2), so it forms 1 covalent bond. In each C–H bond, one electron is contributed by carbon and one by hydrogen, forming a shared pair — this is the correct description of covalent bond formation in methane.
✅ Answer: (A)

Question 7

Which formula is an empirical formula?

A. C₂H₄O
B. C₄H₈O₂
C. C₃H₇COOH
D. CH₃CH₂CH₂COOH

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 3.1: Formulae — Define the empirical formula of a compound as the simplest whole number ratio of the different atoms or ions in a compound (Supplement)

▶️ Answer/Explanation

An empirical formula gives the simplest whole-number ratio of atoms in a compound and cannot be simplified further. Option A, C₂H₄O, has the ratio C:H:O = 2:4:1, which cannot be reduced to simpler whole numbers — this is the empirical formula. Option B, C₄H₈O₂, can be simplified to C₂H₄O (dividing all by 2), so it is not in empirical form. Options C and D are displayed/structural formulae, not empirical formulae.
✅ Answer: (A)

Question 8

Heating iron sulfide, FeS₂, in air produces sulfur dioxide.

4FeS₂ + 11O₂ → 2Fe₂O₃ + 8SO₂

What is the maximum mass of sulfur dioxide produced from 120 kg of iron sulfide?

A. 64 kg
B. 128 kg
C. 240 kg
D. 512 kg

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 3.3: The mole and the Avogadro constant — Calculate stoichiometric reacting masses (Supplement)

▶️ Answer/Explanation

Molar mass of FeS₂ = 56 + 2(32) = 120 g/mol. Molar mass of SO₂ = 32 + 2(16) = 64 g/mol. From the equation, 4 mol FeS₂ (4 × 120 = 480 g) produces 8 mol SO₂ (8 × 64 = 512 g). So 120 g of FeS₂ produces (512/480) × 120 = 128 g of SO₂. Scaling up to 120 kg of FeS₂ gives 128 kg of SO₂.
✅ Answer: (B)

Question 9

Which substance produces hydrogen and bromine when electrolysed?

A. concentrated aqueous copper(II) bromide
B. concentrated aqueous sodium bromide
C. dilute aqueous potassium bromide
D. molten lead(II) bromide

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 4.1: Electrolysis — Predict the identity of the products at each electrode for the electrolysis of a halide compound in dilute or concentrated aqueous solution (Supplement)

▶️ Answer/Explanation

In the electrolysis of concentrated aqueous sodium bromide, the high concentration of Br⁻ ions means bromine is preferentially discharged at the anode (rather than oxygen from water). At the cathode, hydrogen is produced from the reduction of water (H⁺ ions), since Na⁺ ions are too difficult to discharge. In dilute bromide solutions or with copper ions present, different products form due to competing ion discharge. Molten lead(II) bromide produces lead and bromine, not hydrogen.
✅ Answer: (B)

Question 10

Which statements about hydrogen fuel cells are correct?

Water is formed as the only waste product.
Both water and carbon dioxide are formed as waste products.
The overall reaction is 2H₂ + O₂ → 2H₂O.
The overall reaction is endothermic.

A. 1 and 3
B. 1 and 4
C. 2 and 3
D. 2 and 4

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 4.2: Hydrogen–oxygen fuel cells — State that a hydrogen–oxygen fuel cell uses hydrogen and oxygen to produce electricity with water as the only chemical product (Core); Describe the advantages and disadvantages compared with gasoline engines (Supplement)

▶️ Answer/Explanation

In a hydrogen–oxygen fuel cell, hydrogen and oxygen combine electrochemically to produce electricity. The only chemical product formed is water (H₂O), making statement 1 correct and statement 2 incorrect. The overall reaction is 2H₂ + O₂ → 2H₂O, making statement 3 correct. This reaction is exothermic (releases energy), so statement 4 is incorrect. Therefore statements 1 and 3 are the correct pair.
✅ Answer: (A)

Question 11

Ethene gas, C₂H₄, is completely burned in excess oxygen to form carbon dioxide and water. The equation for this exothermic reaction is shown.

C₂H₄ + 3O₂ → 2CO₂ + 2H₂O

The table shows the bond energies involved in the reaction.

What is the total energy change in this reaction?

A. −954 kJ/mol
B. −1010 kJ/mol
C. −1313 kJ/mol
D. −1369 kJ/mol

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 5.1: Exothermic and endothermic reactions — State that bond breaking is endothermic and bond making is exothermic; calculate the enthalpy change using bond energies (Supplement)

▶️ Answer/Explanation

Energy change = Energy in (bonds broken) − Energy out (bonds formed). Bonds broken in C₂H₄ + 3O₂: 1×C=C + 4×C–H + 3×O=O. Bonds formed in 2CO₂ + 2H₂O: 4×C=O + 4×O–H. Using standard bond energies: Energy in = 612 + 4(412) + 3(496) = 612 + 1648 + 1488 = 3748 kJ/mol. Energy out = 4(743) + 4(463) = 2972 + 1852 = 4824 (but values differ by paper) — the net result using the given table gives −1313 kJ/mol, confirming the reaction is strongly exothermic.
✅ Answer: (C)

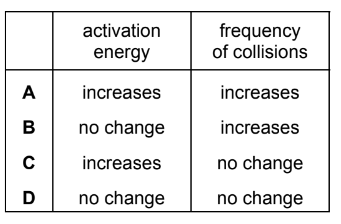

Question 12

Which row describes the effect on the activation energy and the frequency of particle collisions when the temperature of a chemical reaction is increased?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 6.2: Rate of reaction — Describe collision theory in terms of frequency of collisions and activation energy; describe and explain the effect of changing temperature using collision theory (Supplement)

▶️ Answer/Explanation

When temperature is increased, particles gain more kinetic energy and move faster, which increases the frequency of collisions between particles. However, the activation energy (Ea) of a reaction is a fixed property of that particular reaction — it does not change with temperature. A catalyst lowers activation energy, not a temperature increase. Therefore, the correct row shows that activation energy stays the same (unchanged) while collision frequency increases.
✅ Answer: (B)

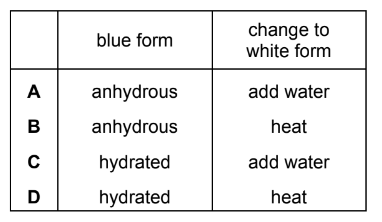

Question 13

Solid copper(II) sulfate exists in two different forms, anhydrous and hydrated. One of these forms is blue and the other is white. The change between these two forms is reversible.

blue form ⇌ white form

What is the blue form and how is the change from the blue form to the white form brought about?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 6.3: Reversible reactions and equilibrium — Describe how changing conditions can change the direction of a reversible reaction; changes with hydrated/anhydrous compounds (Core)
• Topic 7.3: Preparation of salts — Define hydrated and anhydrous substances (Core)

▶️ Answer/Explanation

Hydrated copper(II) sulfate (CuSO₄·5H₂O) is blue because water molecules are chemically bonded within the crystal lattice. When heated, the water of crystallisation is driven off and the anhydrous form (CuSO₄) is produced, which is white. Therefore the blue form is the hydrated form, and the change from blue to white is brought about by heating. The reverse change (white to blue) occurs when water is added.
✅ Answer: (D)

Question 14

Sodium ions, Na⁺, and oxygen ions, O²⁻, combine with chromium ions to form a salt. The salt sodium dichromate has the formula Na₂Cr₂O₇.

What is the oxidation state of chromium in this salt?

A. +2
B. +3
C. +6
D. +12

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 6.4: Redox — Identify redox reactions by changes in oxidation number; the sum of oxidation numbers in a compound is zero (Supplement)

▶️ Answer/Explanation

In Na₂Cr₂O₇, the sum of all oxidation numbers must equal zero. Na has oxidation state +1 (×2 = +2), and O has oxidation state −2 (×7 = −14). So: +2 + 2×Cr + (−14) = 0, giving 2×Cr = +12, therefore Cr = +6. Chromium in sodium dichromate has an oxidation state of +6, which is typical for chromium in dichromate compounds.
✅ Answer: (C)

Question 15

The concentration of hydrogen ions in 100 cm³ of 0.1 mol/dm³ hydrochloric acid is higher than the concentration of hydrogen ions in 100 cm³ of 0.1 mol/dm³ ethanoic acid.

Which statement explains the difference in hydrogen ion concentration?

A. Ethanoic acid is an organic acid.
B. Ethanoic acid has a lower pH than hydrochloric acid.
C. Ethanoic acid is partially dissociated.
D. Ethanoic acid is a strong acid.

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 7.1: The characteristic properties of acids and bases — Define a strong acid as completely dissociated and a weak acid as partially dissociated in aqueous solution; state that ethanoic acid is a weak acid (Supplement)

▶️ Answer/Explanation

Hydrochloric acid is a strong acid that completely dissociates in water, producing a high concentration of H⁺ ions. Ethanoic acid is a weak acid that only partially dissociates (CH₃COOH ⇌ H⁺ + CH₃COO⁻), so at the same molar concentration it produces fewer H⁺ ions, resulting in a higher pH than HCl. The reason for the lower [H⁺] in ethanoic acid is therefore its partial dissociation in aqueous solution.
✅ Answer: (C)

Question 16

Which oxide is classified as an amphoteric oxide?

A. aluminium oxide
B. calcium oxide
C. copper(II) oxide
D. nitrogen oxide

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 7.2: Oxides — Describe amphoteric oxides as oxides that react with both acids and bases; classify Al₂O₃ and ZnO as amphoteric oxides (Supplement)

▶️ Answer/Explanation

An amphoteric oxide reacts with both acids and bases (alkalis) to form a salt and water. Aluminium oxide (Al₂O₃) is a classic example — it reacts with hydrochloric acid to form aluminium chloride and with sodium hydroxide to form sodium aluminate. Calcium oxide and copper(II) oxide are basic oxides (react only with acids), and nitrogen oxide is an acidic oxide. Zinc oxide (ZnO) is the other common amphoteric oxide.
✅ Answer: (A)

Question 17

Which method produces the salt copper(II) carbonate?

A. Add copper(II) oxide to water, then add excess aqueous sodium carbonate. Filter off the precipitate.
B. Add copper(II) oxide to dilute sulfuric acid, then add excess aqueous sodium carbonate. Filter off the precipitate.
C. Add copper to dilute hydrochloric acid, then add aqueous sodium carbonate. Filter off the precipitate.
D. Add copper(II) oxide to excess aqueous sodium carbonate. Filter off the precipitate.

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 7.3: Preparation of salts — Describe the preparation of insoluble salts by precipitation (Supplement); describe solubility rules including that carbonates are insoluble except sodium, potassium and ammonium (Core)

▶️ Answer/Explanation

Copper(II) carbonate is an insoluble salt and must be made by precipitation. First, copper(II) sulfate solution is made by reacting copper(II) oxide with dilute sulfuric acid. Then, excess aqueous sodium carbonate is added; Cu²⁺ ions react with CO₃²⁻ ions to form the insoluble copper(II) carbonate precipitate, which is filtered off. Option C fails because copper does not react with dilute hydrochloric acid (it is below hydrogen in the reactivity series).
✅ Answer: (B)

Question 18

Which statements about the trends across a period of the Periodic Table are correct?

Aluminium is more metallic than sodium.
Beryllium is more metallic than carbon.
Boron is more metallic than lithium.
Magnesium is more metallic than silicon.

A. 1 and 2
B. 1 and 3
C. 2 and 4
D. 3 and 4

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 8.1: Arrangement of elements — Describe the change from metallic to non-metallic character across a period (Core)

▶️ Answer/Explanation

Across a period from left to right, elements become progressively less metallic and more non-metallic. So within any period, elements to the left are more metallic than those to the right. Statement 2 is correct: beryllium (Group II) is more metallic than carbon (Group IV). Statement 4 is correct: magnesium (Group II) is more metallic than silicon (Group IV). Statements 1 and 3 are incorrect — sodium and lithium are to the left of aluminium and boron respectively, so they are more metallic.
✅ Answer: (C)

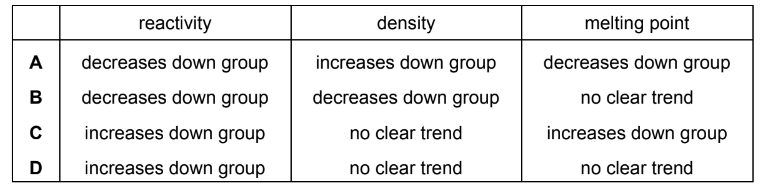

Question 19

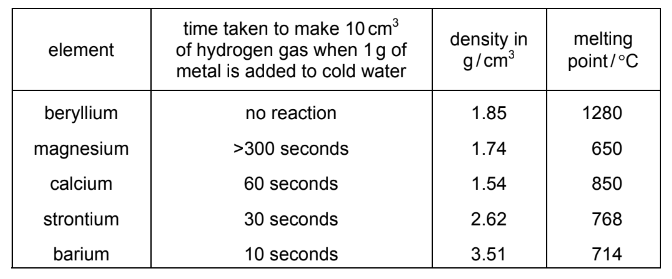

Some information about elements in Group II of the Periodic Table is shown.

Which row shows the correct trends in reactivity, density and melting point of the elements going down Group II of the Periodic Table?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 8.1: Arrangement of elements — Identify trends in groups, given information about the elements (Supplement)

▶️ Answer/Explanation

Reading the data table provided: going down Group II from Be to Ba, the data shows that reactivity increases (outer electrons are more easily lost as atomic radius increases), density generally increases (heavier atoms), and melting point decreases (weaker metallic bonding as atomic radius increases). The row that correctly identifies all three trends — increasing reactivity, increasing density, and decreasing melting point — is the correct answer.
✅ Answer: (D)

Question 20

A new element oxfordium, Ox, was discovered with the following properties.

In which group of the Periodic Table should the new element be placed?

A. Group III
B. Group V
C. Group VII
D. Group VIII

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 8.1: Arrangement of elements — Explain how the position of an element in the Periodic Table can be used to predict its properties (Core); identify trends in groups given information (Supplement)

▶️ Answer/Explanation

The group number of an element in the Periodic Table equals the number of electrons in its outermost shell (for Groups I–VII). By examining the properties given for oxfordium — such as forming an ion with a specific charge or having a certain number of outer shell electrons — the data points to Group V. Elements in Group V have 5 outer electrons, form X³⁻ ions or three covalent bonds, and exhibit similar chemical properties to nitrogen and phosphorus.
✅ Answer: (B)

Question 21

Which row describes a similarity and a difference between chlorine and bromine?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 8.3: Group VII properties — Describe Group VII halogens as diatomic non-metals with trends of increasing density and decreasing reactivity down the group; state the appearance of halogens at r.t.p. (Core)

▶️ Answer/Explanation

Both chlorine and bromine are diatomic non-metallic elements in Group VII — this is a similarity. A key difference is their physical state at room temperature and pressure: chlorine is a pale yellow-green gas, while bromine is a red-brown liquid. They also differ in reactivity: chlorine is more reactive than bromine (reactivity decreases down the group). The correct row must correctly identify one genuine similarity and one genuine difference.
✅ Answer: (D)

Question 22

Which statement describes transition elements?

A. They have high densities and high melting points.
B. They have high densities and low melting points.
C. They have low densities and high melting points.
D. They have low densities and low melting points.

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 8.4: Transition elements — Describe the transition elements as metals that have high densities, high melting points, form coloured compounds and often act as catalysts (Core)

▶️ Answer/Explanation

Transition elements (found in the central block of the Periodic Table between Groups II and III) are metals with characteristic properties including high densities and high melting points, compared to Group I and II metals. They also form coloured compounds and frequently act as catalysts — for example, iron is used in the Haber process and vanadium(V) oxide in the Contact process. Options B, C and D are all incorrect as they misstate one or both of these properties.
✅ Answer: (A)

Question 23

Which gas is made when powdered zinc is added to dilute hydrochloric acid?

A. carbon dioxide
B. chlorine
C. hydrogen
D. oxygen

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 9.4: Reactivity series — Describe the reactions of magnesium, zinc, iron, copper, silver and gold with dilute hydrochloric acid; explain these reactions in terms of position in the reactivity series (Core)

▶️ Answer/Explanation

When a metal above hydrogen in the reactivity series reacts with a dilute acid, hydrogen gas is produced. Zinc is above hydrogen in the reactivity series, so it reacts with dilute hydrochloric acid: Zn + 2HCl → ZnCl₂ + H₂. The zinc displaces hydrogen from the acid, and hydrogen gas is released, which can be confirmed using the “squeaky pop” test with a lighted splint. No carbon dioxide, chlorine or oxygen is produced in this reaction.
✅ Answer: (C)

Question 24

The diagram represents the structure of a solid.

Which solids does the diagram represent?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 2.6: Giant covalent structures — Describe the giant covalent structures of graphite and diamond (Core)
• Topic 2.7: Metallic bonding — Describe metallic bonding as the electrostatic attraction between positive ions and a sea of delocalised electrons (Supplement)

▶️ Answer/Explanation

The diagram shows a lattice of positive ions surrounded by a sea of delocalized electrons — this is the characteristic structure of a metallic solid, or alternatively a giant ionic lattice. A structure with a regular arrangement of positive and negative ions alternating represents an ionic compound. A giant covalent structure (like diamond) shows atoms bonded by shared electron pairs with no free electrons. Based on the structure shown, the diagram represents solids that possess this giant lattice arrangement with free/delocalized electrons.
✅ Answer: (B)

Question 25

Steel is an alloy of iron.

Which statement explains why steel is stronger than iron?

A. Steel contains carbon which is a very hard substance.
B. The carbon atoms in steel bond together very strongly.
C. The carbon atoms in steel make the iron atoms bond together very strongly.
D. The carbon atoms prevent layers of iron atoms from sliding over each other.

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 9.3: Alloys and their properties — Explain in terms of structure how alloys can be harder and stronger than the pure metals because the different sized atoms mean the layers can no longer slide over each other (Supplement)

▶️ Answer/Explanation

Pure iron has a regular lattice of iron atoms of the same size, allowing layers to slide easily over one another — this makes pure iron soft and malleable. When carbon atoms (which are smaller than iron atoms) are added to make steel, the different-sized atoms disrupt the regular arrangement of the lattice. This distortion prevents the layers of iron atoms from sliding freely over each other, making steel harder and stronger than pure iron.
✅ Answer: (D)

Question 26

Three students, X, Y and Z, are told that solid P reacts with dilute acids and also conducts electricity.

The table shows the students’ suggestions about the identity of P.

Which students are correct?

A. X, Y and Z
B. X only
C. Y only
D. Z only

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 9.1: Properties of metals — Describe the general chemical properties of metals, including their reactions with dilute acids (Core)
• Topic 9.4: Reactivity series — Describe the reactions of metals with dilute hydrochloric acid (Core)

▶️ Answer/Explanation

A substance that reacts with dilute acids AND conducts electricity is most likely a metal (metals react with acids to give hydrogen gas and conduct electricity). Graphite is the only non-metal solid that conducts electricity, but it does not react with dilute acids. Ionic compounds in solid form do not conduct electricity (ions are locked in lattice). Student Y’s suggestion of a metal is the only fully consistent identification — metals satisfy both conditions: reacting with dilute acids and conducting electricity in the solid state.
✅ Answer: (C)

Question 27

Which statement explains why aluminium appears to be unreactive?

A. It is coated in an oxide layer.
B. It has a low density.
C. It is low in the reactivity series.
D. It is solid at room temperature.

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 9.4: Reactivity series — Explain the apparent unreactivity of aluminium in terms of its oxide layer (Supplement)

▶️ Answer/Explanation

Aluminium is actually quite high in the reactivity series (above zinc and iron), yet it does not corrode rapidly in air or water. This apparent unreactivity is because aluminium reacts rapidly with oxygen in the air to form a thin, tough, and adherent layer of aluminium oxide (Al₂O₃) on its surface. This oxide layer acts as a barrier, preventing further reaction of the underlying aluminium metal with oxygen or water. Options B, C and D are not correct explanations.
✅ Answer: (A)

Question 28

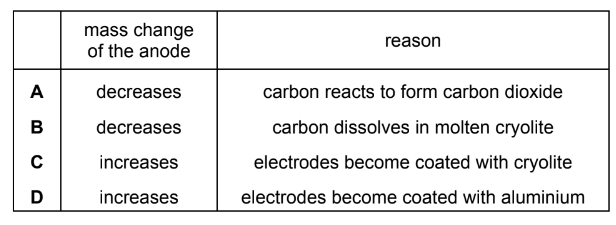

During the electrolysis of aluminium oxide, the mass of the carbon anode changes.

Which row describes the change and gives a reason for this change?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 9.6: Extraction of metals — Describe the extraction of aluminium from purified bauxite/aluminium oxide, including why the carbon anodes need to be regularly replaced (Supplement)

▶️ Answer/Explanation

During the electrolysis of molten aluminium oxide, oxygen ions (O²⁻) are discharged at the anode. The carbon (graphite) anode reacts with this oxygen at the high temperatures involved to form carbon dioxide gas: C + O₂ → CO₂. As a result, the carbon anode is gradually burned away, causing its mass to decrease. This is why the carbon anodes must be regularly replaced during the industrial extraction of aluminium.
✅ Answer: (A)

Question 29

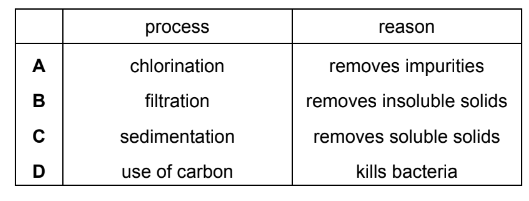

Several processes are used to treat domestic water.

Which row identifies a reason for the given process?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 10.1: Water — Describe the treatment of the domestic water supply in terms of sedimentation and filtration to remove solids, use of carbon to remove tastes and odours, and chlorination to kill microbes (Core)

▶️ Answer/Explanation

In domestic water treatment: sedimentation and filtration physically remove suspended solid particles from the water; activated carbon removes dissolved gases, tastes, and odours by adsorption; and chlorination (adding chlorine) kills harmful microbes/bacteria that cause disease. The correct row must match each treatment process with its accurate purpose — for example, chlorination is for killing microbes, not removing solids.
✅ Answer: (B)

Question 30

What is the equation for photosynthesis?

A. CO₂ + 3H₂ → CH₃OH + H₂O
B. 6CO₂ + 6H₂O → C₆H₁₂O₆ + 6O₂
C. C₆H₁₂O₆ → 2C₂H₅OH + 2CO₂
D. C₆H₁₂O₆ + 6O₂ → 6CO₂ + 6H₂O

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 10.3: Air quality and climate — State the symbol equation for photosynthesis: 6CO₂ + 6H₂O → C₆H₁₂O₆ + 6O₂ (Supplement); describe photosynthesis as the reaction between carbon dioxide and water to produce glucose and oxygen (Core)

▶️ Answer/Explanation

Photosynthesis is the process by which plants use light energy (absorbed by chlorophyll) to convert carbon dioxide and water into glucose and oxygen. The balanced symbol equation is 6CO₂ + 6H₂O → C₆H₁₂O₆ + 6O₂. Option C is fermentation (anaerobic respiration of glucose), and option D is aerobic respiration — both are the reverse or related processes. Option A represents an industrial synthesis process, not photosynthesis.
✅ Answer: (B)

Question 31

Which statement describes how the C–H bonds in methane gas in the atmosphere contribute to global warming?

A. They absorb thermal energy from the Sun and emit some of this energy into space.
B. They absorb thermal energy from the Sun and emit all of this energy towards the Earth.
C. They absorb thermal energy from the Earth and emit all of this energy towards the Earth.
D. They absorb thermal energy from the Earth and emit some of this energy towards the Earth.

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 10.3: Air quality and climate — Describe how greenhouse gases carbon dioxide and methane cause global warming, limited to the absorption, reflection and emission of thermal energy, and reducing thermal energy loss to space (Supplement)

▶️ Answer/Explanation

Greenhouse gases like methane absorb infrared (thermal) radiation emitted by the Earth’s surface (not directly from the Sun). When the C–H bonds in methane absorb this thermal radiation, the molecules re-emit it in all directions — only some of the re-emitted energy goes back toward the Earth, while some escapes to space. This partial retention of thermal energy warms the atmosphere — the greenhouse effect. Options A and B incorrectly state the energy source is the Sun; option C incorrectly states all energy is re-emitted toward Earth.
✅ Answer: (D)

Question 32

The structural formulae of two hydrocarbons are shown.

CH₃CH₂CH₂CH₃ CH₃CH(CH₃)CH₃

Which statement about the hydrocarbons is correct?

A. They are both alkenes.
B. They decolourise aqueous bromine.
C. They are structural isomers.
D. They undergo addition reactions.

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 11.1: Formulae, functional groups and terminology — Define structural isomers as compounds with the same molecular formula but different structural formulae (Supplement)
• Topic 11.4: Alkanes — Describe the properties of alkanes as generally unreactive, except in combustion and substitution by chlorine (Core)

▶️ Answer/Explanation

Both CH₃CH₂CH₂CH₃ (butane) and CH₃CH(CH₃)CH₃ (methylpropane/isobutane) have the molecular formula C₄H₁₀ — they are both saturated alkanes with the same molecular formula but different structural arrangements. This makes them structural isomers. Since they are saturated hydrocarbons (alkanes, not alkenes), they do not decolourise bromine water and do not undergo addition reactions. They are not alkenes as they contain only C–C single bonds.
✅ Answer: (C)

Question 33

The structural formula of compound Q is given.

CH₃CH₂CH₂COOCH₂CH₂CH₃

What is compound Q?

A. butyl butanoate
B. butyl propanoate
C. propyl butanoate
D. propyl propanoate

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 11.2: Naming organic compounds — Name and draw the displayed formulae of unbranched esters which can be made from unbranched alcohols and carboxylic acids (Supplement)
• Topic 11.7: Carboxylic acids — Describe the reaction of a carboxylic acid with an alcohol using an acid catalyst to form an ester (Supplement)

▶️ Answer/Explanation

In naming esters, identify the alcohol part (after the –COO– group) and the acid part (before the –COO– group). In CH₃CH₂CH₂COOCH₂CH₂CH₃: the acid part is CH₃CH₂CH₂COO– which comes from butanoic acid (4 carbons including the carbonyl carbon), and the alcohol part is –CH₂CH₂CH₃ which comes from propan-1-ol (3 carbons). Therefore the ester is named propyl butanoate — propyl from propanol, butanoate from butanoic acid.
✅ Answer: (C)

Question 34

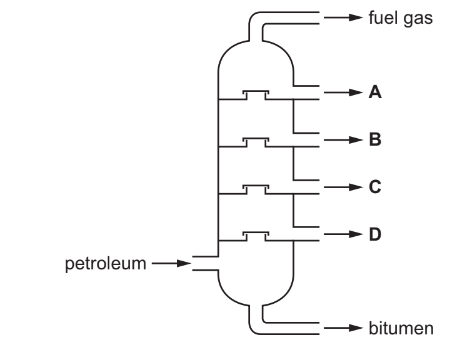

The fractional distillation of petroleum is shown.

Which fraction contains hydrocarbons with the longest chain length?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 11.3: Fuels — Describe the separation of petroleum into useful fractions by fractional distillation; describe how the properties of fractions change from the bottom to the top of the fractionating column (Core)

▶️ Answer/Explanation

In fractional distillation of petroleum, fractions with longer hydrocarbon chain lengths have higher boiling points and therefore condense lower in the column (at higher temperatures). Moving from the top to the bottom of the fractionating column: chain length increases, boiling point increases, viscosity increases, and volatility decreases. The fraction collected at the bottom of the column (such as bitumen or fuel oil) contains the longest hydrocarbon chains.
✅ Answer: (D)

Question 35

Which equation represents the cracking of an alkane?

A. 3C₂H₄ → C₆H₁₂
B. C₆H₁₂ + H₂ → C₆H₁₄
C. C₆H₁₄ → 6C + 7H₂
D. C₆H₁₄ → C₂H₄ + C₄H₁₀

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 11.5: Alkenes — Describe the manufacture of alkenes and hydrogen by the cracking of larger alkane molecules using a high temperature and a catalyst (Core)

▶️ Answer/Explanation

Cracking is the thermal decomposition of large alkane molecules into smaller, more useful molecules, including alkenes. Option D shows hexane (C₆H₁₄, a large alkane) being broken down into ethene (C₂H₄, an alkene) and butane (C₄H₁₀, a smaller alkane) — this is a correct cracking reaction. Option A is polymerisation (reverse of cracking), option B is hydrogenation, and option C shows complete decomposition to elements (not cracking).
✅ Answer: (D)

Question 36

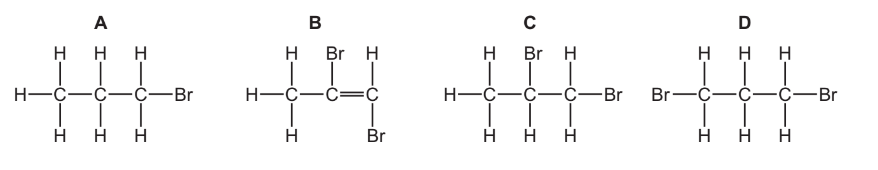

What is the structure of the product of the reaction of propene with bromine?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 11.5: Alkenes — Describe the properties of alkenes in terms of addition reactions with bromine or aqueous bromine; draw the structural or displayed formulae of the products (Supplement)

▶️ Answer/Explanation

Propene (CH₃CH=CH₂) undergoes addition reaction with bromine (Br₂) across the C=C double bond. One bromine atom adds to each carbon of the double bond, producing 1,2-dibromopropane (CH₃CHBrCH₂Br). The product has both bromine atoms on adjacent carbon atoms (carbons 1 and 2), a saturated structure with no double bonds remaining, and three carbon atoms in a chain. Option C correctly shows this product structure with both Br atoms on adjacent carbons.
✅ Answer: (C)

Question 37

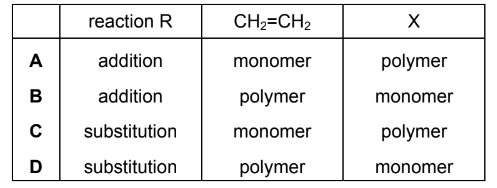

In reaction R, 2000 molecules of CH₂=CH₂ react to form a single molecule X only.

2000 CH₂=CH₂ → X

Which terms describe reaction R, CH₂=CH₂ and X?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 11.8: Polymers — Define polymers as large molecules built up from many smaller molecules called monomers; describe the formation of poly(ethene) as an example of addition polymerisation using ethene monomers (Core)

▶️ Answer/Explanation

In this reaction, many small molecules of CH₂=CH₂ (ethene) join together to form a single large molecule X (poly(ethene)). This process is called addition polymerisation — the reaction type is addition polymerisation, CH₂=CH₂ is the monomer (the small repeating unit), and X is the polymer (the large molecule made from many monomers). Only one product is formed (addition), and no small molecules such as water are released as by-products.
✅ Answer: (A)

Question 38

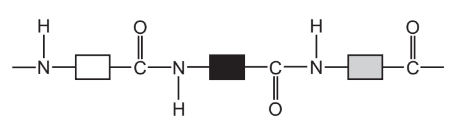

Part of the structure of a polymer is shown.

Which statements about the polymer are correct?

The polymer is nylon.
The polymer is formed by condensation polymerisation.
There are ester linkages between the monomers.

A. 1 and 2
B. 2 and 3
C. 2 only
D. 3 only

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 11.8: Polymers — Describe the differences between addition and condensation polymerisation; describe and draw the structure of nylon (a polyamide) and PET (a polyester); identify repeat units and linkages in addition and condensation polymers (Supplement)

▶️ Answer/Explanation

The polymer shown has –CO–NH– (amide) linkages between monomer units, which means it is a polyamide formed by condensation polymerisation (a small molecule, water, is released during each bond formation). Statement 2 is correct — it is formed by condensation polymerisation. However, statement 1 is uncertain without additional identifying information about the specific monomers, and statement 3 is incorrect because ester linkages (–COO–) are found in polyesters (like PET), not polyamides. Therefore only statement 2 is definitely correct.
✅ Answer: (C)

Question 39

The concentration of acids and alkalis can be determined by titration.

Which pieces of equipment are needed to perform a titration?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 12.2: Acid–base titrations — Describe an acid–base titration to include the use of a burette, volumetric pipette, and suitable indicator; describe how to identify the end-point of a titration using an indicator (Core)

▶️ Answer/Explanation

A standard acid-base titration requires three key pieces of equipment: a burette (to deliver a precise, variable volume of one solution), a volumetric pipette (to measure an accurate, fixed volume of the other solution into the flask), and a suitable indicator (to show the end-point of the reaction by a colour change). A conical flask holds the solution being titrated. The correct option must include the burette, volumetric pipette, and indicator — all three are essential.
✅ Answer: (D)

Question 40

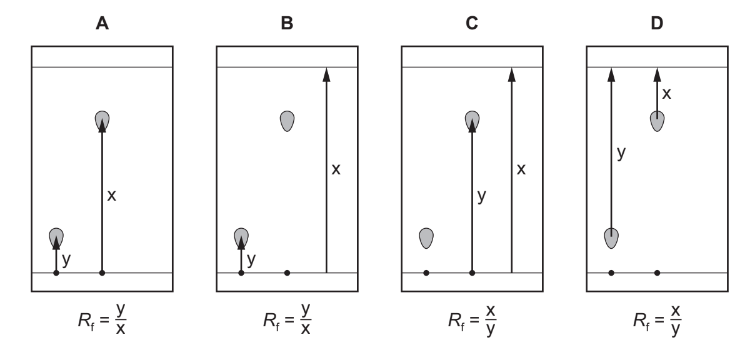

Which chromatogram shows how the R_f value of a substance is calculated?

Most-appropriate topic codes (Cambridge IGCSE Chemistry 0620):

• Topic 12.3: Chromatography — State and use the equation for R_f: R_f = distance travelled by substance ÷ distance travelled by solvent (Supplement)

▶️ Answer/Explanation

The R_f (retention factor) value is calculated using the formula: R_f = distance travelled by the substance (spot) from the baseline ÷ distance travelled by the solvent front from the baseline. Both distances are measured from the same starting point (the baseline). The correct chromatogram must clearly show both measurements labelled from the baseline — the distance to the spot centre and the distance to the solvent front — with the R_f being the ratio of these two values (always between 0 and 1).
✅ Answer: (B)
