Question
1. What is a reasonable estimate of the volume of an adult person?
A 0.10 m³ B 0.50 m³ C 1.0 m³ D 2.0 m³
Answer/Explanation
Ans:
A
2. Which combination of units could be used for expressing the power dissipated in a resistor?
A newton per second (N s–¹)
B newton second (N s)
C newton metre (N m)
D newton metre per second (N m s–¹)
Answer/Explanation
Ans:
D
3. A force of 10 N and a force of 5 N act on an object.
The angle between the forces is 150º. The resultant force on the object can be resolved into a pair of perpendicular components.
Which row shows numerical expressions for a possible pair of perpendicular components?
Answer/Explanation
Ans:C

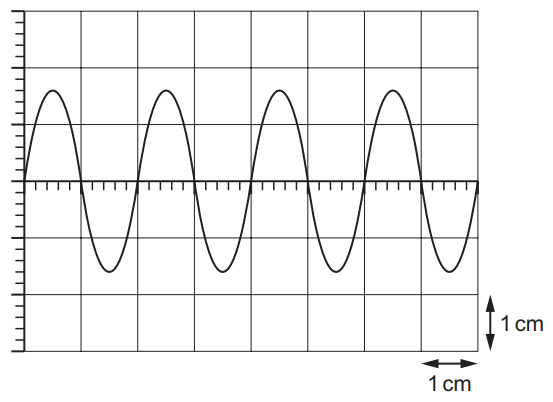

4. A signal of frequency 25 Hz is displayed on the screen of a cathode-ray oscilloscope.
What is the time-base setting?
A 10 ms cm–¹ B 20 ms cm-1 C 25 ms cm–1 D 40 ms cm–1
Answer/Explanation
Ans:B
5. A micrometer screw gauge is used to measure the diameter of a wire.
The reading on the micrometer with the jaws closed is (–0.05 ± 0.02) mm.
The reading with the wire in position between the two jaws is (+1.03 ± 0.02) mm.
What is the diameter of the wire?
A (0.98 ± 0.02) mm
B (1.08 ± 0.02) mm
C (0.98 ± 0.04) mm
D (1.08 ± 0.04) mm
Answer/Explanation
Ans:
D
6. A projectile is launched at an angle to the horizontal at time t = 0. It travels over horizontal
ground, as shown.
Air resistance is negligible.
Which graph best shows the variation with t of the speed of the projectile from when it is launched
to when it lands on the ground?
Answer/Explanation
Ans:
C
7. A train, initially at rest at a station, has a uniform acceleration of 0.20 m s-2 until it reaches a
speed of 20 m s -1. It travels for a time at this constant speed and then has a uniform deceleration
of 0.40 m s -2 until it comes to rest at the next station. The distance between the two stations is
3000 m.
What is the time taken by the train to travel between the two stations?
A 75 s B 150 s C 230 s D 300 s
Answer/Explanation
Ans:
C
8. A rocket is fired from the Earth into space.
Newton’s third law of motion describes how forces act in pairs. One of the forces of a pair is the
weight of the rocket.
What is the other force of this pair?
A air resistance
B force of the exhaust gases on the rocket
C force of the rocket on the exhaust gases
D gravitational force of the rocket on the Earth
Answer/Explanation
Ans:
D
9. The graph shows how quantity P varies with quantity Q for a body falling vertically downwards in a uniform gravitational field with air resistance.
Which pair of quantities could be represented by P and Q?
Answer/Explanation
Ans: A
10. Which quantities are conserved in an inelastic collision?
Answer/Explanation
Ans:C
Question
A charged oil drop is held stationary between two charged parallel plates.
Which forces act on the oil drop?
A both electric and gravitational
B electric only
C gravitational only
D neither electric nor gravitational
Answer/Explanation
Ans:
A
Question
Which pair of forces forms a couple with a torque of 30 N m?
Answer/Explanation
Ans:
D
Question

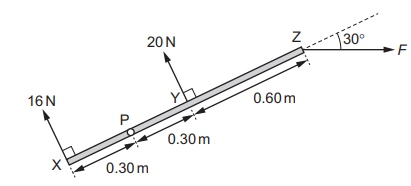

A uniform rigid bar XZ with negligible mass is 1.20 m long. The bar is pivoted at point P. Three
coplanar forces act on the bar as shown. Forces of 16 N and 20 N act perpendicularly to the bar
at points X and Y respectively. Force F acts at point Z at an angle of 30º to the axis of the bar.
The distances along the bar of the pivot and of the forces are shown.
The bar experiences a resultant moment about P of 6.0 N m in a clockwise direction.
What is the magnitude of F?
A 9.2N B 11N C 16N D 24N
Answer/Explanation
Ans:C
14. Water of depth 9.0 cm is covered by oil of depth 5.0 cm in a measuring cylinder.
The density of the water is 1000 kg m-3 and the density of the oil is 800 kgm-3.
What is the total pressure exerted on the base of the measuring cylinder due to the oil and water?
A 390Pa B 880Pa C 1200Pa D 1300Pa
Answer/Explanation
Ans:
D
15. A rocket is fired upwards.
As it accelerates upwards after leaving the launch pad, which forms of energy are changing?
A chemical energy, gravitational potential energy and kinetic energy
B chemical energy and gravitational potential energy only
C chemical energy and kinetic energy only
D gravitational potential energy and kinetic energy only
Answer/Explanation
Ans:
A
16. A roll of tape of length 50 m requires a constant force of 20 N to unwrap it.
What is the work done in unwrapping the whole roll?
A 0.4 J B 2.5 J C 500 J D 1000 J
Answer/Explanation
Ans:
D
17. A trolley of mass 600 kg is initially at point P on a slope, at a height of 80 m above ground level,
as shown. The trolley is released from rest and moves along the slope, first coming to rest at
point Q, at height h above ground level.
The total distance PQ moved by the trolley along the slope is 1.5 km. A constant resistive force of
300N opposes the motion of the trolley on the slope.
What is h ?
A 3.5 m B 76 m C 79 m D 80 m
Answer/Explanation
Ans:
A
18. An object of weight 15.0 N is pulled along a horizontal surface at a constant velocity of 2.00 m -1.
The force pulling the object is 12.0 N at 30.0° to the horizontal, as shown.
What is the power used to move the object?
A 12.0W B 20.8W C 24.0W D 30.0W
Answer/Explanation
Ans:
B
19. The spring constants of four springs are determined by plotting the following graphs of force F
against extension x.
Which order of the graphs shows decreasing spring constants?
A 2 → 1 → 3 → 4
B 3 → 4 → 2 → 1
C 4 → 2 → 1 → 3
D 4 → 3 → 2 → 1
Answer/Explanation
Ans:
B
20. Forces are applied to the ends of a rod so that its length increases. The variation with force F of
the extension e of the rod is shown.
The point P is the elastic limit.
Which shaded area represents the work done during the plastic deformation of the rod?
Answer/Explanation
Ans:
C
21. Two identical waves are produced by sources at points P and Q. The waves travel along different
paths to reach point R, as shown.
Both waves have a wavelength of 6.0 cm. The waves are in phase at point R.
What is the phase difference between the waves as they leave points P and Q?
A 0° B 60° C 90° D 120°
Answer/Explanation
Ans:
D

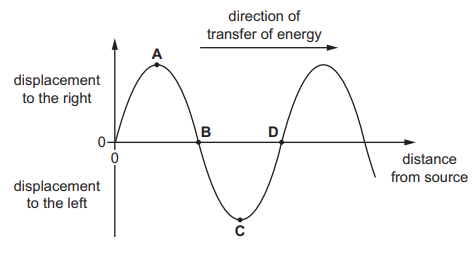

22. A longitudinal wave travelling from left to right has vibrations parallel to the direction of transfer of
energy by the wave.
The wave can be represented on a graph showing the variation with distance of the displacement
of the particles from their equilibrium positions at one instant.
Which point on the graph is the centre of a compression?
Answer/Explanation
Ans:
B
23. A stationary wave is formed from two identical sound waves.
A microphone is placed at a position of maximum loudness. It is then moved along the stationary
wave from this first position of maximum loudness to the fourth position of maximum loudness.
The microphone moves a distance of 12 cm.
The speed of sound is 330 m s -1.
What is the frequency of the sound waves?
A 4100 Hz B 5500 Hz C 8300 Hz D 11 000Hz
Answer/Explanation
Ans:
A

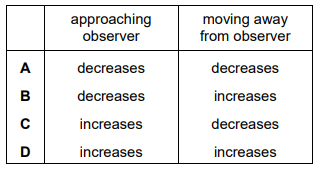

24. An ambulance has a siren that emits sound of a constant frequency. The ambulance is moving directly towards a stationary observer. The ambulance decelerates as it is approaching the observer and then accelerates after it has passed the observer. How does the frequency of the sound heard by the observer change as the ambulance is approaching and as it is moving away from the observer?
Answer/Explanation
Ans:A
25. Microwaves in a vacuum travel at speed X and have wavelength of order of magnitude Y.
What are the speed and a possible order of magnitude of wavelength of X-rays in a vacuum?
Answer/Explanation
Ans:
A

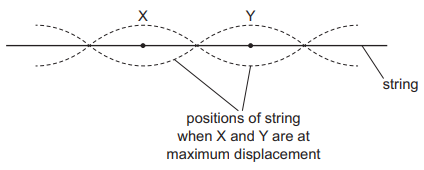

26. The diagram shows part of a stationary wave on a string.
X and Y are points on the string. The vibrations at X and Y are 180° out of phase.
What is the distance between X and Y?
A one-quarter of a wavelength
B half a wavelength
C one wavelength
D two wavelengths
Answer/Explanation
Ans:
B

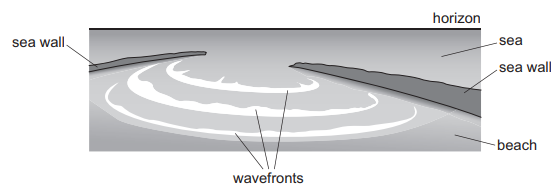

27. Which wave behaviour is shown in the diagram?
A diffraction
B Doppler shift
C interference
D superposition
Answer/Explanation
Ans:
A

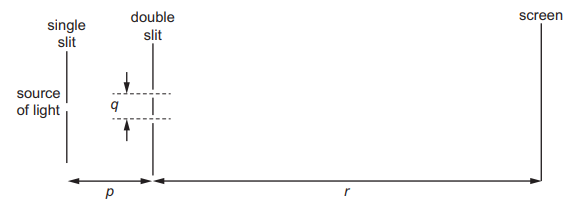

28. A teacher sets up the apparatus shown to demonstrate a double-slit interference pattern on a
screen.
Which change to the apparatus will increase the fringe spacing?
A decrease the distance p
B decrease the distance q
C decrease the distance r
D decrease the wavelength of the light
Answer/Explanation
Ans:
B
29. Light of a single unknown wavelength and blue light of a single wavelength are both incident
normally on a diffraction grating. Two diffraction patterns are produced, one for each wavelength
of light.
The third-order maximum for the blue light occurs at the same angle as the second-order
maximum for the light of unknown wavelength. The wavelength of the blue light is 480 nm.
What is the unknown wavelength?
A 320 nm B 720 nm C 960 nm D 1440 nm
Answer/Explanation
Ans:
B
30. What is the electric field strength in a region where a proton accelerates at 2.00 m s -2 due to the
field?
A 11.4 pV m-1 B 5.22 nV m-1 C 10.4 nV m-1 D 20.9 nV m-1
Answer/Explanation
Ans:
D

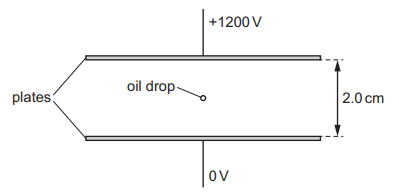

31. An oil drop of mass 2.6 x 10–15 kg and with a charge of – 4.8 x 10–19 C is in a vacuum between two
horizontal plates. The plates have a separation of 2.0 cm and a potential difference (p.d.) between
them of 1200V, as shown.
Which statement describes the motion of the oil drop?
A It is stationary.
B It has a downward acceleration of 9.7 m s–2.
C It has an upward acceleration of 1.3 m s–2.
D It has an upward acceleration of 11 m s–2.
Answer/Explanation
Ans:
C
32. Which two units are used to define the coulomb?
A ampere and second
B ampere and volt
C volt and ohm
D volt and second
Answer/Explanation
Ans:
A
33. A mobile phone battery is charged by connecting it to a constant potential difference of 5.0V.
After a time of 1.0 hour, the initial current of 0.50A slowly decreases to zero, as shown.
What is the best estimate of the energy transferred to the battery during the time of 2.0 hours
shown in the graph?
A 2700 J B 9000 J C 14 000J D 18 000J
Answer/Explanation
Ans:
C
34. A length of wire is connected into an electric circuit. The current in the wire is measured.
Which change on its own could increase the current in the wire?
A an increase in the length of the wire
B an increase in the radius of the wire
C an increase in the resistance of the wire
D an increase in the resistivity of the wire
Answer/Explanation
Ans:
B
35. A cell is described as having an electromotive force (e.m.f.) of 6V.
What does this mean?
A 1 coulomb of charge always dissipates 6 J of energy in the internal resistance of the cell.
B 1 electron gains 6 J of energy when passing through the cell.
C There is a potential difference of 6V applied across any external circuit connected to the cell.
D When 1 coulomb of charge passes through the cell, 6 J of chemical energy is transformed.
Answer/Explanation
Ans:
D
36. The diagram shows a network of resistors. Each resistor has resistance R.
What is the total resistance of the network between points X and Y?
Answer/Explanation
Ans:
C
37. Three resistors are connected in series with a battery, as shown. The battery has negligible
internal resistance.
What is the potential difference across the 180 Ω resistor?
A 1.6V B 2.4V C 3.6V D 4.0V
Answer/Explanation
Ans:
B
38. A potentiometer circuit is used to determine the unknown electromotive force (e.m.f.) of a cell X.
In the circuit shown, E is a cell with an e.m.f. that is known accurately. QR is the potentiometer
wire, which has a movable contact S. Contact S is connected to a galvanometer and to cell X.
What is not a necessary requirement to determine the e.m.f. of X from the circuit?
A The e.m.f. of cell X must be lower than the e.m.f. of cell E.
B The internal resistance of cell X must be known.
C The lengths QS and QR must be determined accurately.
D The resistance of the wire QR must be proportional to its length.
Answer/Explanation
Ans:
B
Question
A nucleus of uranium,
undergoes a series of decays. During the series of decays, two a-particles and one ẞ particle are emitted. As a result, a nucleus of actinium, Ac, is formed.
What is the correct notation for the nuclide of actinium that is formed?
Answer/Explanation
Ans:B
40. Which particle is a fundamental particle?
A electron
B hadron
C neutron
D proton
Answer/Explanation
Ans:A
