Questions 1
Topic -2.1 Equations of motion
(a) Define velocity.

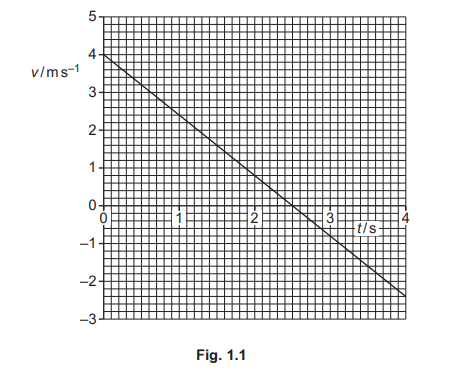

(b) A rock of mass 7.5kg is projected vertically upwards from the surface of a planet. The rock leaves the surface of the planet with a speed of 4.0\(ms^{–1}\) at time t = 0. The variation with time t of the velocity v of the rock is shown in Fig. 1.1.
Assume that the planet does not have an atmosphere and that the viscous force acting on the rock is always zero.
(i) Determine the height of the rock above the surface of the planet at time t = 4.0s.
(ii) Determine the change in the momentum of the rock from time t = 0 to time t = 4.0s.
(iii) Determine the weight W of the rock on this planet.
(c) In practice, the planet in (b) does have an atmosphere that causes a viscous force to act on the moving rock. State and explain the variation, if any, in the resultant force acting on the rock as it moves vertically upwards.
▶️Answer/Explanation
Ans
(a) change in displacement / time (taken)
(b)(i) (displacement =) area under graph
(at t = 4.0 s)v = (–) 2.4
height = \(½ \times 2.5 \times 4.0 – ½ \times 1.5 \times 2.4\)
= 3.2 m
(ii) change in momentum = 7.5 (–4.0– 2.4)
= (–) 48N s
(iii)W =∆p / (∆)t or∆mv / (∆)t
= 48 / 4.0
= 12 N
or
W = ma or mg orm(v–u) / t
= \(7.5 \times 1.6\) or \(7.5 \times (4 + 2.4) / 4.0\)
= 12 N
(c) speed/velocity decreases so viscous force decreases
viscous force decreases (and weight constant) so resultant force decreases
Questions 2
Topic -4.1 Turning effects of forces
(a) State what is meant by the centre of gravity of an object.
(b) A non-uniform rod XY is pivoted at point P, as shown in Fig. 2.1.
The rod has length 4.00m and weight 44.0N. The centre of gravity of the rod is 1.70m from end X of the rod. Point P is 1.10m from end X. A sphere hangs by a wire from end Y of the rod. The weight of the sphere is 3.0N. The weight of the wire is negligible. A force F is applied vertically downwards at end X so that the horizontal rod is in equilibrium.
(i) By taking moments about P, calculate F.
(ii) Calculate the force exerted on the rod by the pivot.

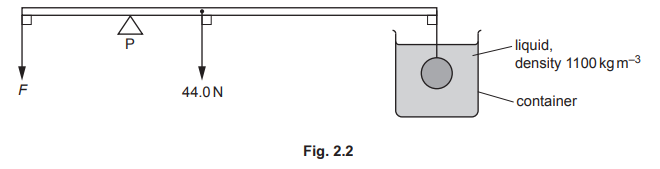

(c) The sphere in (b) is now immersed in a liquid in a container, as shown in Fig. 2.2.
The density of the liquid is \(1100kgm^{–3}\). The upthrust acting on the sphere due to the liquid is 2.5N. The magnitude of F is unchanged so that the horizontal rod is not in equilibrium.
(i) Use Archimedes’ principle to determine the radius r of the sphere.
(ii) Calculate the magnitude and direction of the resultant moment of the forces on the rod about P.
▶️Answer/Explanation
Ans
(a) point where (all) the weight (of the object) is taken to act
(b)(i) moments about P are: \((F\times 1.10), (44.0\times 0.60)\) and \((3.0\times 2.90)\)
1 mark for any one correct moment and 2 marks for two correct moments
\((F \times 1.10) = (44.0\times 0.60) + (3.0\times 2.90)\)
F = 32 N
(ii) force = 32 + 44 + 3
= 79 N
(c)(i) \((F = \rho gV)\)
\(V = 2.5 / (1100\times 9.81) (= 2.32\times 10^{–4})\)
\(V = (4 / 3) \pi r^3 \)
\(r = [(3\times 2.32\times 10^{–4}) / 4 \pi]^{1/3}\)
r = 0.038 m
(ii) resultant moment = \(2.5\times 2.9\)
= 7.3 N m
or
resultant moment = \( F\times 1.1\times (44\times 0.6 + 0.5\times 2.9)\)
= 7.3 Nm (allow 7.2 Nm or 7.4 Nm from rounded values of F)
direction: anticlockwise
Questions 3
Topic -5.1 Energy conservation
(a) (i) Define power.
(ii) A force F takes time t to move an object through a displacement x at constant velocity v in the direction of the force. The work done by the force is W. Use the definition of power to show that the power P transferred by the force is given by
P = Fv.
(b) A block is pulled up a slope by a wire attached to a motor, as shown in Fig. 3.1.
The useful power output of the motor is 56W. The block has a weight of 430N and travels with constant velocity along the slope at an angle of 11° to the horizontal. Assume that there are no resistive forces opposing the motion of the block.
(i) Calculate the tension T in the wire.
(ii) Calculate the speed of the block.
(iii) The rate of increase of gravitational potential energy of the block is equal to the useful power output of the motor. One of the reasons for this is that there is no work done against resistive forces. By considering the motion of the block, state another reason for this.
(iv) The motor has an efficiency of 80%. Calculate the time taken for an input energy of 1.2kJ to be supplied to the motor.
▶️Answer/Explanation
Ans
(a)(i) work (done) / time (taken)
(ii)
W = Fx or E = Fx
(P =) Fx / t = Fv or P = Fvt / t = Fv
(b)(i)T = 430 sin 11° or 430 cos 79°
= 82 N
(ii) speed = 56 / 82
= \(0.68ms^{–1}\)
(iii) no change in kinetic energy (of block)
(iv) (input power) = 56 / 0.80
( = 70 W)
time taken = \(1.2\times 10^3 / 70\)
= 17 s
or
(useful energy) = \(1200\times 80 / 100\)
( = 960 J)
time taken = 960 / 56
= 17 s
Questions 4
Topic -6.1 Stress and strain
A spring is suspended from a fixed point at one end and a vertical force is applied to the other end, as shown in Fig. 4.1.

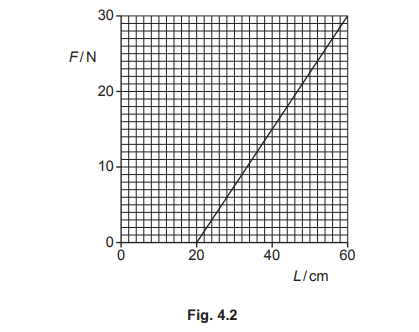

The variation of the applied force F with the length L of the spring is shown in Fig. 4.2.
(a) Determine the spring constant k of the spring.
(b) Determine the elastic potential energy in the spring when the applied force F is 15N.
▶️Answer/Explanation
Ans
(a)k =F / ∆L orF / x or gradient
= e.g. 30 / (0.60 – 0.20)
= \(75Nm^{–1}\)
b) \(E = \frac{1}{2}F \Delta L\) or \(\frac{1}{2}Fx\) or \(\frac{1}{2}k(\Delta L)^2\) or \(\frac{1}{2}kx^2\) or area under graph
= \(\frac{1}{2}\times 15\times 0.20\) or \(\frac{1}{2}\times 75\times 0.20^2\)
= 1.5 J
Questions 5
Topic -6.2 Elastic and plastic behaviour

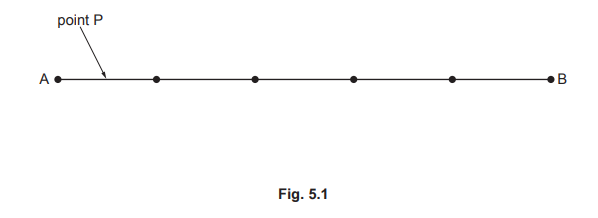

A horizontal string is stretched between two fixed points A and B. A vibrator is used to oscillate the string and produce an observable stationary wave. At one instant, the moving string is straight, as shown in Fig. 5.1.
The dots in the diagram represent the positions of the nodes on the string. Point P on the string is moving downwards. The wave on the string has a speed of \(35ms^{–1}\) and a period of 0.040s.
(a) Explain how the stationary wave is formed on the string.
(b) On Fig. 5.1, sketch a line to show a possible position of the string a quarter of a cycle later than the position shown in the diagram.
(c) Determine the horizontal distance from A to B.
(d) A particle on the string has zero displacement at time t = 0. From time t = 0 to time t = 0.060s, the particle moves through a total distance of 72mm. Calculate the amplitude of oscillation of the particle.
▶️Answer/Explanation
Ans
(a) wave(s) (travel along string and) reflect at fixed point / A / B / end B
incident and reflected waves superpose / interfere
or
two waves travelling / with speed in opposite directions superpose / interfere
(b) line has an approximate sinusoidal shape with maximum downward displacement at P and zero displacement at each node
(c)v = λ / T
or
v = fλ and f = 1 / T
λ = \(35\times 0.040\) or 35 / 25
( = 1.4 m)
distance = \(1.4\times 2.5\)
= 3.5 m
(d) (number of periods / cycles) (= t / T) = 0.060 / 0.040
( = 1.5)
amplitude = 72 / 6
= 12 mm
Questions 6
Topic -10.2 Kirchhoff’s laws
(a) State Kirchhoff’s first law.
(b) A battery is connected to two resistors X and Y, as shown in Fig. 6.1.
(ii) The two resistors are made of wires that have the same length. Both wires are made from metal of the same resistivity. State and explain which resistor is made of wire with the larger cross-sectional area.
(c) A battery of electromotive force (e.m.f.) 9.0V and negligible internal resistance is connected in series with a light-dependent resistor (LDR) and a fixed resistor of resistance 1800Ω, as
shown in Fig. 6.2.
A voltmeter is connected across the fixed resistor. The reading on the voltmeter is 5.4V.
(i) Calculate the current in the circuit
(ii) Calculate the resistance \(R_L\) of the LDR.
(iii) The intensity of the light illuminating the LDR increases. By reference to the current in the circuit, state and explain the change, if any, to the voltmeter reading.
▶️Answer/Explanation
Ans
(a) sum of current(s) into junction = sum of current(s) out of junction
or
(algebraic) sum of current(s) at a junction is zero
(b)(i) same potential difference (across X and Y as in parallel)
\(power =V^2 / R (and R_X>RY)
or
\(power =VI and I_X< I_Y
(so) Y (dissipates more power)
(ii)R = ρL / A (and RX>RY)
(so) Y (has the larger (cross-sectional) area)
(c)(i) current = 5.4 / 1800
=\( 3.0\times 10^{–3} A\)
(ii) 5.4 / 9.0 = 1800 / (1800 + RL)
or
\(R_L = (9.0 – 5.4) / 3.0 × 10^{–3}\)
\(R_L = 1200 \Omega\)
(iii) resistance of LDR / RL decreases
current (in the circuit) increases (so) voltmeter reading increases
Questions 7
Topic -11.1 Atoms, nuclei and radiation
(a) An unstable nucleus \(_Z^AX\) decays by emitting a β– particle.
(i) Determine quantitatively the changes, if any, in A and Z when X decays.
(ii) In addition to the β– particle, another lepton is emitted during the decay. State the name of the other lepton that is emitted.
(b) A particle P is composed of an up quark (u) and a down antiquark (d).
(i) Calculate the charge q of particle P in terms of e, where e is the elementary charge. Show your working.
(ii) Particle P belongs to two classes (groups) of particles. State the names of these two classes.
▶️Answer/Explanation
Ans
(a)(i) change in A = 0
change in Z = (+)1
(ii) (electron) antineutrino
(b)(i) up / u (charge) = \((+)\frac{2}{3}e\) or antidown / (d) =\((+)\frac{1}{3}e\)
or
\((q)=\frac{2}{3}e+\frac{1}{3}e\)
q = (+)1e
(ii) hadron(s) B1
meson(s)
