Questions 1
Topic – 1.2
What is equal to 0.000005 J?
A 5 mJ
B 5 MJ
C 5 \(\mu J\)
D 5 nJ
▶️Answer/Explanation
Ans C
Questions 2
Topic – 1.3
The measurement of a physical quantity may be subject to random errors and to systematic errors. Which statement is correct?
A A systematic error cannot be reduced by adjusting the apparatus.
B A systematic error results in a different reading each time the measurement is taken.
C Random errors are always caused by the person taking the measurement.
D Random errors can be reduced by taking the average of several measurements.
▶️Answer/Explanation
Ans D
Questions 3
Topic – 6.1

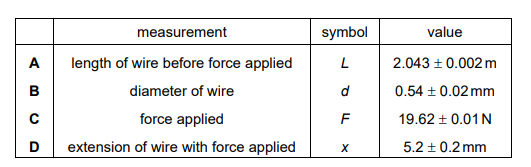

The Young modulus of the material of a wire is to be found. The Young modulus E is given by the equation shown.
The wire is extended by a known force and the following measurements are made. Which measurement has the largest effect on the uncertainty in the value of the calculated Young
modulus?
▶️Answer/Explanation
Ans B
Questions 4
Topic – 1.4
Two physical quantities combined together as a product can produce a scalar quantity or a vector quantity. Which product of two quantities produces a scalar quantity?
A \((force) \times (displacement of an object in the direction of the force)\)
B \((mass) \times (acceleration of the mass)\)
C \((pressure) \times (area on which the pressure acts)\)
D \((velocity) \times (time for which an object has that velocity)\)
▶️Answer/Explanation
Ans A
Questions 5
Topic – 2.1

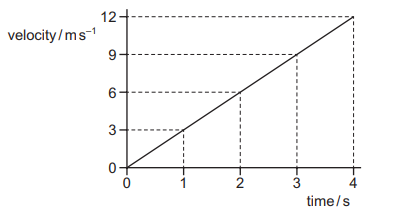

The diagram shows a velocity–time graph for an object moving in a straight line.
What is the displacement during the last 2 seconds of the motion?
A 6 m
B 12 m
C 18 m
D 24 m
▶️Answer/Explanation
Ans C
Questions 6
Topic – 3.2

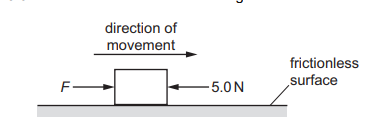

A block is moving along a horizontal frictionless surface. A constant force F and a constant resistive force of 5.0 N act on the block as it is moving in the direction of the force F, as shown.
The graph shows the variation with time of the momentum of the block.
What is the magnitude of force F?
A 2.0 N
B 3.0 N
C 5.0 N
D 8.0 N
▶️Answer/Explanation
Ans A
Questions 7
Topic – 3.1
Newton’s third law describes two forces that are equal in magnitude and form a pair. Which description of the two forces in such a pair is not correct?
A They act in opposite directions.
B They act on different objects.
C They are the same type of force.
D They cause an object to be in equilibrium.
▶️Answer/Explanation
Ans D
Questions 8
Topic – 3.2

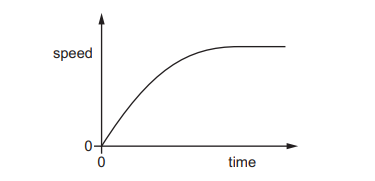

The graph shows the variation with time of the speed of a raindrop falling vertically through air.
Which statement is correct?
A The acceleration decreases to produce a steady speed.
B The acceleration increases as the speed increases.
C The air resistance decreases as the speed increases.
D The resultant force increases as the speed increases.
▶️Answer/Explanation
Ans A
Questions 9
Topic – 3.3
Which statement about a perfectly elastic collision between two objects is correct?
A Total kinetic energy is conserved and the relative speed of approach equals the relative speed of separation.
B Total kinetic energy is conserved but the relative speed of approach does not equal the relative speed of separation.
C Total kinetic energy is not conserved and the relative speed of approach does not equal the relative speed of separation.
D Total kinetic energy is not conserved but the relative speed of approach does equal the relative speed of separation.
▶️Answer/Explanation
Ans A
Questions 10
Topic – 1.1
The diagram shows the view from above of a sprinkler system used to water a garden.
The sprinkler consists of a tube of length 0.15 m. The tube is pivoted in the middle and spins in a horizontal plane as it lets out jets of water from each end. The two water jets are in opposite directions to each other. Each water jet exerts a horizontal force of 3.0 N on the tube at right angles to the tube. What is the magnitude of the torque on the tube from the water jets?
A 0 N m
B 0.23 N m
C 0.45 N m
D 0.90 N m
▶️Answer/Explanation
Ans C
Questions 11
Topic – 4.1

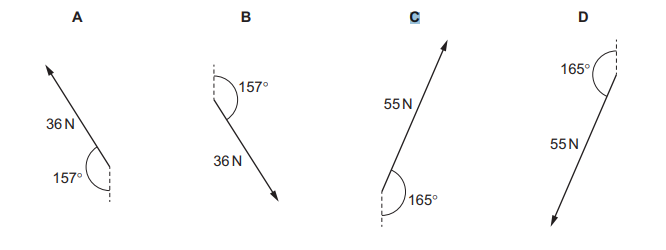

An object is held in equilibrium by three forces. The forces all act in the same plane. The diagram shows two of the forces that act on the object.
The third force is missing from the diagram. What is the third force?
▶️Answer/Explanation
Ans B
Questions 12
Topic – 4.1
The total number of forces acting on an object is two. The object is in equilibrium. Which statements about the forces are correct?
1 The two forces must have equal magnitudes.
2 The two forces must act in the same direction.
3 The two forces must act through the same point.
A 1 and 2 only
B 1 and 3 only
C 2 and 3 only
D 1, 2 and 3
▶️Answer/Explanation
Ans B
Questions 13
Topic – 11.1
The diagram shows the arrangement of atoms in a particular crystal.
Each atom is at the corner of a cube. The mass of each atom is \(3.5 \times 10^{–25}\) kg. The density of the crystal is \(9.2 \times 10^3 kgm^{–3}\). What is the shortest distance between the centres of two adjacent atoms?
A \(3.8 \times 10^{–29}m\)
B \(6.2 \times 10^{–15}m\)
C \(3.4 \times 10^{–10}m\)
D \(3.0 \times 10^{–9} m\)
▶️Answer/Explanation
Ans C
Questions 14
Topic – 4.1

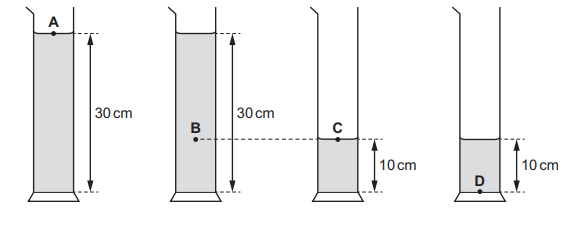

Four measuring cylinders are filled with the same liquid to the heights shown. At which position is the pressure the greatest?
▶️Answer/Explanation
Ans B
Questions 15
Topic – 5.1
In many filament lamps, as much as 92 J of energy is emitted as thermal energy for every 8 J of energy emitted as light. What is the efficiency of a filament lamp, as the percentage of electrical energy converted to light energy?
A 8%
B 9%
C 91%
D 92%
▶️Answer/Explanation
Ans A
Questions 16
Topic – 5.1
What is a unit of power?
A \(J C^{–1}\)
B \(J m^{–1}\)
C \(J N^{–1}\)
D \(J s^{–1}\)
▶️Answer/Explanation
Ans D
Questions 17
Topic – 5.2

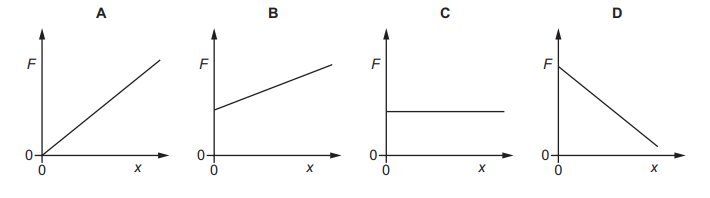

An object is in a uniform gravitational field. The graph shows how the change in gravitational potential energy \(∆E_P\) of the object varies with the vertical distance x moved by the object from a fixed point.
Which graph shows how the gravitational force F acting on the object varies with distance x?
▶️Answer/Explanation
Ans C
Questions 18
Topic – 3.2

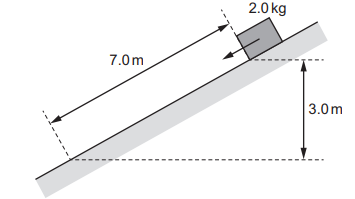

A block of mass 2.0 kg is released from rest on a slope. It travels 7.0 m down the slope and falls a vertical distance of 3.0 m. The block experiences a frictional force parallel to the slope of 5.0 N.
What is the speed of the block after falling this distance?
A 4.9 \(m s^{–1}\)
B 6.6 \(m s^{–1}\)
C 8.6 \(m s^{–1}\)
D 10 \(m s^{–1}\)
▶️Answer/Explanation
Ans A
Questions 19
Topic – 6.1

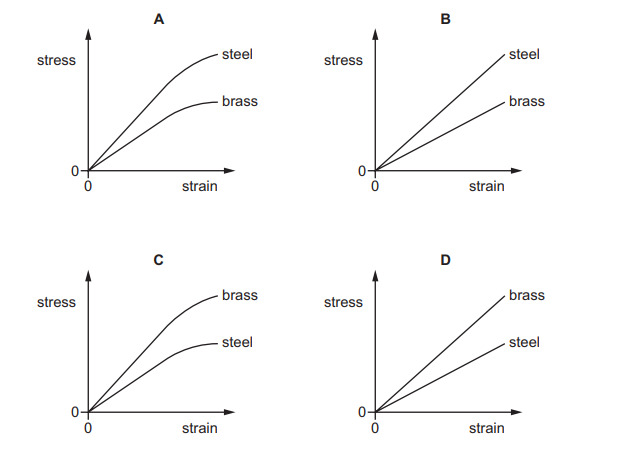

Two wires, one made of brass and the other of steel, are stretched in an experiment. Both wires obey Hooke’s law during this experiment. The Young modulus for brass is less than the Young modulus for steel. Which graph shows how the stress varies with strain for both wires in this experiment?
▶️Answer/Explanation
Ans B
Questions 20
Topic – 6.2

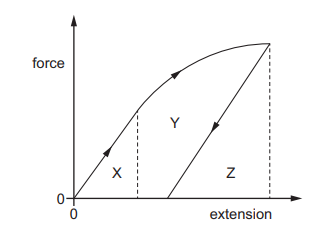

A sample of material is stretched by a tensile force to a point beyond its elastic limit. The tensile force is then reduced to zero. The force–extension graph is shown.
Which area represents the net work done on the sample?
A X
B X + Y
C Y + Z
D Z
▶️Answer/Explanation
Ans B
Questions 21
Topic – 6.1
A wire is fixed at one end and is extended by a force F1 acting on the other end. This causes the wire to have an elastic potential energy of 0.15 J. The force applied to the wire is now changed to a force \(F_2\). This causes the wire to have a new elastic potential energy of 0.60 J. The wire obeys Hooke’s law. What is the relationship between \(F_1\) and \(F_2\)?
A \(F_1 = 2F_2\)
B \(F_1 = 4F_2\)
C \(2F_1 = F_2\)
D \(4F_1 = F_2\)
▶️Answer/Explanation
Ans C
Questions 22
Topic – 7.1

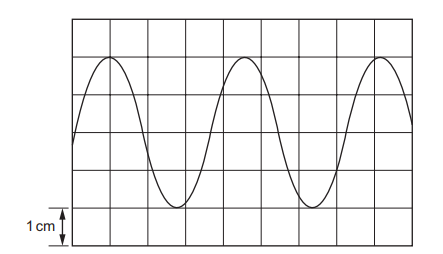

The diagram shows a representation of a wave on the screen of an oscilloscope.
The y-gain is set to \(3.5 mVcm^{–1}\). What is the amplitude of the wave?
A 0.57 mV
B 3.5 mV
C 7.0 mV
D 14 mV
▶️Answer/Explanation
Ans C
Questions 23
Topic – 7.2
A transverse progressive wave on a string has a wavelength of 12 cm and an amplitude of 1.5 cm. The speed of the wave on the string is 48 \(cms^{–1}\). What is the distance travelled by a point on the string in a time of 2.0 s?
A 12 cm
B 24 cm
C 48 cm
D 96 cm
▶️Answer/Explanation
Ans C
Questions 24
Topic – 7.3
An ambulance siren emits a sound with a single frequency f. The ambulance travels towards, passes close to, and then travels away from a stationary observer. Which statement describes the frequency of the sound detected by the observer as the ambulance passes the observer?
A equal to f and decreasing
B equal to f and increasing
C greater than f and constant
D less than f and constant
▶️Answer/Explanation
Ans A
Questions 25
Topic -7.4
An electromagnetic wave has a wavelength of 138 pm in a vacuum. To which region of the electromagnetic spectrum does this wave belong?
A radio wave
B microwave
C visible light
D X-ray
▶️Answer/Explanation
Ans D
Questions 26
Topic – 7.5
A student investigates the polarisation of microwaves. The microwaves from the transmitter are vertically polarised. A metal grille acts as a polarising filter when placed between the microwave transmitter and the receiver. The reading on the voltmeter is proportional to the intensity of microwaves transmitted through the grille. When the transmission axis of the grille is vertical, the voltmeter reads 3.50V
The grille is then rotated through an angle \( \Theta\) . The voltmeter now reads 2.20V. What is \( \Theta \)?
A 37.5°
B 39.0°
C 51.0°
D 52.5°
▶️Answer/Explanation
Ans A
Questions 27
Topic -7.1
Two waves superpose. A resultant wave pattern is formed. Which statement about the two waves must be correct?
A They have the same amplitude.
B They are of the same type.
C They are transverse waves.
D They travel in opposite directions.
▶️Answer/Explanation
Ans B
Questions 28
Topic – 7.4

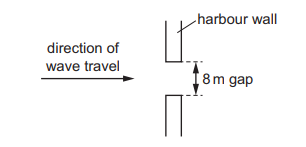

A water wave passes through a gap in a harbour wall and diffracts. The gap has a width of 8 m.
The wave travels directly towards the gap. For which wavelength is the diffraction of the wave greatest?
A 1 m
B 2 m
C 4 m
D 8 m
▶️Answer/Explanation
Ans A
Questions 29
Topic – 8.4
Light of wavelength \(5.50 \times 10^{–7} m\) from a laser is incident normally on a diffraction grating. The diffracted light is incident on a semicircular screen, as shown in the view from above.
A total of 9 bright dots are formed on the screen. The grating is at the centre of the semicircle. The lines of the grating are vertical. The separation between adjacent lines in the grating is d. What is a possible value of d ?
A \(2.25 \times 10^{–6}m\)
B \(2.80 \times 10^{–6}m\)
C \(4.40 \times 10^{–6}m\)
D \(4.95 \times 10^{–6}m\)
▶️Answer/Explanation
Ans A
Questions 30
Topic – 9.2
Which quantity is given by the product of charge and electric potential difference?
A current
B energy transferred
C power dissipated
D resistance
▶️Answer/Explanation
Ans B
Questions 31
Topic – 9.3
The current in a filament lamp is increased. Which statement about the lamp is correct?
A The brightness of the lamp decreases.
B The potential difference across the filament decreases.
C The resistance of the filament decreases.
D The temperature of the filament increases.
▶️Answer/Explanation
Ans D
Questions 32
Topic – 9.2
A student builds the circuit shown. All the lamps are identical. Which lamp dissipates the most power?
▶️Answer/Explanation
Ans D
Questions 33
Topic – 9.3
The resistance of a metal cube is measured by placing it between two parallel plates, as shown.
The cube has volume V and is made of a material with resistivity \(\rho\). The connections to the cube have negligible resistance. Which expression gives the electrical resistance of the metal cube between X and Y?
A \(\rho V^\frac{1}{3}\)
B \(\rho V^\frac{2}{3}\)
C \(\frac{\rho }{V^\frac{1}{3}}\)
D \(\frac{\rho }{V^\frac{2}{3}}\)
▶️Answer/Explanation
Ans C
Questions 34
Topic – 9.3

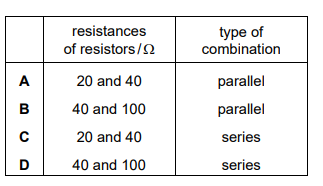

A circuit needs to be completed by connecting two resistors between points X and Y, as shown. The resistors can be connected in series or in parallel with each other.
Which combination of resistors produces the least resistance between X and Y?
▶️Answer/Explanation
Ans A
Questions 35
Topic – 10.1
The diagram shows a circuit that includes a cell with internal resistance.
The switch is initially open. Which row describes the effects on currents \(I_1\) and \(I_2\) of closing the switch?
▶️Answer/Explanation
Ans C
Questions 36
Topic – 9.2
The diagram shows a circuit consisting of a cell and three resistors \(R_1\), \(R_2\) and \(R_3\).
The cell has electromotive force (e.m.f.) 1.60V and negligible internal resistance. The current in the cell is 0.64A. The potential difference across R1 is 0.48V. The current in \(R_3\) is 0.32A. What is the resistance of \(R_2\)?
A 1.5\(\Omega \)
B 2.5\(\Omega \)
C 3.5\(\Omega \)
D 5.0\(\Omega \)
▶️Answer/Explanation
Ans C
Questions 37
Topic – 10.3
The diagram shows a potentiometer circuit used to compare the electromotive forces (e.m.f.), \(E_1\) and \(E_2\), of two cells. XY is a uniform resistance wire. The fixed resistor has resistance R. A sliding contact is moved along the wire XY. When the sliding contact is at position P, the galvanometer reads zero
The circuit is changed so that the galvanometer reads zero when the sliding contact is at a new position to the left of P. Which change could have been made to the circuit?
A The wire XY was replaced with one of lower resistance.
B \(E_2\) was increased.
C \(E_1\) was decreased.
D R was decreased.
▶️Answer/Explanation
Ans D
Questions 38
Topic – 11.1

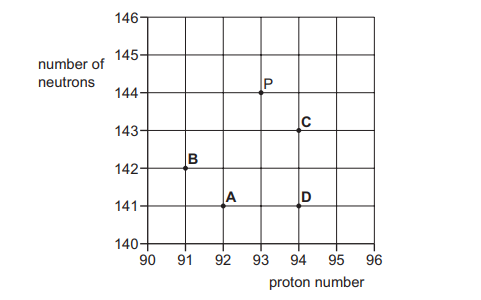

Nucleus P has 144 neutrons and 93 protons. Nucleus P is unstable and undergoes \(\alpha \)-decay to form nucleus Q. Nucleus Q then undergoes \(\beta^–\) decay to form nucleus R. Nucleus P is represented by point P on the graph. Which point on the graph represents nucleus R?
▶️Answer/Explanation
Ans A
Questions 39
Topic – 11.1

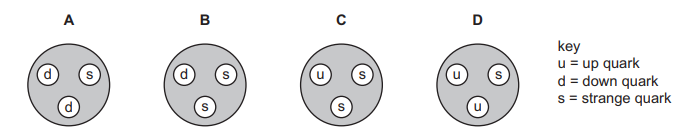

e diagrams show the quark composition of four different hadrons. One of the hadrons is a \(\sum +\) particle. It has a charge of +e, where e is the elementary charge. Which hadron could be the \(\sum +\) particle?
▶️Answer/Explanation
Ans D
Questions 40
Topic – 11.2
Which type of particle is comprised of the most quarks?
A antiquark
B baryon
C lepton
D meson
▶️Answer/Explanation
Ans B
