Key Concepts:

define the term recombinant DNA
explain that genetic engineering is the deliberate manipulation of genetic material to modify specific characteristics of an organism and that this may involve transferring a gene into an organism so that the gene is expressed
explain that genes to be transferred into an organism may be:
- extracted from the DNA of a donor organism
- synthesised from the mRNA of a donor organism
- synthesised chemically from nucleotides
explain the roles of restriction endonucleases, DNA ligase, plasmids, DNA polymerase and reverse transcriptase in the transfer of a gene into an organism
explain why a promoter may have to be transferred into an organism as well as the desired gene
explain how gene expression may be confirmed by the use of marker genes coding for fluorescent products
explain that gene editing is a form of genetic engineering involving the insertion, deletion or replacement of DNA at specific sites in the genome
describe and explain the steps involved in the polymerase chain reaction (PCR) to clone and amplify DNA, including the role of Taq polymerase
describe and explain how gel electrophoresis is used to separate DNA fragments of different lengths
outline how microarrays are used in the analysis of genomes and in detecting mRNA in studies of gene expression
outline the benefits of using databases that provide information about nucleotide sequences of genes and genomes, and amino acid sequences of proteins and protein structures

CIE AS/A Level Biology 9700-Study Notes- All Topics

Recombinant DNA (rDNA) – Definition

🧬 Definition

Recombinant DNA (rDNA) is DNA that has been artificially created by combining genetic material from two or more different sources.
This new DNA molecule contains sequences that do not normally occur together in nature.

🔬 Key Points

Produced using biotechnology techniques such as gene cloning and molecular splicing.
Commonly used to insert useful genes into organisms for research, medicine, or agriculture.
Enables production of insulin, vaccines, and genetically modified crops.

🧠 Simple Explanation
Think of it as cutting a gene from one organism and inserting it into another, creating new genetic combinations.

Genetic Engineering

🌱 Definition

Genetic engineering is the deliberate manipulation of an organism’s genetic material to modify or enhance specific traits.
It allows scientists to alter characteristics in plants, animals, or microorganisms in a controlled way.

🔬 Key Concept

May involve gene transfer, where a specific gene from one organism is inserted into another.
The transferred gene is expressed, meaning the recipient organism produces the protein or trait encoded by the gene.

🧪 Examples of Genetic Engineering

Medicine: Production of human insulin by genetically engineered bacteria.
Agriculture: Crops resistant to pests or herbicides (e.g., Bt corn).
Research: Creating model organisms to study diseases.

🧠 Simple Explanation
Scientists pick a gene that codes for a desired trait.
They insert it into another organism’s DNA.
The organism then shows the new characteristic, such as producing a useful protein or resisting disease.

Sources of Genes for Transfer in Genetic Engineering

🌱 Introduction

In genetic engineering, a gene of interest must be obtained before it can be inserted into a recipient organism.
Genes can be obtained in three main ways.

1. Extracted from the DNA of a Donor Organism

The gene is directly isolated from the donor’s DNA.
Method: Restriction enzymes are used to cut and isolate the desired gene.
Example: Human insulin gene extracted from human DNA for bacterial production.

2. Synthesised from the mRNA of a Donor Organism

mRNA corresponding to the desired gene is converted into complementary DNA (cDNA) using reverse transcriptase.
Advantage: cDNA lacks introns, allowing expression in prokaryotic cells.
Example: Production of human proteins in bacteria.

3. Synthesised Chemically from Nucleotides

Genes can be artificially assembled by joining nucleotides in the correct sequence.
Use: Useful when isolating the natural gene is difficult.
Example: Synthetic genes for vaccines or research purposes.

📊 Summary Table

Method	Process Description	Example
Extracted from DNA	Gene cut from donor genome using enzymes	Human insulin gene
Synthesised from mRNA	mRNA → cDNA using reverse transcriptase	Human protein production in bacteria
Chemically synthesised	Artificial assembly of nucleotides	Synthetic vaccine genes

🧠 Key Takeaways
Genes for transfer can come from donor DNA, mRNA-derived cDNA, or synthetic sequences.
Choice depends on ease of isolation, host compatibility, and desired gene expression.
These methods are essential for successful recombinant DNA technology.

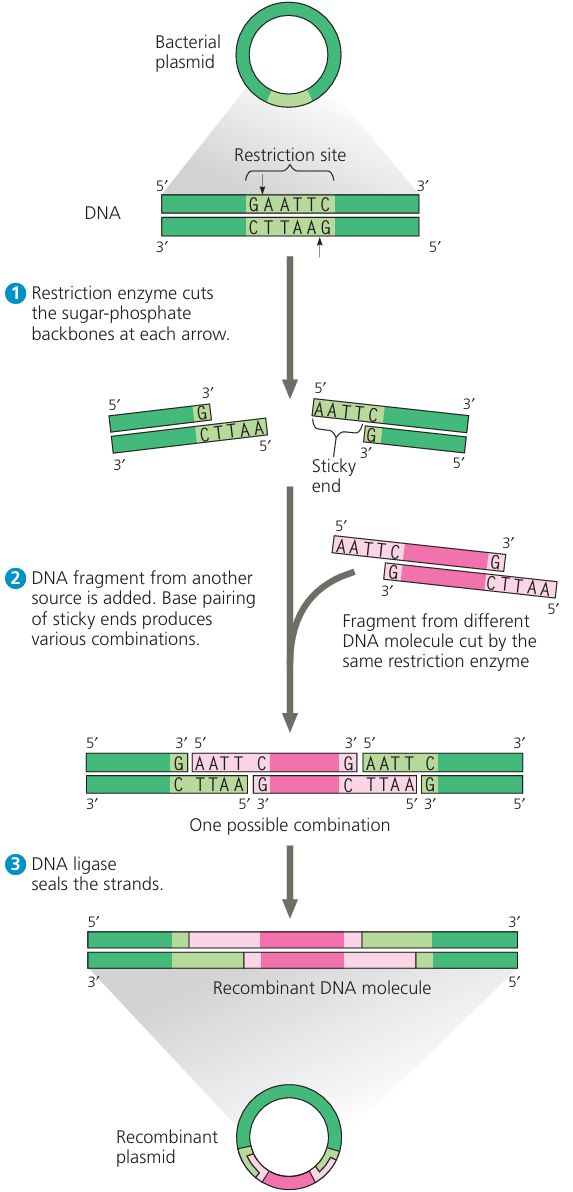

Roles of Key Enzymes and Vectors in Gene Transfer

🌱 Introduction

Gene transfer in genetic engineering involves inserting a gene of interest into a host organism.
Several enzymes and vectors are used to cut, join, copy, and carry DNA efficiently.

1. Restriction Endonucleases

Role: Cut DNA at specific nucleotide sequences called recognition sites.
Allows scientists to isolate the desired gene and create compatible ends for insertion.
Example: EcoRI enzyme cuts DNA to isolate the human insulin gene.

2. DNA Ligase

Role: Joins DNA fragments together, forming phosphodiester bonds.
Essential for attaching the gene of interest into a plasmid or vector.
Example: Joining the human insulin gene into a bacterial plasmid.

3. Plasmids

Role: Circular DNA molecules used as vectors to carry genes into host cells.
Can replicate independently inside bacterial cells, allowing gene expression.
Example: Bacterial plasmid carrying the gene for human insulin.

4. DNA Polymerase

Role: Copies DNA by adding nucleotides to a DNA strand during replication.
Used in PCR (polymerase chain reaction) to amplify small amounts of DNA.
Example: Amplifying a gene before inserting it into a vector.

5. Reverse Transcriptase

Role: Converts mRNA into complementary DNA (cDNA).
cDNA can be inserted into prokaryotic hosts since it lacks introns.
Example: Creating cDNA of a human gene for bacterial expression.

📊 Summary Table

Component / Enzyme	Role in Gene Transfer	Example
Restriction Endonucleases	Cut DNA at specific sequences to isolate genes	EcoRI cutting human insulin gene
DNA Ligase	Joins DNA fragments together	Inserting insulin gene into plasmid
Plasmids	Vectors carrying genes into host cells	Bacterial plasmid carrying insulin gene
DNA Polymerase	Copies or amplifies DNA	PCR amplification of target gene
Reverse Transcriptase	Converts mRNA into cDNA	Human gene cDNA for bacterial expression

🧠 Key Takeaways
Gene transfer requires precise cutting, joining, copying, and carrying of DNA.
Each enzyme or vector plays a specific, critical role in creating recombinant DNA and expressing it in a host organism.
Understanding these roles ensures efficient and successful genetic engineering.

Role of Promoters in Gene Transfer

🌱 Introduction

When transferring a gene into an organism, inserting the gene alone is not always sufficient.
A promoter sequence may also need to be included to ensure the gene is expressed properly.

🔬 Why a Promoter is Needed

Definition: A promoter is a DNA sequence that signals the start of transcription.
Role:
- Allows RNA polymerase to bind and initiate transcription of the gene.
- Ensures the gene is expressed at the right time and in the right amount.
- Without a promoter, the host organism may not recognize the gene, and no protein will be produced.

🔬 Example

Transferring a human insulin gene into bacteria:
Bacterial RNA polymerase cannot read human promoter sequences.
A bacterial promoter must be attached to the insulin gene to allow efficient transcription and insulin production.

🧠 Key Takeaways
Promoters are essential regulatory sequences that control gene expression.
Including a promoter ensures that the transferred gene is active in the host organism.
Choice of promoter depends on the host organism and desired level of expression.

Confirming Gene Expression Using Marker Genes

🌱 Introduction

In genetic engineering, it is important to verify that a transferred gene is being expressed in the host organism.
Marker genes coding for detectable products, like fluorescent proteins, are commonly used.

🔬 How It Works

A marker gene is inserted alongside the gene of interest.
The marker gene codes for a fluorescent protein (e.g., Green Fluorescent Protein, GFP).
If the host cell produces fluorescence, it confirms that:
- The gene has been successfully incorporated into the host genome.
- The gene is being transcribed and translated, i.e., it is expressed.

Example

A plant is genetically engineered with a GFP marker gene.
Under UV light, cells that glow green indicate successful gene expression.
This method allows rapid and visual confirmation without destroying the organism.

🧠 Key Takeaways
Marker genes provide a visible or measurable signal to confirm gene expression.
Fluorescent markers like GFP are widely used because they allow non-destructive, real-time observation.
Using marker genes ensures accuracy and efficiency in recombinant DNA experiments.

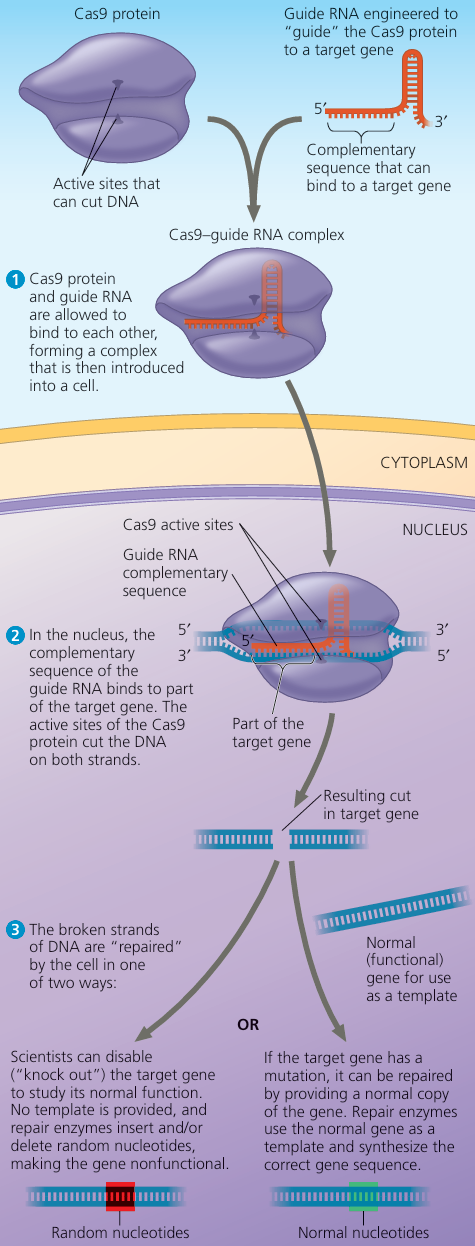

Gene Editing

🌱 Introduction

Gene editing is a specialised form of genetic engineering.
It allows scientists to precisely modify DNA at specific locations in an organism’s genome.

🔬 How It Works

Gene editing involves:

- Insertion: Adding a new DNA sequence at a target site.
- Deletion: Removing a specific DNA segment.
- Replacement: Substituting a DNA sequence with another.

This enables controlled changes in an organism’s traits.

🔬 Example

Using CRISPR-Cas9, a faulty gene in a plant or animal can be replaced with a functional version, improving disease resistance or correcting genetic disorders.

🧠 Key Takeaways
Gene editing is precise and targeted, unlike traditional genetic engineering.
It allows specific modifications rather than random insertion of genes.
Applications include medicine, agriculture, and research for improving traits or correcting mutations.

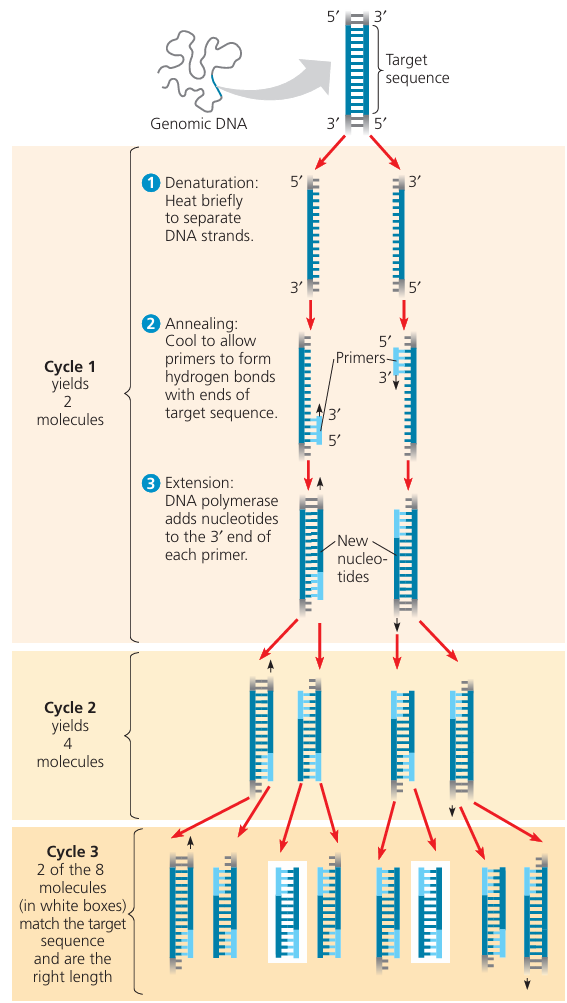

Polymerase Chain Reaction (PCR)

🌱 Introduction

PCR is a technique used to clone and amplify specific DNA sequences.
It allows scientists to produce millions of copies of a DNA fragment in a short time.

🔬 Steps Involved in PCR

Denaturation
- The double-stranded DNA is heated to ~94–98°C.
- This breaks hydrogen bonds, separating the DNA into two single strands.
Annealing
- The reaction is cooled to ~50–65°C.
- Short DNA primers bind (anneal) to the specific target sequences on each single strand.
Extension (Elongation)
- Temperature is raised to ~72°C, optimal for Taq polymerase.
- Taq polymerase adds complementary nucleotides to the primers, synthesising new DNA strands.
Cycle Repetition
- The process is repeated for 20–40 cycles, doubling the DNA each time.
- Results in exponential amplification of the target DNA sequence.

🔬 Role of Taq Polymerase

Taq polymerase is a heat-stable enzyme from the bacterium Thermus aquaticus.
It resists the high temperatures used during denaturation, allowing DNA synthesis without being denatured.
Enables efficient and continuous DNA amplification through multiple PCR cycles.

🧠 Key Takeaways
PCR is a fast and powerful method for cloning DNA.
Steps: Denaturation → Annealing → Extension → Repeat cycles.
Taq polymerase is critical because it survives high temperatures and synthesises new DNA.
Applications include genetic research, diagnostics, forensics, and medical testing.

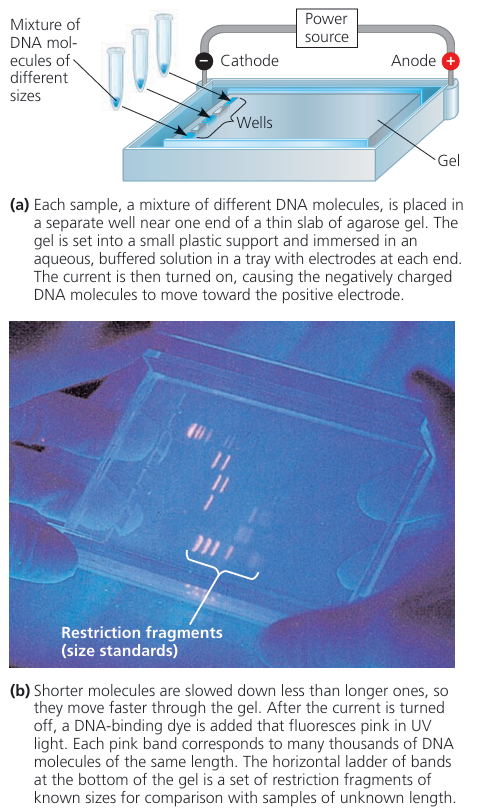

Gel Electrophoresis

🌱 Introduction

Gel electrophoresis is a technique used to separate DNA fragments based on their size.
It allows scientists to analyse and compare DNA samples after restriction digestion or PCR.

🔬 How It Works

Preparation of the Gel
- A gel matrix (usually agarose) is prepared and poured into a tray with wells.
- DNA samples are mixed with a loading dye and placed in the wells.
Application of Electric Current
- The gel is placed in a buffer solution and connected to a power supply.
- DNA fragments are negatively charged due to their phosphate backbone.
- When the current is applied, DNA migrates toward the positive electrode.
Separation of Fragments
- Smaller fragments move faster and travel farther through the gel matrix.
- Larger fragments move slower and remain closer to the wells.
Visualisation
- DNA fragments are stained with a dye such as ethidium bromide or GelRed.
- Under UV light, the DNA fragments are visible as distinct bands.

🔬 Applications

Comparing DNA fragments from restriction enzyme digestion.
Checking the size of PCR products.
DNA fingerprinting in forensic science.

🧠 Key Takeaways
Gel electrophoresis separates DNA fragments by size, with smaller fragments traveling faster.
DNA migration is driven by negative charge and electric current.
The technique is essential for DNA analysis, cloning verification, and genetic research.

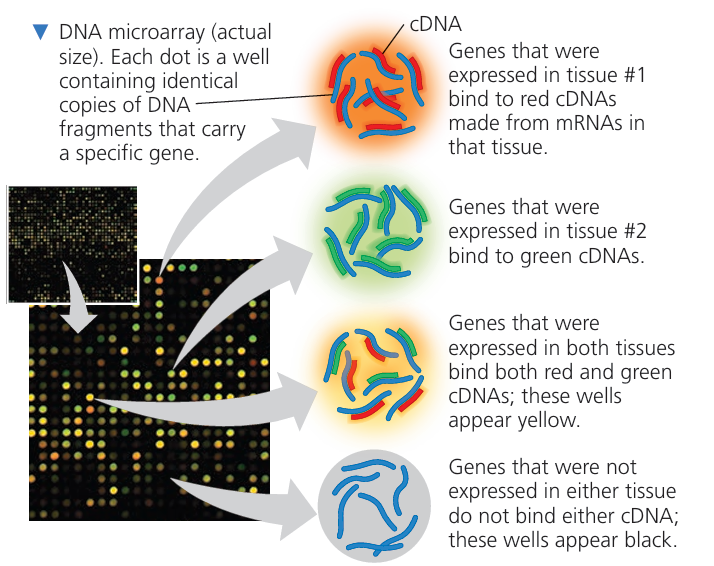

Microarrays

🌱 Introduction

Microarrays are tools used to study many genes simultaneously.
They help in genome analysis and in measuring gene expression by detecting mRNA.

🔬 How Microarrays Work

Genome Analysis
- Thousands of DNA fragments (probes) are fixed on a solid surface in a grid pattern.
- Fluorescently labeled DNA from a sample is washed over the microarray.
- DNA sequences in the sample that match the probes bind to them.
- Fluorescence indicates the presence of specific genes in the genome.
Detecting mRNA for Gene Expression
- mRNA from cells is converted into complementary DNA (cDNA) and labeled with a fluorescent dye.
- cDNA is applied to the microarray; it binds to matching probes.
- The fluorescence intensity shows the level of gene expression.
- Allows comparison of gene activity in different tissues, conditions, or treatments.

🔬 Applications

Identifying mutations or gene presence in genomes.
Studying gene expression patterns in health and disease.
Comparing differential expression between normal and diseased cells.

🧠 Key Takeaways
Microarrays are high-throughput tools for genome analysis and gene expression studies.
They rely on complementary binding between DNA/cDNA and probes.
Fluorescent signals provide quantitative information about gene presence and activity.

Benefits of Biological Databases

🌱 Introduction

Biological databases store nucleotide sequences of genes, genomes, and protein sequences/structures.
They are essential tools for research, analysis, and biotechnology applications.

🔬 Benefits

Easy Access to Data
- Researchers can quickly retrieve gene and protein sequences from anywhere in the world.
- Reduces the need for repetitive experiments.
Comparative Analysis
- Enables comparison of sequences between species.
- Helps identify homologous genes, evolutionary relationships, and conserved regions.
Understanding Protein Function
- Protein sequence and structure databases allow prediction of protein function and interaction.
- Assists in drug design and biotechnology research.
Facilitates Genetic Research
- Supports gene cloning, genetic engineering, and genome mapping.
- Helps identify mutations, polymorphisms, and disease-related genes.
Integration with Computational Tools
- Databases can be linked to bioinformatics software for sequence alignment, modeling, and analysis.
- Enables high-throughput research and large-scale studies.

🧠 Key Takeaways
Biological databases save time, reduce costs, and provide accurate information.
They support research in genetics, genomics, proteomics, and evolutionary biology.
Critical for modern molecular biology, medicine, and biotechnology applications.

CIE AS/A Level Biology -19.1 Principles of genetic technology- Study Notes

CIE AS/A Level Biology -19.1 Principles of genetic technology- Study Notes- New Syllabus
