Kirchhoff’s Loop Rule

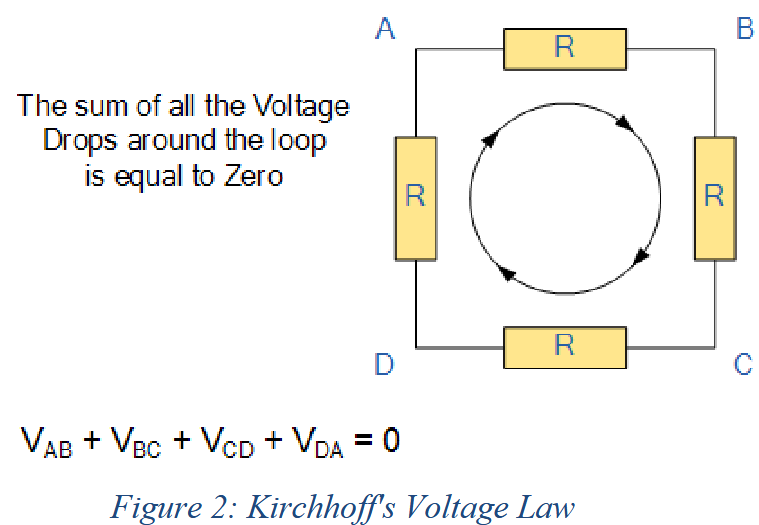

Kirchhoff’s loop rule is based on the conservation of energy. It states that in any closed circuit loop, the total change in electric potential is zero, since a charge that completes a loop returns to the same potential from which it started.

Relevant Equation:

\( \mathrm{\sum \Delta V = 0} \)

  • \(\mathrm{\Delta V}\) = potential difference across each circuit element
  • Sum taken over one complete closed loop

Interpretation:

  • As charges move through elements like batteries, resistors, or capacitors, they gain or lose electric potential energy.
  • A battery provides an increase in potential (\(+\mathcal{E}\)).
  • Resistors represent a decrease in potential (\(-IR\)).
  • The total around the loop must sum to zero because no net energy is gained or lost after a full loop traversal.

Graphical Representation:

  • Potential at points in a circuit loop can be plotted as a function of position.
  • The graph shows increases at sources (like batteries) and decreases across resistors or loads.

Key Idea: Kirchhoff’s loop rule ensures energy conservation in electrical circuits: energy supplied by sources is equal to the energy dissipated or stored in circuit elements.

Example

A \(12 \, V\) battery is connected in series with two resistors of \(4.0 \, \Omega\) and \(8.0 \, \Omega\). Use Kirchhoff’s loop rule to find the current in the circuit.

▶️ Answer/Explanation

Step 1: Loop equation: \( \mathrm{+\mathcal{E} – I R_1 – I R_2 = 0} \).

Step 2: Substitute: \( \mathrm{12 – I(4.0) – I(8.0) = 0} \).

Step 3: Simplify: \( \mathrm{12 = 12I} \quad \Rightarrow \quad I = 1.0 \, A} \).

Final Answer: The current in the loop is \( \mathrm{1.0 \, A} \).

Example

A \(9.0 \, V\) battery is connected across three series resistors of \(1.0 \, \Omega\), \(2.0 \, \Omega\), and \(3.0 \, \Omega\). Use Kirchhoff’s loop rule to find the voltage drop across each resistor.

▶️ Answer/Explanation

Step 1: Loop equation: \( \mathrm{+\mathcal{E} – IR_1 – IR_2 – IR_3 = 0} \).

Step 2: Total resistance: \( \mathrm{R_{total} = 1 + 2 + 3 = 6 \, \Omega} \).

Step 3: Current: \( \mathrm{I = \dfrac{V}{R_{total}} = \dfrac{9}{6} = 1.5 \, A} \).

Step 4: Voltage drops: \( \mathrm{V_1 = I R_1 = (1.5)(1.0) = 1.5 \, V} \). \( \mathrm{V_2 = (1.5)(2.0) = 3.0 \, V} \). \( \mathrm{V_3 = (1.5)(3.0) = 4.5 \, V} \).

Step 5: Check: \( 1.5 + 3.0 + 4.5 = 9.0 \, V \) = battery emf ✅

Final Answer: Voltage drops: \( \mathrm{1.5 \, V, \; 3.0 \, V, \; 4.5 \, V} \).
