AP® Physics C: E&M - Conservation of Electric Charges and Process of Charging - MCQs
Questions
A spherical conductor is on an insulating stand, as shown in the figure above. A negatively charged rod is brought close to the sphere but does not touch the sphere. Which of the following describes the resulting charge on the sphere?
(A) Positive
(B) Negative
(C) No net charge, but the sphere is polarized with positive charge on the left side.
(D) No net charge, but the sphere is polarized with negative charge on the left side.
(E) No net charge and no polarization
▶️Answer/Explanation
Ans: C
Questions
Three identical conducting spheres are mounted on insulating handles, as shown above. Spheres I and II have equal charges of +Q and are separated by a fixed distance. They repel each other with an electrostatic force of magnitude F. Sphere III, initially uncharged, is first touched to sphere I, then to sphere II, and then removed. If the charge distribution on each sphere is assumed to always be spherical, the new magnitude of the electrostatic force between spheres I and II is
▶️Answer/Explanation
Ans: E
When sphere III, which is initially uncharged, is touched to sphere I, it will share the charge equally with sphere I. Similarly, when sphere III is touched to sphere II, the charges will redistribute. We need to find the final charges on spheres I and II and then determine the new electrostatic force between them.
1. Initial Condition:
Spheres I and II each have a charge \(+Q\).
Sphere III has a charge of 0.
2. First Touch:
Sphere III is touched to sphere I.
The total charge between sphere I and sphere III is \(Q + 0 = Q\).
This charge is shared equally because the spheres are identical, so each will have a charge of \(\frac{Q}{2}\).
After the first touch:
Sphere I: \(\frac{Q}{2}\)
Sphere III: \(\frac{Q}{2}\)
Sphere II: \(Q\)
3. Second Touch:
Sphere III (now with charge \(\frac{Q}{2}\)) is touched to sphere II (with charge \(Q\)).
The total charge between sphere II and sphere III is \(Q + \frac{Q}{2} = \frac{3Q}{2}\).
This charge is shared equally, so each will have a charge of \(\frac{3Q}{4}\).
After the second touch:
Sphere I: \(\frac{Q}{2}\) (unchanged from the first touch)
Sphere II: \(\frac{3Q}{4}\)
Sphere III: \(\frac{3Q}{4}\)
New Force Calculation:
The new charges on sphere I and sphere II are \(\frac{Q}{2}\) and \(\frac{3Q}{4}\), respectively.
The electrostatic force between two charges \(q_1\) and \(q_2\) separated by a distance \(r\) is given by Coulomb’s law:
\[
F = k_e \frac{q_1 q_2}{r^2}
\]
Initially, the force \(F\) is given by:
\[
F = k_e \frac{Q \cdot Q}{r^2} = k_e \frac{Q^2}{r^2}
\]
With the new charges, the force \(F’\) is:
\[
F’ = k_e \frac{\left(\frac{Q}{2}\right) \left(\frac{3Q}{4}\right)}{r^2} = k_e \frac{\frac{3Q^2}{8}}{r^2} = \frac{3}{8} \left( k_e \frac{Q^2}{r^2} \right) = \frac{3}{8} F
\]
The new magnitude of the electrostatic force between spheres I and II is: \[ \frac{3}{8} F \]
Question

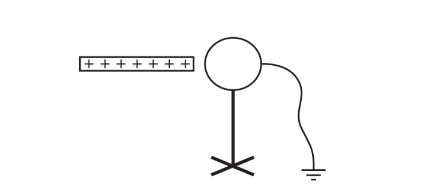

A grounded spherical conductor is on an insulating stand. A positively charged rod is brought close to the sphere but does not touch the sphere, as shown above. The rod is moved far away and then the grounding wire is removed. Which of the following describes the resulting charge on the sphere?
(A) Positive
(B) Negative
(C) No net charge, but it is polarized with positive charges on the left side of the sphere
(D) No net charge, but it is polarized with negative charges on the left side of the sphere
(E) No net charge and no polarization
Answer/Explanation
Ans:E. As the positively charged rod is brought near the left side of the grounded spherical conductor, charge separation in the neutral sphere is induced and negative charges move toward the left side of the sphere. However, when the positively charged rod is moved far away from the sphere, the charges will move back to reestablish a neutral sphere and excess negative charges will flow back to the ground. Since the sphere is ungrounded after the rod is removed, the sphere is back to having no net charge and no polarization.
