CIE IGCSE Physics (0625) Consequences of energy transfer Study Notes - New Syllabus
CIE IGCSE Physics (0625) Consequences of energy transfer Study Notes
LEARNING OBJECTIVE
- Understanding the concepts of Consequences of energy transfer
Key Concepts:
- Basic everyday Applications and Consequences of Conduction, Convection, and Radiation
Basic everyday Applications and Consequences of Conduction, Convection, and Radiation
(a) Heating Objects Such as Kitchen Pans Process Involved: Conduction (and a bit of radiation)
Application: Cooking food using metal pans on a stove
- When a metal pan is placed on a stove, heat is transferred from the burner into the base of the pan by conduction.
- Metals are good conductors because they have free electrons that transfer thermal energy quickly through the pan.
- This allows the heat to spread evenly across the bottom of the pan and into the food inside.
- In some cases, the lid or surface may also gain heat via thermal radiation (infrared) from the stove or hot air.
Consequence:
- Pans heat up quickly and cook food efficiently, but their handles (if also metal) can become dangerously hot unless insulated.
- This is why many pans have plastic or wooden handles, which are poor thermal conductors (thermal insulators).

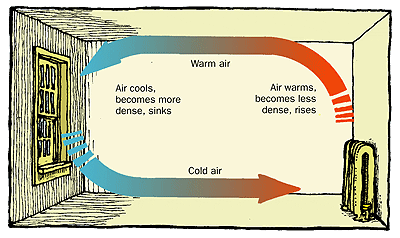

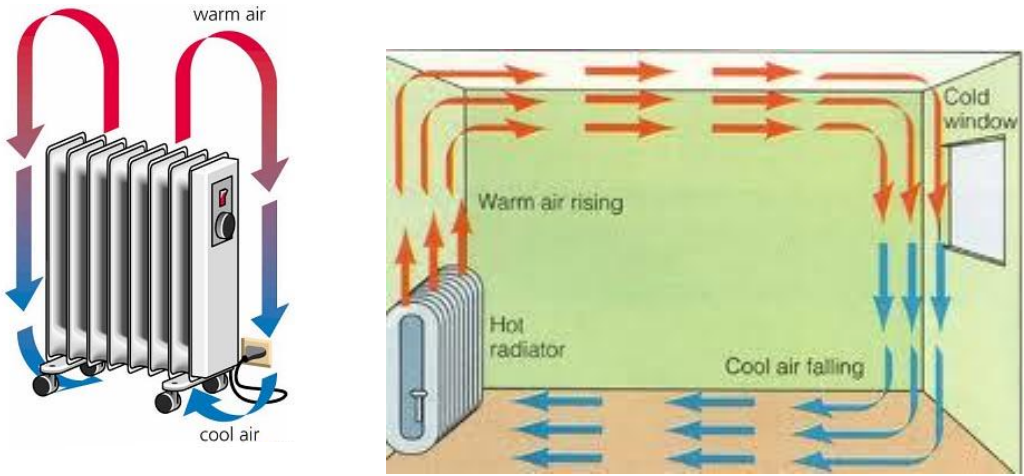

(b) Heating a Room by Convection Process Involved: Convection (in air)
Application: Using an electric or gas heater placed on the floor of a cold room
- The heater warms the air nearby, giving the particles more kinetic energy.
- The warm air becomes less dense and rises to the top of the room.
- Cooler, denser air sinks to the bottom, where it is heated again.
- This forms a convection current that circulates warm air throughout the room.
Consequence:
- The room gradually becomes warmer, but often the top gets warmer faster than the bottom.
- This is why ceiling fans may be used in reverse during winter to push warm air down and improve heat distribution.
Energy Transfer Methods Involved: Conduction + Convection + Radiation

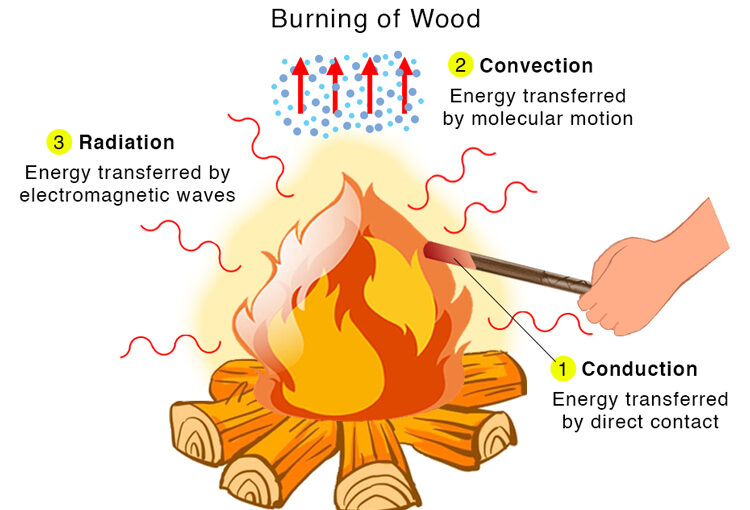

(a) A Fire Burning Wood or Coal
Energy Transfer Methods Involved: Conduction + Convection + Radiation
1. Conduction:
- Heat travels from the burning region of the wood/coal into the unburned parts by conduction through the solid fuel.
- This raises the temperature of nearby fuel, causing it to ignite.
2. Convection:
- Hot air and gases produced by the fire rise due to convection (less dense, hot gases move upward).
- This carries smoke and hot air upwards, often through a chimney or into the open air.
- Cooler air is drawn in from below to keep the fire burning (convection current).
3. Radiation:
- The fire emits infrared radiation (IR) in all directions.
- This thermal radiation transfers energy directly to nearby people or objects without needing particles.
- You can feel the warmth of a fire even if you’re not in contact with the hot air—this is radiation.
Consequence:
- The fire heats nearby people and surroundings through radiation.
- Hot air rising carries smoke and gases, possibly causing indoor air pollution if not properly vented.
- Conduction within the fuel helps sustain the burning process.
(b) A Radiator in a Car
Energy Transfer Methods Involved: Conduction + Convection + Radiation
1. Conduction:
- The engine becomes very hot due to combustion.
- Heat is transferred by conduction from the engine block into the coolant (usually water or antifreeze) inside the radiator system.
2. Convection:
- Hot coolant flows from the engine to the radiator through pipes.
- Inside the radiator, heat from the hot coolant is transferred to the metal walls of the radiator.
- Then, air moving across the radiator (either from a fan or the car’s motion) removes heat by convection.
3. Radiation:
- Some of the radiator’s heat is lost directly to the surroundings by infrared radiation from its surface.
- This is especially important when the car is stationary and airflow is low.
Consequence:
- Efficient cooling of the engine prevents overheating.
- All three methods are essential: conduction gets heat out of the engine, convection moves it away using airflow, and radiation adds passive cooling.
- Failing radiator systems can lead to engine damage and performance issues.
