Question 1: Flower Perimeter Using Geometric Transformations

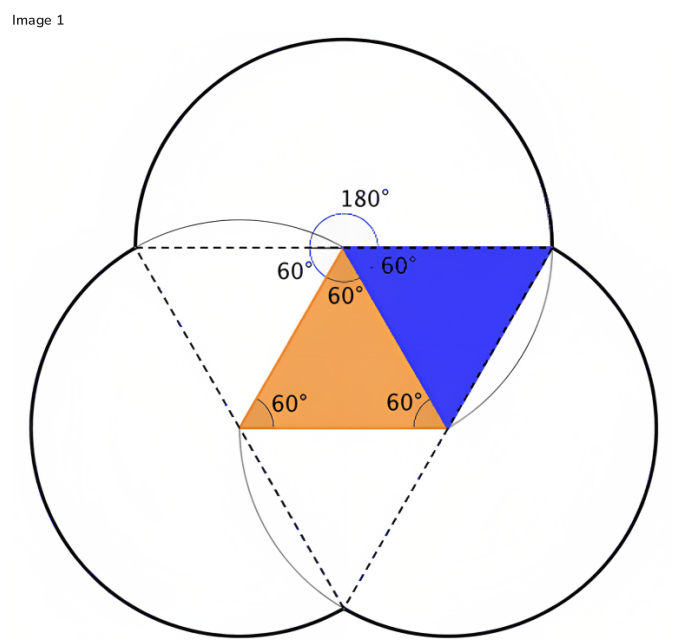

a Flower with Equilateral Triangles
Show that the perimeter of the flower equals \(3\pi a\) units.
▶️ Answer/Explanation
Each petal is a semicircular arc with radius \(a\).
Arc length per petal = \(\pi a\).
Total perimeter = \(3 \times \pi a = 3\pi a\).

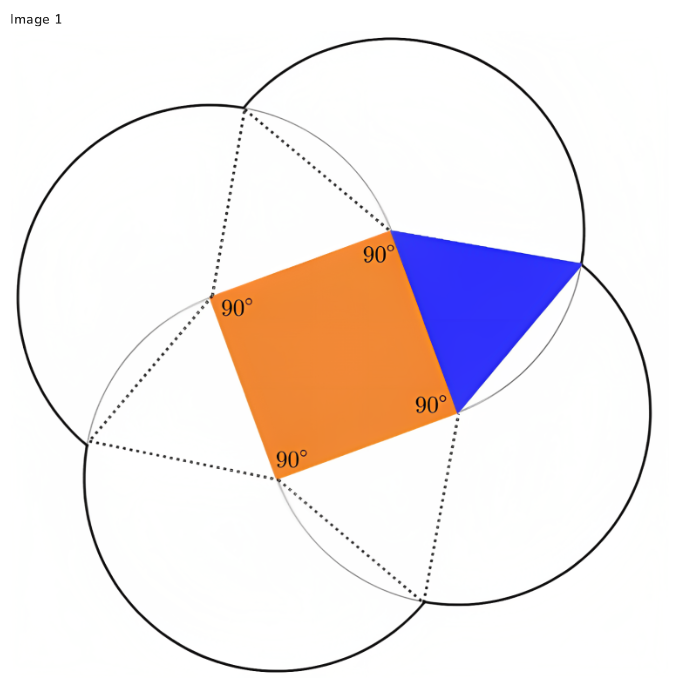

b Flower with Triangle and Square
Q1.2: The side length of the square is 9 units. Determine the perimeter of the flower correct to two decimal places.
▶️ Answer/Explanation

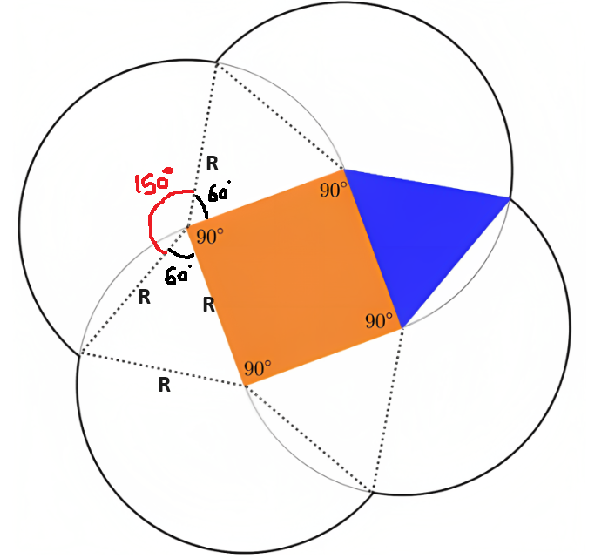

Each petal corresponds to a 150° arc with radius 9 units.
Arc length per petal = \(\frac{150}{360} \times 2\pi \times 9 = 7.5\pi\).
Total perimeter = \(4 \times 7.5\pi = 30\pi \approx 94.25\) units.
Syllabus Reference
Unit 4: Geometry
- Identical representation of transformations
Assessment Criteria: C (Applying mathematics in real-world contexts)
