Characteristics of sound

Characteristics of Sound

Sound is a form of longitudinal wave produced by vibrating objects and travels through a medium (air, water, solids).

Its main characteristics are:

    • Pitch (Frequency)
    • Loudness (Amplitude)
    • Quality or Timbre (Waveform)
    • Speed of sound (Depends on medium)

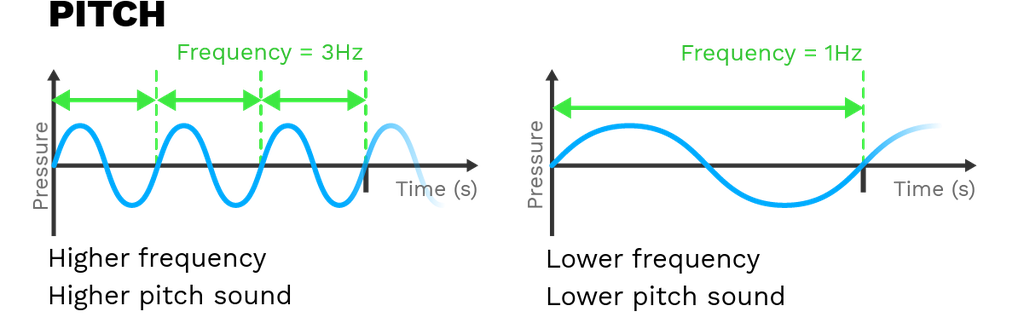

1. Pitch (Depends on Frequency)

    • Pitch tells us whether a sound is “high” (shrill) or “low” (deep).
    • It depends on the frequency of vibration of the sound wave.

\( f = \dfrac{1}{T} \)

  • Higher frequency → higher pitch (e.g., whistle, mosquito buzz).
  • Lower frequency → lower pitch (e.g., drum beats, man’s voice).

2. Loudness (Depends on Amplitude)

  • Loudness is how “strong” or “soft” a sound appears to our ears.
  • It depends on the amplitude of vibration of the sound wave.
  • Greater amplitude → louder sound.
  • Loudness is measured in decibels (dB).
  • Example: Whisper ≈ 30 dB, Conversation ≈ 60 dB, Rock Concert ≈ 120 dB.

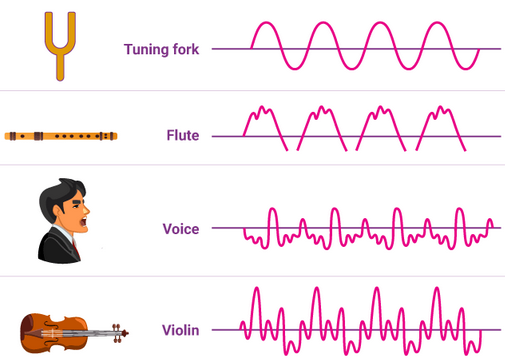

3. Quality or Timbre (Depends on Waveform)

  • Quality (or timbre) is the property of sound that allows us to distinguish between two sounds of the same pitch and loudness but produced by different sources.
  • It depends on the waveform of the sound wave.
  • Example: The same note played on a violin and a flute sounds different because of waveform differences.

4. Speed of Sound

  • The speed of sound depends on the medium and its temperature.
  • In air at room temperature (20°C): ~340 m/s.
  • In water: ~1500 m/s.
  • In steel: ~5000 m/s.
  • Sound travels faster in solids, slower in liquids, and slowest in gases.

Example:

A guitar string vibrates at 400 Hz while a drum vibrates at 100 Hz. Which produces a higher-pitched sound?

▶️ Answer/Explanation

Pitch depends on frequency.

400 Hz (guitar) > 100 Hz (drum).

Final Answer: \(\boxed{\text{Guitar produces a higher pitch}}\)

Example:

If two sound waves have the same frequency but one has twice the amplitude, which will sound louder?

▶️ Answer/Explanation

Loudness depends on amplitude.

Wave with twice the amplitude → louder sound.

Final Answer: \(\boxed{\text{The wave with twice the amplitude sounds louder}}\)

Example:

A singer and a flute play the same note at the same loudness. Why do they still sound different?

▶️ Answer/Explanation

Quality depends on waveform.

Flute and singer produce different waveforms, even with same pitch and loudness.

Final Answer: \(\boxed{\text{Because of difference in timbre (waveform)}}\)
