The Quadratic Function: \( f(x) = ax^2 + bx + c \)
A quadratic function is a polynomial function of degree 2. It has the general form:
\( f(x) = ax^2 + bx + c \), where \( a \ne 0 \)
Graph of a Quadratic Function
The graph of a quadratic function is a parabola:
- Opens upward if \( a > 0 \)
- Opens downward if \( a < 0 \)
The shape is symmetrical and curved
Y-Intercept
When \( x = 0 \), we find the y-intercept:
\( f(0) = a(0)^2 + b(0) + c = c \)
Thus, the y-intercept is at the point \( (0, c) \).
Axis of Symmetry
The graph of a quadratic is symmetric about a vertical line called the axis of symmetry.
The formula to find the axis of symmetry is:
\( x = -\frac{b}{2a} \)
This is the x-value where the parabola reaches its maximum or minimum (its vertex).
Example: Consider the quadratic function:
\( f(x) = 2x^2 – 4x + 1 \)
▶️Answer/Explanation
Y-intercept: Set \( x = 0 \):
\( f(0) = 2(0)^2 – 4(0) + 1 = 1 \)
→ Y-intercept = (0, 1)
Axis of symmetry: Use the formula \( x = -\frac{b}{2a} \):
\( x = -\frac{-4}{2(2)} = \frac{4}{4} = 1 \)
→ Axis of symmetry: \( x = 1 \)
Vertex: Use \( x = 1 \), find \( f(1) \):
\( f(1) = 2(1)^2 – 4(1) + 1 = 2 – 4 + 1 = -1 \)
→ Vertex = (1, -1)
Shape of graph: Since \( a = 2 > 0 \), the parabola opens upward.

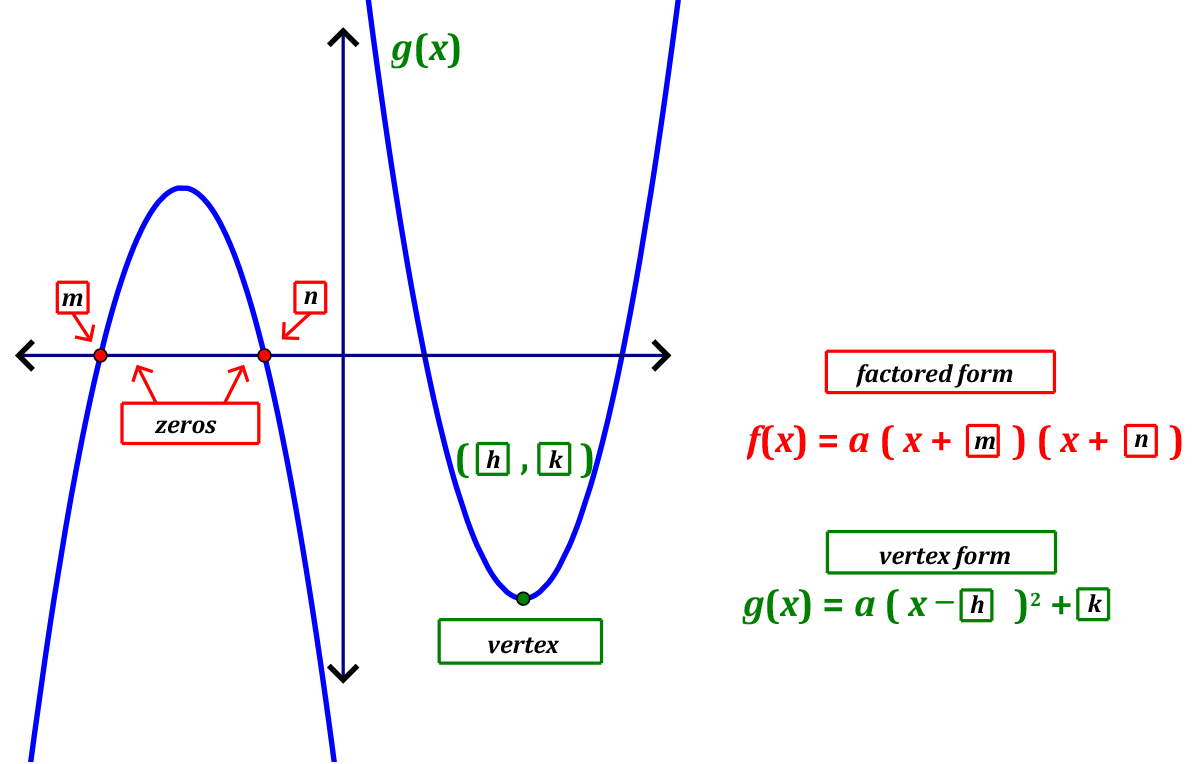

Different Forms of a Quadratic Function
Factored Form of a Quadratic Function
The quadratic function can be written in the factored form:
\( f(x) = a(x – p)(x – q) \)
- \( a \): determines the direction and width of the parabola (if \( a > 0 \), it opens upward; if \( a < 0 \), downward)
- \( p \) and \( q \): are the x-intercepts (or roots) of the function
- Vertex: lies halfway between \( p \) and \( q \):
\( x = \frac{p + q}{2} \)
Vertex Form of a Quadratic Function
The quadratic function can be expressed in vertex form as:
\( f(x) = a(x – h)^2 + k \)
- \( a \): controls the direction and width of the parabola.
- \( h \) and \( k \): represent the vertex of the parabola.
- The axis of symmetry is the vertical line \( x = h \).
- The graph opens:
- Upward if \( a > 0 \)
- Downward if \( a < 0 \)
Example: Consider the quadratic function:
\( f(x) = 2(x – 1)(x – 3) \)
▶️Answer/Explanation
X-intercepts (roots):
Set each factor to 0:
\( x – 1 = 0 \Rightarrow x = 1 \)
\( x – 3 = 0 \Rightarrow x = 3 \)
→ X-intercepts: (1, 0) and (3, 0)
Vertex:
\( x = \frac{1 + 3}{2} = 2 \)
\( f(2) = 2(2 – 1)(2 – 3) = 2(1)(-1) = -2 \)
→ Vertex = (2, -2)
Y-intercept:
Set \( x = 0 \): \( f(0) = 2(-1)(-3) = 6 \)
→ Y-intercept = (0, 6)
Shape:
Since \( a = 2 > 0 \), the parabola opens upward.
Example: Consider the function:
\( f(x) = 3(x – 2)^2 – 5 \)
▶️Answer/Explanation
Vertex:
The form \( f(x) = a(x – h)^2 + k \) gives vertex = \( (h, k) \)
→ \( h = 2, \quad k = -5 \)
→ Vertex = (2, -5)
Y-intercept:
Set \( x = 0 \):
\( f(0) = 3(0 – 2)^2 – 5 = 3(4) – 5 = 12 – 5 = 7 \)
→ Y-intercept = (0, 7)
Axis of Symmetry:
\( x = h = 2 \)
Shape:
Since \( a = 3 > 0 \), the parabola opens upward.
Example: Convert the quadratic function \( f(x) = x^2 – 4x – 5 \) into:
- Factorised form
- Vertex (completed square) form
▶️Answer/Explanation
Factorised Form
Factor the quadratic:
\( f(x) = x^2 – 4x – 5 = (x – 5)(x + 1) \)
Factorised form: \( f(x) = (x – 5)(x + 1) \)
Vertex Form (Complete the Square)
Start from the standard form:
\( f(x) = x^2 – 4x – 5 \)
Group and complete the square:
\( f(x) = (x^2 – 4x + 4) – 4 – 5 = (x – 2)^2 – 9 \)
→ Vertex form: \( f(x) = (x – 2)^2 – 9 \)
→ Vertex: \( (2, -9) \)
Connections Between Quadratic Functions and Physics
1. Kinematics:
The displacement of an object under constant acceleration follows a quadratic relationship:
\( s(t) = ut + \frac{1}{2}at^2 \)
- \( s(t) \): displacement as a function of time
- \( u \): initial velocity
- \( a \): constant acceleration
2. Projectile Motion:
The vertical position of a projectile is modeled by a quadratic function:
\( y(t) = v_0 \sin(\theta)t – \frac{1}{2}gt^2 \)
- \( v_0 \): initial speed
- \( \theta \): angle of projection
- \( g \): acceleration due to gravity
This results in a parabolic path for the projectile.
3. Simple Harmonic Motion (SHM):
The position of an object in SHM is modeled by:
\( x(t) = A \cos(\omega t + \phi) \) or \( x(t) = A \sin(\omega t + \phi) \)
- \( A \): amplitude
- \( \omega \): angular frequency
- \( \phi \): phase shift
Although SHM is not quadratic in form, the energy relationships (e.g., potential energy vs. displacement) involve quadratic expressions:
\( E_{PE} = \frac{1}{2}kx^2 \)
