Question

Organizations such as Earth.Org have raised concerns about the rate of sea level increase for Nauru. They stated, “Sea level rise is 2 to 3 times faster around Nauru than the global average, putting its freshwater supplies and crops at risk of saltwater contamination. Already reliant on economic aid, Nauru’s basic resource needs may have to be acquired externally for life to be sustained on the island.”

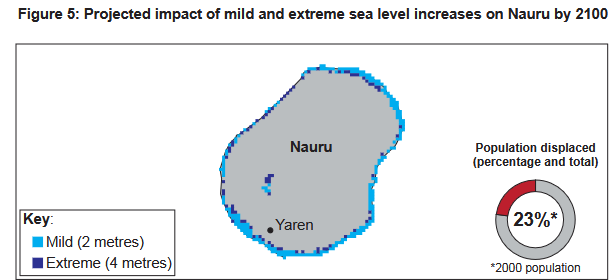

The 2D visualisation in Figure 5 shows the projected impact of mild and extreme sea level increases on Nauru by 2100.

(a) Define the term visualization. [1]

There are proposals to develop a 3D visualization of the impact of rising sea levels on Nauru.

(b) Outline the relationship between images stored in memory and 3D visualizations. [2]
(c) Discuss the time and memory considerations of 3D animation in the proposed 3D visualization for Nauru. [5]

Most-appropriate topic code

• A1.1: Computer hardware and operation — parts (a), (b) and (c)
▶️ Answer/Explanation

(a)
For the correct answer:

A visualization is a graphical representation of data.

Explanation: Visualization presents data or information in a visual form so that patterns, relationships, and other features can be understood more easily.

(b)
For the correct answer:

  • An image stored in memory can be represented as a mathematical model.
  • The image data is then rendered to create the 3D visualization.

Explanation: A 3D visualization is generated from mathematical representations of objects, surfaces, and other visual information. The computer processes these representations and renders them to produce the final visual output.

(c)
For the correct answer:

Time considerations:

  • 3D animation is complex in terms of programming and processing.
  • Rendering the different frames and visual elements requires significant processing time.

Memory considerations:

  • Rendering different layers, objects, frames, and transitions requires a large amount of RAM.
  • Secondary memory and/or GPU memory may also be required to store and process the visual data.
  • Different types of memory have different processing speeds, which can affect the overall performance of the visualization.

Evaluation:

Therefore, the proposed 3D animation requires sufficient and sufficiently fast primary and secondary memory, together with adequate processing capability, to render the visualization efficiently.

Explanation: A 3D animation contains many visual elements that must be processed and rendered. Increasing the complexity of the animation can increase both the processing time and the amount of memory required. Insufficient memory can cause data to be transferred more frequently between memory levels, reducing performance.
