Diffraction through a single-slit and around objects
∙If a wave meets a hole in a wall that is of comparable size to its wavelength, the wave will be bent through a process called diffraction.
∙If the aperture (hole, opening, etc.) is much larger than the wavelength, diffraction will be minimal to nonexistent.
FYI ∙
Diffraction is caused by objects within the medium that interact with the wave. It is not caused by two mediums and their boundary.
∙Christian Huygens explained the behavior of diffraction through his famous principle:
“Every point on a wavefront emits a spherical wavelet of the same velocity and wavelength as the original wave.”
∙Note that it is because of Huygen’s principle the waves can turn corners.
The reason waves can turn corners is that the incoming wave transmits a disturbance by causing the medium to vibrate.
∙And wherever the medium vibrates it becomes the center of a new wave front as illustrated to the right.
∙Note that the smaller the aperture b the more pronounced the diffraction effect.
FYI ∙
The aperture size must be of the order of a wavelength in order for diffraction to occur.
Path difference

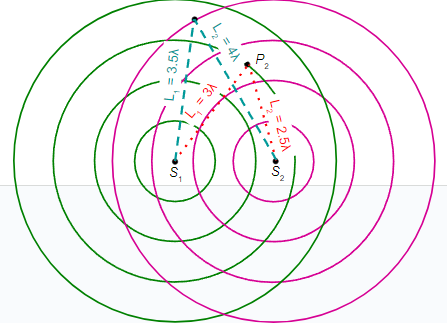

∙This animation showing two coherent (in-phase and same frequency) wave sources S1 and S2 will show the following:
∙This animation showing two coherent wave sources S1 and S2 will show the following:
Diffraction through a single-slit
∙Huygen’s wavelets not only allow the wave to turn corners, they also interfere with each other.
EXAMPLE:
If light is diffracted by a circular hole, a planar cross-section of the interference looks like the picture below. What will the light look like head-on?
▶️Answer/Explanation
SOLUTION:
∙Picture the waveform of the previous slide in 2D
IB Physics Single-slit diffraction Exam Style Worked Out Questions
In two separate experiments monochromatic light is incident on a single slit. The diagrams show the diffraction patterns obtained on a screen far from the slit. In the top diagram the wavelength of light is \({\lambda _1}\) and the slit width is \({b_1}\). In the bottom diagram the wavelength of light is \({\lambda _2}\) and the slit width is \({b_2}\).
In each experiment the distance between the slit and the screen is the same. Which of the following may be deduced?
A. \(\frac{{{\lambda _1}}}{{{b_1}}} < \frac{{{\lambda _2}}}{{{b_2}}}\)
B. \(\frac{{{\lambda _1}}}{{{b_1}}} > \frac{{{\lambda _2}}}{{{b_2}}}\)
C. \({b_1} < {b_2}\)
D. \({\lambda _1} > {\lambda _2}\)
Answer/Explanation
Markscheme
A
Light is diffracted at a single slit. Which of the following graphs best represents how the intensity I of the diffracted light varies with the diffraction angle θ?
Answer/Explanation
Answer – C
High primary maxima, other maxima slowly decrease
