the main regions of the Hertzsprung–Russell (HR) diagram and how to describe the main properties of stars in these regions
the use of stellar parallax as a method to determine the distance d to celestial bodies as given by
d(parsec) = 1/ p(arc‐second)how to determine stellar radii.
Standard level and higher level: 4 hours
Additional higher level: There is no additional higher level content.
- IB DP Physics 2025 SL- IB Style Practice Questions with Answer-Topic Wise-Paper 1
- IB DP Physics 2025 HL- IB Style Practice Questions with Answer-Topic Wise-Paper 1
- IB DP Physics 2025 SL- IB Style Practice Questions with Answer-Topic Wise-Paper 2
- IB DP Physics 2025 HL- IB Style Practice Questions with Answer-Topic Wise-Paper 2
What is a Parsec? (pc)
- A unit of distance that we use for determining the distance of stars

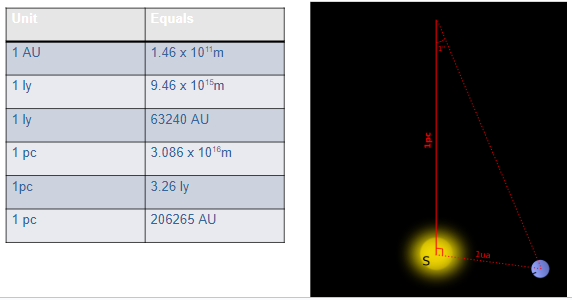

- It is calculated using the diagram here
- It is defined as the length of the adjacent side of an imaginary right triangle in space.
- The two dimensions that specify this triangle are the parallax angle (defined as 1 arcsecond or 1’’) and the opposite side (which is defined as 1 astronomical unit (AU), the distance from the Earth to the Sun).
- Given these two measurements, along with the rules of trigonometry, the length of the adjacent side (the parsec) can be found.
Parsec and Friends
Stellar Parallax

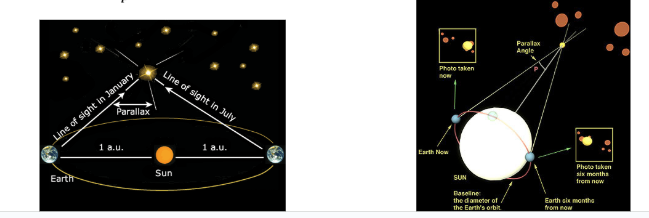

- The apparent shifting of a distant object against a stationary background when viewed from two different perspectives
- Think about looking out of a window with a plant on the sill. As you walk past the window the object will appear to move relative to the background outside.
Parallax
- The shift is very slight relative to the “fixed” stars behind the observed star but sufficient for distant stars… but not too distant (100pc or less).

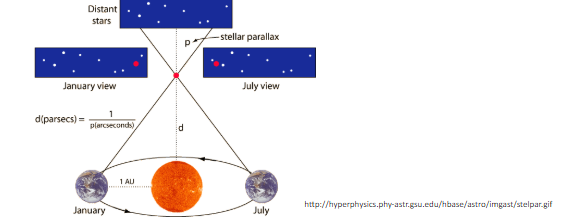

- Formula: $d=\frac{1}{p}$, where d is the distance to the star and p is the parallax angle.
Limitations of the Parallax method
- Stars that are too far away will not show enough parallax to calculate their distance
- Viewing stars from a space-based position helps to eliminate some of the error and increase the range, but at some point the error in the system equals or exceeds the angle being measured
- Beyond that, other methods can be used
Atomic Spectra and You!
- Passing a sufficiently high potential through a tube of a specific gas will cause it to glow, as we see in the fluorescent lights in the classroom

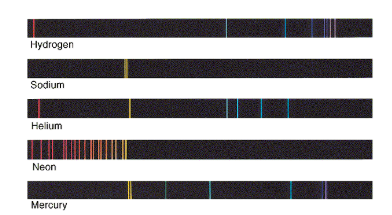

- Different elements produce different discrete spectra, unlike an incandescent light source which produces a continuous range of colors
Emission/Absorption

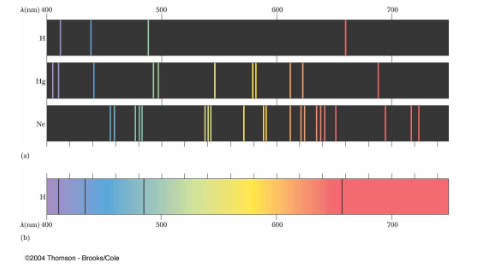

If we shine light from an incandescent source through a tube made of a particular gas, only the wavelengths that would be emitted by that gas are absorbed
Absorption Spectra
Thus, we can determine the surface elements of a star based on the absorption spectrum that we see when we look at that star
Spectral Classification

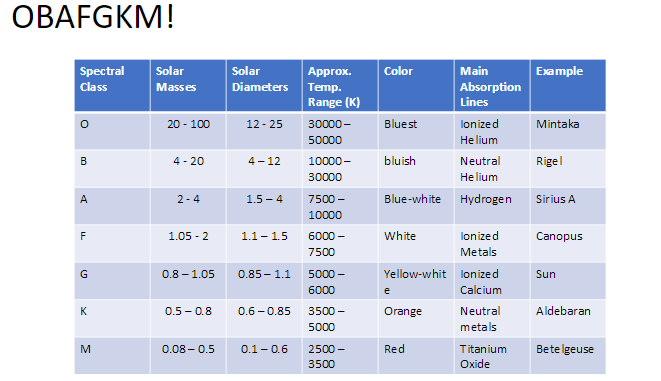

- Stars with similar spectra are grouped together into spectral classes, which relates directly to their surface temperatures.
- Temperature influences a star’s ability to ionize or excite the atoms of its surface elements, thus impacting the spectrum we see
- Regardless of class, all stars are essentially 71% H, 27% He, and 1% other
Wien’s Displacement Law
- Wien discovered an empirical relationship between the maximum value of the wavelength emitted by a black body and its temperature which can be stated as:
- This law applies to the spectra of stars as well, which means that we can use Wien’s Law to find the temperature of a star based on the spectra of radiation that it emits
- Given that we can measure find a star’s luminosity as well, we can actually use the S-B Law for the more practical purpose of determining the radius of a star.
IB Physics Stellar properties and the Hertzsprung-Russell diagram Exam Style Worked Out Questions
Question

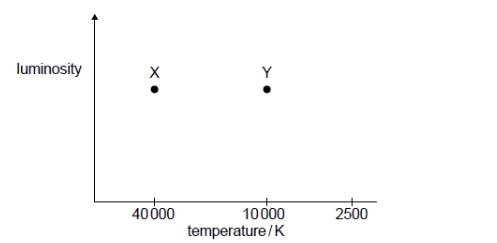

The Hertzsprung-Russell diagram shows two stars, $\mathrm{X}$ and $\mathrm{Y}$.
What is $\frac{\text { radius of } X}{\text { radius of } Y}$ ?
A. $\frac{1}{16}$
B. $\frac{1}{4}$
C. 4
D. 16
▶️Answer/Explanation
Ans:A
