Structure 2.4.6 — Condensation Polymers: Polyamides and Polyesters

Structure 2.4.6 — Condensation Polymers: Polyamides and Polyesters

Condensation polymers are formed when monomers with two functional groups react to form a long-chain polymer, with the elimination of a small molecule such as water (\( \text{H}_2\text{O} \)) or hydrogen chloride (\( \text{HCl} \)).



Monomer Requirements:

  • Each monomer must have two reactive functional groups.
  • Common functional groups: carboxylic acids (\( -\text{COOH} \)), alcohols (\( -\text{OH} \)), amines (\( -\text{NH}_2 \)).

Types of Condensation Polymers:

  • Polyesters: Formed from diols and dicarboxylic acids (or esters).
  • Polyamides: Formed from diamines and dicarboxylic acids (or amino acids).

1. Polyesters:

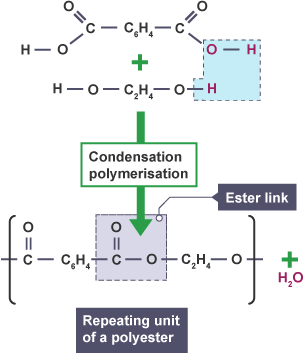

Formed by ester linkages (\( -\text{COO}- \)) between a dicarboxylic acid and a diol, with the loss of water.

General reaction:

\( n \text{HO-R-OH} + n \text{HOOC-R’-COOH} \rightarrow [-\text{O-R-OCO-R’-CO}-]_n + 2n\text{H}_2\text{O} \)

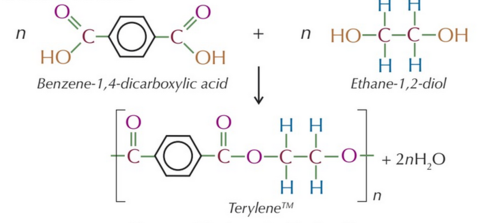

Example: Terylene (PET) from ethane-1,2-diol and benzene-1,4-dicarboxylic acid.

2. Polyamides:

Formed by amide linkages (\( -\text{CONH}- \)) between a dicarboxylic acid and a diamine, with the loss of water.

General reaction:

\( n \text{H}_2\text{N-R-NH}_2 + n \text{HOOC-R’-COOH} \rightarrow [-\text{NH-R-NHCO-R’-CO}-]_n + 2n\text{H}_2\text{O} \)

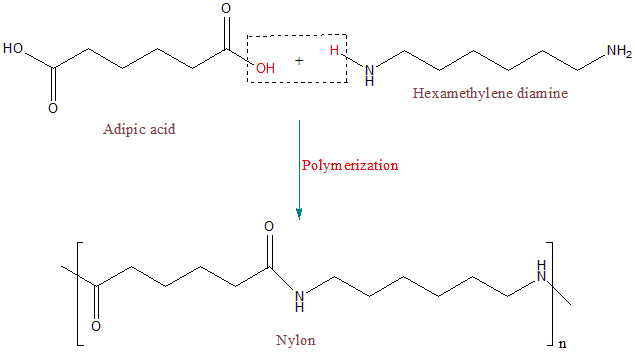

Example: Nylon-6,6 from hexamethylenediamine and adipic acid.

Properties of Condensation Polymers:

  • Stronger intermolecular forces (often hydrogen bonding).
  • Higher melting points than addition polymers.
  • Often biodegradable (especially polyesters).

Example

Identify the repeating unit of the polyester formed from ethane-1,2-diol and propanedioic acid.

▶️Answer/Explanation

The ester linkage is formed between the OH group of the diol and the COOH group of the dicarboxylic acid, with loss of water.

Repeating unit:

\( [-\text{OCH}_2\text{CH}_2\text{OCOCH}_2\text{CO}-]_n \)

Example

The polymer nylon-6,6 is formed from hexane-1,6-diamine and hexanedioic acid. Draw the repeating unit of the polymer.

▶️Answer/Explanation

Amide bonds form between the amine and carboxylic acid groups. Each bond formation eliminates a water molecule.

Repeating unit:

\( [-\text{NH(CH}_2)_6\text{NHCO(CH}_2)_4\text{CO}-]_n \)

Example

A polyester is made from propane-1,3-diol and hexanedioic acid. Identify the linkage formed and name the small molecule eliminated.

▶️Answer/Explanation

Each ester linkage forms between the alcohol and acid groups, eliminating water.

  • Linkage: Ester linkage (\( -\text{COO}- \))
  • Small molecule eliminated: \( \text{H}_2\text{O} \)

Repeating unit: \( [-\text{OCH}_2\text{CH}_2\text{CH}_2\text{OCO(CH}_2)_4\text{CO}-]_n \)

Biological Macromolecules: Condensation and Hydrolysis

All biological macromolecules (carbohydrates, proteins, and nucleic acids) are formed by condensation reactions and broken down by hydrolysis reactions.

Condensation Reaction

A condensation reaction is a chemical process in which two molecules combine to form a larger molecule, releasing a small molecule such as water (\( \text{H}_2\text{O} \)) as a byproduct.

Hydrolysis Reaction:

Hydrolysis is the reverse of condensation. It involves breaking a covalent bond in a molecule using water, producing smaller subunits.

Biological Examples:

Carbohydrates:



Monosaccharides (e.g., glucose) combine to form disaccharides and polysaccharides (e.g., starch, cellulose, glycogen) via glycosidic bonds.

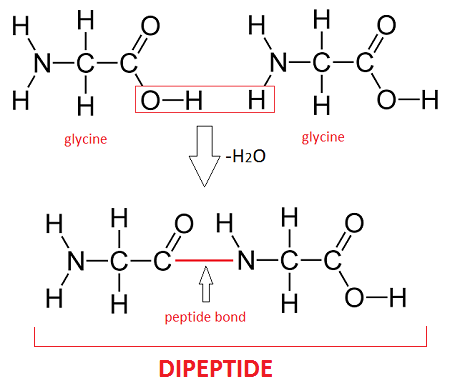

Proteins:

Amino acids join to form dipeptides and polypeptides via peptide bonds.

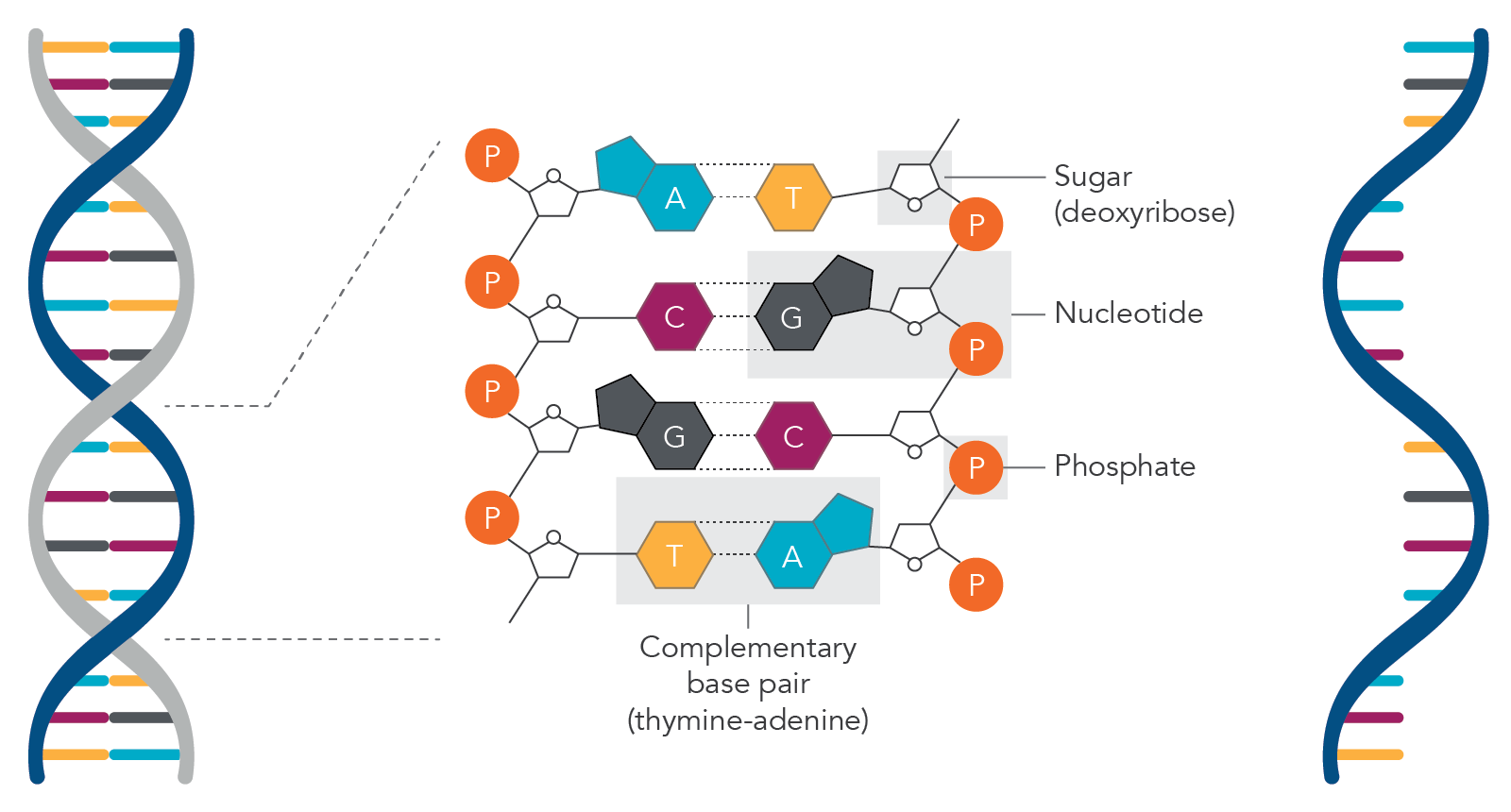

Nucleic Acids:

Nucleotides link via phosphodiester bonds to form DNA and RNA.

 Important: All of these biological polymers are hydrolyzed back into their monomers during digestion or cellular breakdown processes.

Example

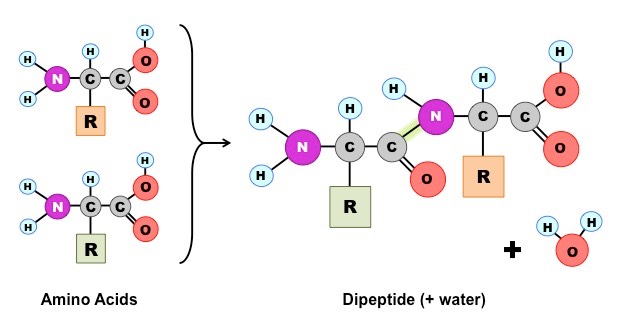

Which type of reaction links amino acids together in proteins, and what byproduct is released?

▶️Answer/Explanation
  • Reaction: Condensation
  • Bond formed: Peptide bond
  • Byproduct: Water (\( \text{H}_2\text{O} \))
  • For example: \( \text{H}_2\text{NCH(R)COOH} + \text{H}_2\text{NCH(R’)COOH} \rightarrow \text{H}_2\text{NCH(R)CONHCH(R’)COOH} + \text{H}_2\text{O} \)
