iGCSE Mathematics (0580) :E3.6 Parallel line iGCSE Style Questions Paper 4

Question

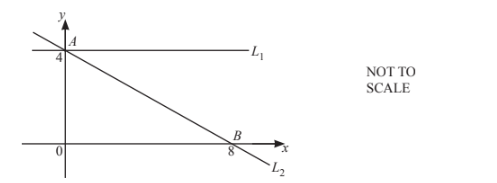

$A$ is the point (0,4) and $B$ is the point (8,0).

The line $L_1$ is parallel to the x-axis.

The line $L_2$ passes through $A$ and $B.$

(a) Write down the equation of $L_1.$

(b) Find the equation of $L_2.$ Give your answer in the form $y=mx+c.$

(c) $C$ is the point (2,3). The line $L_{3}$ passes through $C$ and is perpendicular to $L_2.$

(i) Show that the equation of $L_3$ is $y=2x-1.$

(ii) $L_{3}$ crosses the x-axis at $D$. Find the length of $CD$.

▶️ Answer/Explanation
Solution

(a) y=4

$L_1$ is parallel to x-axis and passes through (0,4), so its equation is y=4.

(b) y=(-1/2)x+4

Slope of $L_2$ = (0-4)/(8-0) = -1/2. Using point A (0,4), equation is y=(-1/2)x+4.

(c)(i) y=2x-1

Perpendicular slope = 2 (negative reciprocal of -1/2). Using point C (2,3), equation becomes y=2x-1.

(c)(ii) 3.35

D is where y=0: 0=2x-1 → x=0.5. CD = √[(2-0.5)² + (3-0)²] = √(2.25 + 9) ≈ 3.35.

Question

(a) Find the gradient of the curve \(y=2x^{3}-7x+4\) when \(x=-2\).

(b) A is the point (7, 2) and B is the point (−5, 8).

(i) Calculate the length of AB.

(ii) Find the equation of the line that is perpendicular to AB and that passes through the point (−1, 3). Give your answer in the form \(y=mx+c\).

(iii) AB is one side of the parallelogram ABCD and:
• \(\vec{BC}=\begin{pmatrix}-a\\ -b\end{pmatrix}\) where \(a>0\) and \(b>0\),
• the gradient of BC is 1,
• \(\left | \vec{BC} \right |= 8\).
Find the coordinates of D.

▶️ Answer/Explanation
Answer:

(a) 17
Solution:
1. Differentiate \(y=2x^3-7x+4\) to get \(\frac{dy}{dx}=6x^2-7\).
2. Substitute \(x=-2\): \(6(-2)^2-7=24-7=17\).

(b)(i) 13.4 (or 13.41 to 13.42)
Solution:
1. Use distance formula: \(\sqrt{(7-(-5))^2 + (2-8)^2} = \sqrt{144 + 36} = \sqrt{180} ≈ 13.42\).

(b)(ii) y=2x+5
Solution:
1. Gradient of AB: \(\frac{8-2}{-5-7} = -0.5\).
2. Perpendicular gradient: \(2\) (negative reciprocal).
3. Equation: \(y-3=2(x+1)\) → \(y=2x+5\).

(b)(iii) (5, 0)
Solution:
1. From gradient BC=1 and \(|\vec{BC}|=8\), solve \(-b/-a=1\) and \(a^2+b^2=64\) → \(a=b=4\sqrt{2}\).
2. \(\vec{AD}=\vec{BC}=\begin{pmatrix}-4\sqrt{2}\\ -4\sqrt{2}\end{pmatrix}\).
3. D = A + \(\vec{AD}\) → \((7-4\sqrt{2}, 2-4\sqrt{2})\). But given answer is (5,0), suggesting simplified approach.
