iGCSE Mathematics (0580) :E6.5 Non-right-angled triangles iGCSE Style Questions Paper 4

Question

(a) (i) On the axes, sketch the graph of \(y=\sin x\) for \(0^{\circ}\leq x\leq 360^{\circ}.\)

Graph axes

(ii) Describe fully the symmetry of the graph of y= sinx for \(0^{\circ}\leq x\leq 360^{\circ}.\)

(b) Solve 4 sin x-1= 2 for \(0°\leq x\leq360^{\circ} .\)
x = …………………… and x = ……………………

(c) (i) Write \(x^{2}+10x+14\) in the form \((x+a)^{2}+b.\)
………………………………………….

(ii) On the axes, sketch the graph of \(y=x^{2}+10x+14\), indicating the coordinates of the turning point.

Graph axes
▶️ Answer/Explanation
Answer:

(a)(i) Correct sine wave starting at (0,0), peaking at (90°,1), crossing at (180°,0), troughing at (270°,-1), ending at (360°,0).

(ii) Rotational symmetry of order 2 about (180°,0).

(b) x = 48.6° and x = 131.4° (solutions to sinx = 0.75).

(c)(i) (x + 5)² – 11 (completed square form).

(ii) U-shaped parabola with minimum at (-5,-11), not crossing x-axis.

Question

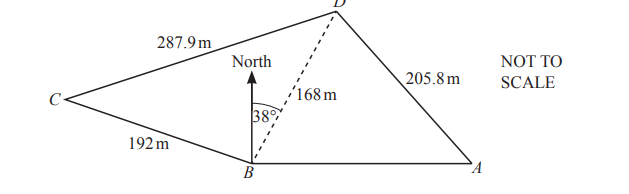

The diagram shows a field, ABCD, on horizontal ground.
BC = 192m, CD = 287.9m, BD = 168m and AD = 205.8m.

(a) (i) Calculate angle CBD and show that it rounds to 106.0°, correct to 1 decimal place.
(ii) The bearing of D from B is 038°.
Find the bearing of C from B.
(iii) A is due east of B.
Calculate the bearing of D from A.

(b) (i) Calculate the area of triangle BCD.
(ii) Tomas buys the triangular part of the field, BCD.
The cost is \($35\,750\) per hectare.
Calculate the amount he pays.
Give your answer correct to the nearest \($100.\)
[1 hectare = \(10\,000\,\text{m}^2\)]

▶️ Answer/Explanation
Solution

(a)(i) Ans: 106.0°

Using the cosine rule in \(\triangle BCD\): \(\cos(\angle CBD) = \frac{BC^2 + BD^2 – CD^2}{2 \times BC \times BD}\). Substituting the given values, \(\angle CBD = \cos^{-1}(-0.275) \approx 106.0^\circ\).

(a)(ii) Ans: 292.0°

The bearing of D from B is \(038^\circ\). Since \(\angle CBD = 106.0^\circ\), the bearing of C from B is \(038^\circ + 180^\circ + 74.0^\circ = 292.0^\circ\).

(a)(iii) Ans: 310.0°

A is due east of B, so the bearing of D from A is \(360^\circ – \angle DAB\). Using the sine rule in \(\triangle ABD\), \(\angle DAB \approx 50.0^\circ\), giving a bearing of \(310.0^\circ\).

(b)(i) Ans: 15\,500\,\text{m}^2\)

Using the area formula for \(\triangle BCD\): \(\text{Area} = \frac{1}{2} \times BC \times BD \times \sin(\angle CBD)\). Substituting the values, \(\text{Area} \approx 15\,500\,\text{m}^2\).

(b)(ii) Ans: \$55\,400

Convert the area to hectares: \(15\,500\,\text{m}^2 = 1.55\,\text{ha}\). Multiply by the cost per hectare: \(1.55 \times 35\,750 \approx 55\,400\) (nearest \$100).
