iGCSE Physics (0625) 1.1 Physical quantities and measurement techniques-Exam Style Questions Paper 1 - New Syllabus

Question

An athlete runs around a circular track.

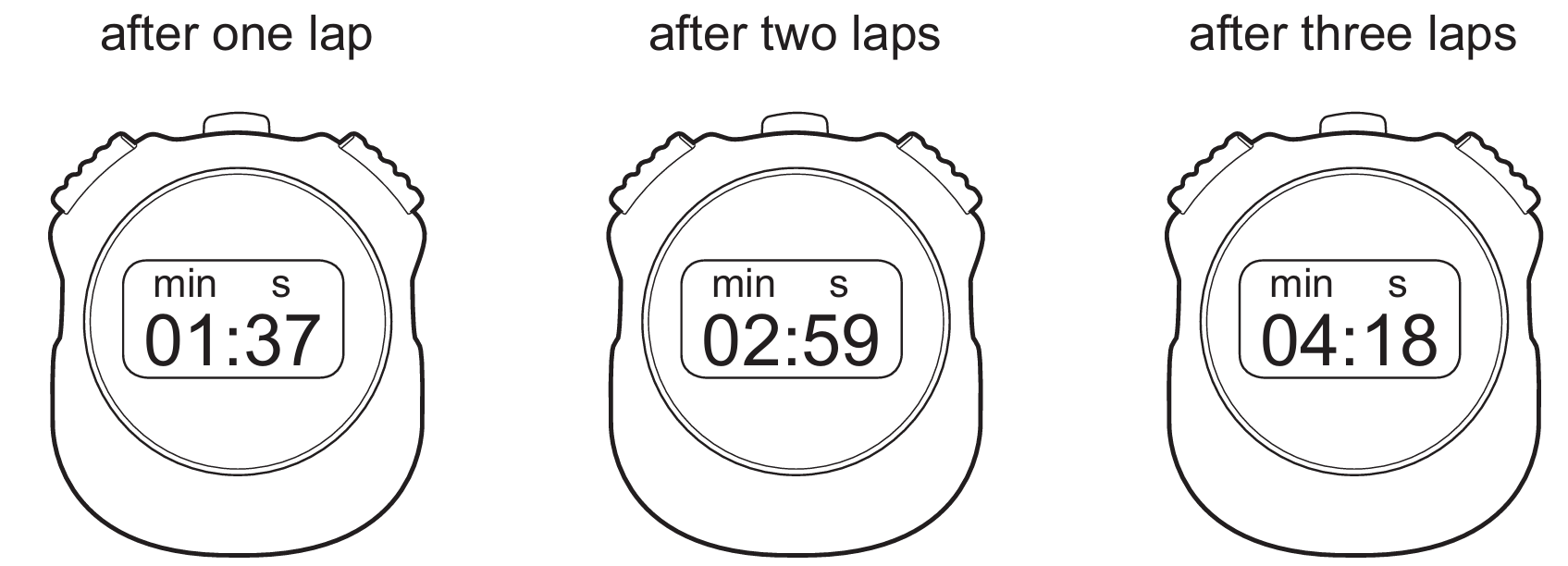

Readings on the stop-watch used to time the athlete are shown for each lap.

How long did it take the athlete to run the third lap?

(A) \(1\,\mathrm{min}\ 19\,\mathrm{s}\)
(B) \(1\,\mathrm{min}\ 22\,\mathrm{s}\)
(C) \(1\,\mathrm{min}\ 37\,\mathrm{s}\)
(D) \(1\,\mathrm{min}\ 59\,\mathrm{s}\)
▶️ Answer/Explanation

Correct Answer: \( \boxed{\mathrm{A}} \)

The time for the third lap is found by subtracting the total time after two laps from the total time after three laps.

After two laps: \(T_{2}=2\times 60+59=179\,\mathrm{s}\)

After three laps: \(T_{3}=4\times 60+18=258\,\mathrm{s}\)

Time for the third lap:

\( \Delta t=T_{3}-T_{2}=258-179=79\,\mathrm{s} \)

Converting \(79\,\mathrm{s}\) into minutes and seconds:

\(79\,\mathrm{s}=1\,\mathrm{min}\ 19\,\mathrm{s}\)

Therefore, the athlete took \(1\,\mathrm{min}\ 19\,\mathrm{s}\) to complete the third lap.

Hence, the correct answer is (A).

Question

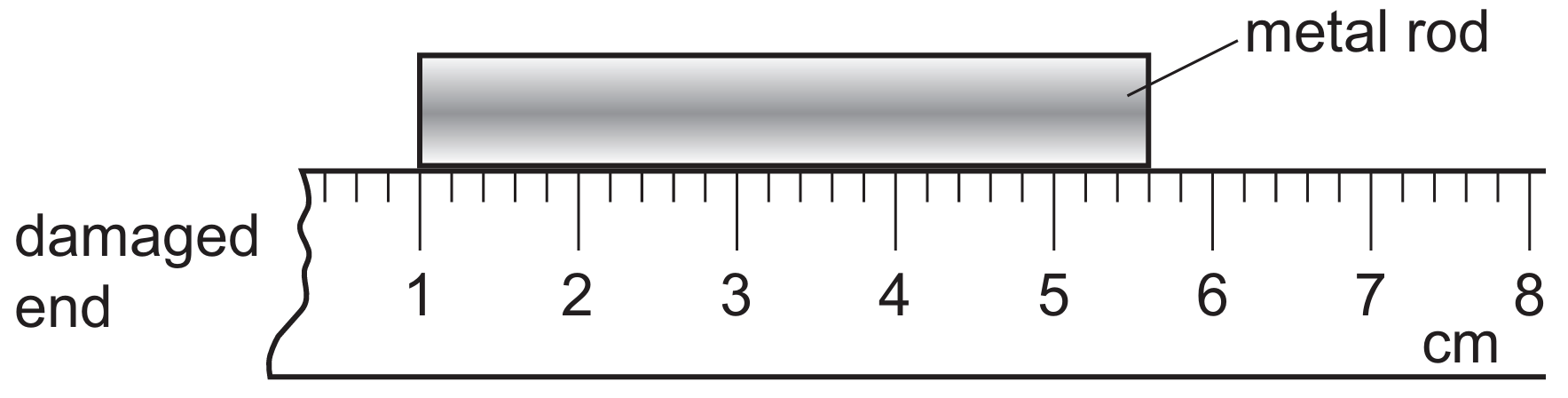

A girl uses a ruler to measure the length of a metal rod. The end of the ruler is damaged, so she places one end of the rod at the \(1\,\mathrm{cm}\) mark, as shown.

How long is the metal rod?

(A) \(43\,\mathrm{mm}\)
(B) \(46\,\mathrm{mm}\)
(C) \(53\,\mathrm{mm}\)
(D) \(56\,\mathrm{mm}\)
▶️ Answer/Explanation

Correct Answer: \( \boxed{\mathrm{B}} \)

Since the end of the ruler is damaged, the measurement must be found by subtracting the initial reading from the final reading.

Initial reading \(= 1.0\,\mathrm{cm}\)

Final reading \(= 5.6\,\mathrm{cm}\)

Length of rod:

\( \mathrm{Length} = 5.6 – 1.0 = 4.6\,\mathrm{cm} \)

Converting to millimetres:

\( 4.6\,\mathrm{cm} \times 10 = 46\,\mathrm{mm} \)

Therefore, the length of the metal rod is \(46\,\mathrm{mm}\).

Hence, the correct answer is (B).

Question

Which measuring instrument is used to determine the volume of water in a cup?

(A) clock
(B) measuring cylinder
(C) ruler
(D) thermometer
▶️ Answer/Explanation

Correct Answer: \( \boxed{\mathrm{B}} \)

A measuring cylinder is the standard laboratory instrument used to measure the volume of liquids directly.

A clock is used to measure time, a ruler is used to measure length, and a thermometer is used to measure temperature.

Since water is a liquid, it takes the shape of its container and its volume is determined by reading the graduated scale on a measuring cylinder.

Therefore, the correct answer is (B) measuring cylinder.
