CIE iGCSE Co-Ordinated Science B8.4 Translocation Exam Style Questions Paper 1
▶️ Answer/Explanation

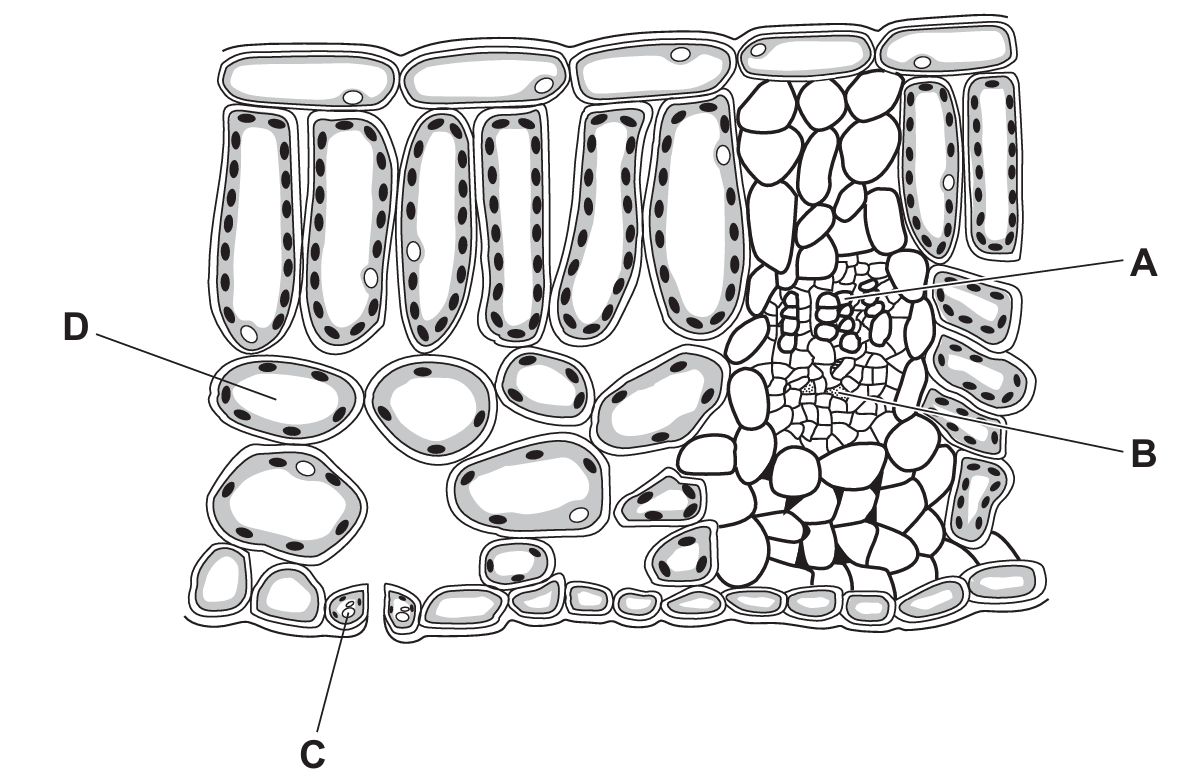

Xylem cells are found in the vascular bundles of the leaf, particularly in the midrib and veins. They are characterised by thick lignified cell walls and appear as small, thick-walled cells with narrow lumens. In the leaf cross-section, the xylem is typically located on the upper side of the vascular bundle. Option B correctly identifies the xylem cells.
✅ Answer: (B)
✅ Answer: (B)
▶️ Answer/Explanation

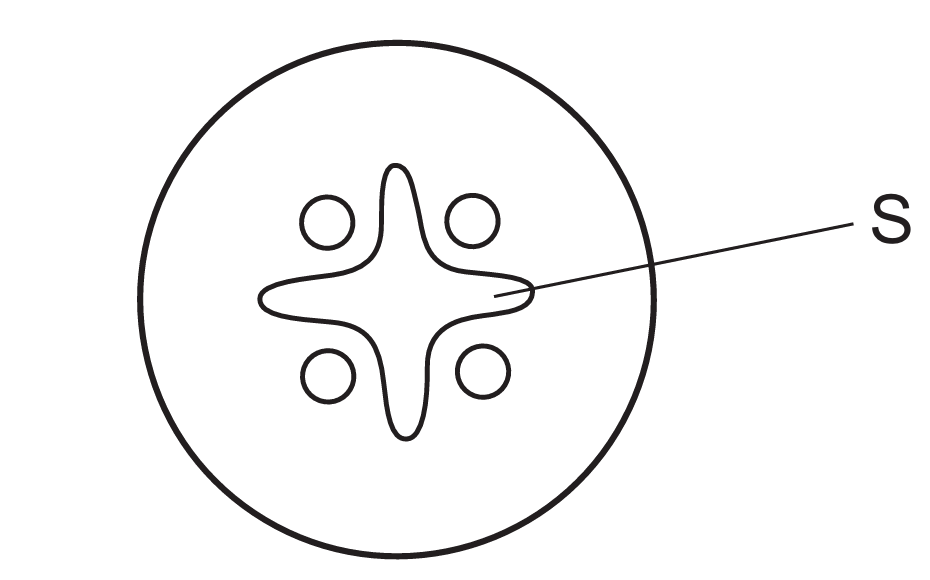

In the cross-section of a plant root, the central tissue S is the xylem. Xylem vessels are located in the centre of the root and are responsible for transporting water and mineral ions from the roots to the rest of the plant. Phloem transports sucrose and amino acids and is found in the outer regions. Option D correctly identifies tissue S as xylem transporting water.
✅ Answer: (D)
✅ Answer: (D)
▶️ Answer/Explanation

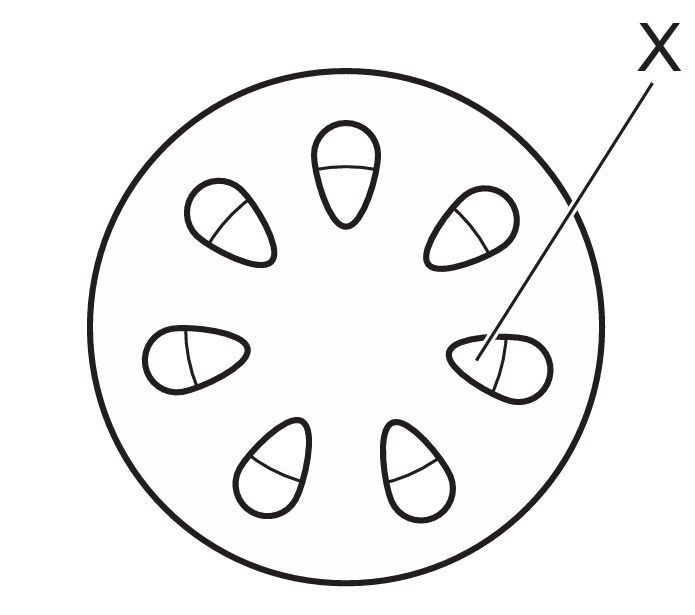

In a cross-section of a plant stem, the vascular bundles are arranged in a ring.
The xylem is typically found on the inner side of the vascular bundle (towards the centre of the stem), while the phloem is on the outer side.
X is pointing to the inner tissue, which is the xylem.
✅ Answer: (D)
The xylem is typically found on the inner side of the vascular bundle (towards the centre of the stem), while the phloem is on the outer side.
X is pointing to the inner tissue, which is the xylem.
✅ Answer: (D)
▶️ Answer/Explanation

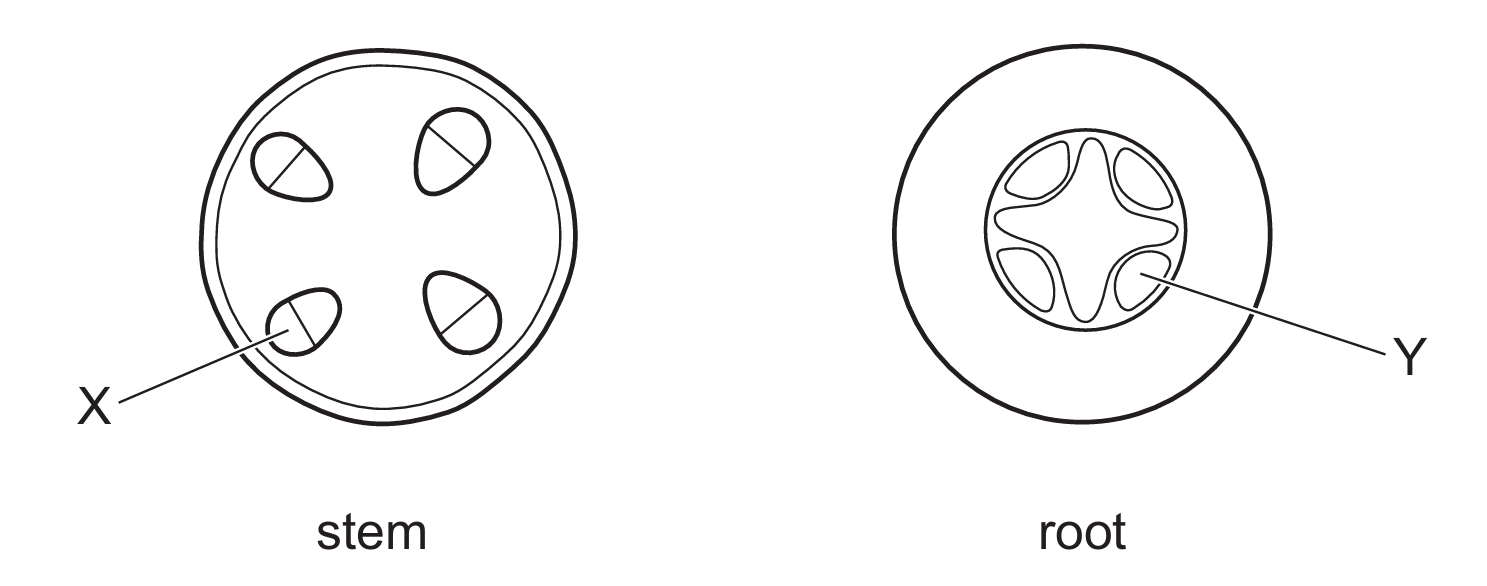

In a dicotyledonous stem, the vascular bundles are arranged in a ring. The phloem is located towards the outside of the vascular bundle, and the xylem is towards the inside. In the diagram of the stem, label X points to the outer part of the vascular bundle — this is the phloem.
In a dicotyledonous root, the vascular tissue is arranged in a central cylinder (stele). The xylem is in the centre and the phloem is located between the arms of the xylem. In the diagram of the root, label Y points to the phloem (the outer part of the vascular cylinder between the xylem arms).

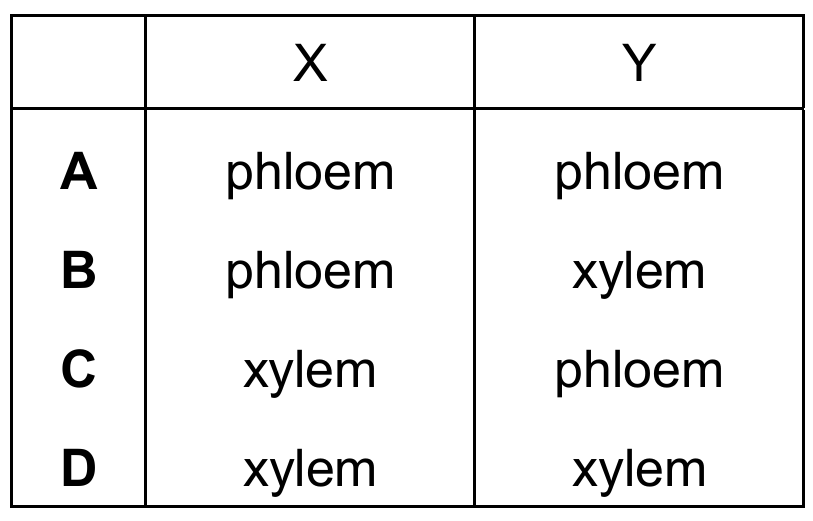

Therefore, both X and Y are phloem. This matches row A.
✅ Answer: (A)
▶️ Answer/Explanation

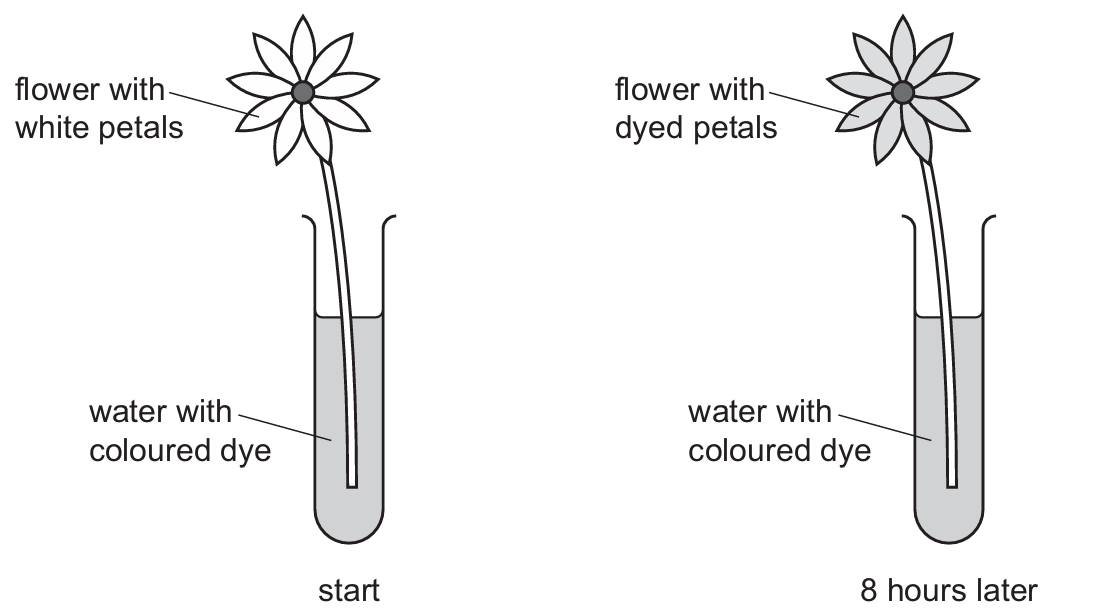

Dye dissolved in water is taken up by the cut stem in the same way as water and mineral ions normally would be.
Water and dissolved substances move upward through the stem exclusively in the xylem vessels.
The dye therefore travels up the xylem and stains the petals at the top.
✅ Answer: (D)
Water and dissolved substances move upward through the stem exclusively in the xylem vessels.
The dye therefore travels up the xylem and stains the petals at the top.
✅ Answer: (D)
