CIE iGCSE Co-ordinated Sciences-B3.2 Osmosis - Study Notes- New Syllabus

CIE iGCSE Co-ordinated Sciences-B3.2 Osmosis – Study Notes

CIE iGCSE Co-ordinated Sciences-B3.2 Osmosis – Study Notes -CIE iGCSE Co-ordinated Sciences – per latest Syllabus.

Key Concepts:

Core

  • State that water diffuses through partially permeable membranes by osmosis
  • State that water moves into and out of cells by osmosis through the cell membrane
  • Investigate and describe the effects on plant tissues of immersing them in solutions of different concentrations

Supplement

  •  Describe osmosis as the net movement of water molecules from a region of higher water potential (dilute solution) to a region of lower water potential (concentrated solution), through a partially permeable membrane
  •  Explain the effects on plant cells of immersing them in solutions of different concentrations by using the terms: turgid, turgor pressure, plasmolysis, flaccid
  •  Explain the importance of water potential and osmosis in the uptake and loss of water by organisms

CIE iGCSE Co-Ordinated Sciences-Concise Summary Notes- All Topics

Osmosis

📌 Definition

Osmosis = diffusion of water molecules across a partially permeable membrane from a region of higher water concentration (dilute solution) to a region of lower water concentration (concentrated solution).

🔑 Key Points

  • Partially permeable membrane: allows water molecules through, but not larger solute molecules.
  • Dilute solution: more water, less solute.
  • Concentrated solution: less water, more solute.
  • Water always moves down its concentration gradient.

🌱 In Living Cells

  • Cell membranes act as partially permeable barriers.
  • If cells are in a dilute solution (freshwater) → water enters → cell swells.
  • If cells are in a concentrated solution (saltwater) → water leaves → cell shrinks.
  • In plants, vacuoles gain or lose water by osmosis → affects turgor pressure.

📊 Simple Summary

TermMeaning
OsmosisWater diffusion through partially permeable membrane
DirectionFrom dilute → concentrated solution
Membrane typePartially permeable (only lets small molecules like water through)
Effect in cellsWater enters or leaves depending on surroundings

⚡ Quick Recap
👉 Osmosis = Water Diffusion
Dilute → Concentrated
Through partially permeable membrane
Cell membranes control osmosis
In dilute → cells gain water
In concentrated → cells lose water

💡 Mnemonic: “Osmosis = Only Small Molecules In Selective Membrane”

Osmosis in Cells

📌 Key Statement

Water moves into and out of cells by osmosis through the cell membrane.

🧾 What is Osmosis?

  • Osmosis = diffusion of water molecules.
  • Moves from higher water concentration (dilute)lower water concentration (concentrated).
  • Occurs through a partially permeable membrane (lets water through, not large solutes).
  • Cell membrane = partially permeable, so water enters and exits cells this way.

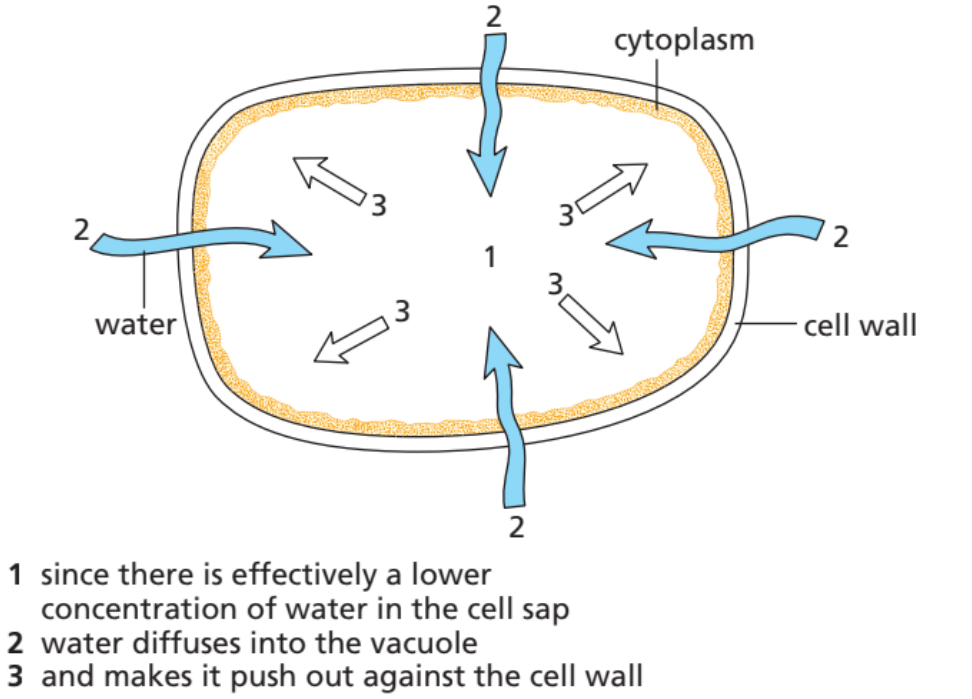

🌱 In Plant Cells

  • Cell wall: freely permeable; cell membrane: partially permeable.
  • In dilute solution: water enters → vacuole swells → cytoplasm pushes against wall → cell turgid (firm). Turgidity supports plant.
  • In concentrated solution: water leaves → vacuole shrinks → cell flaccid → plant wilts. If extreme → plasmolysis (membrane pulls away from wall).

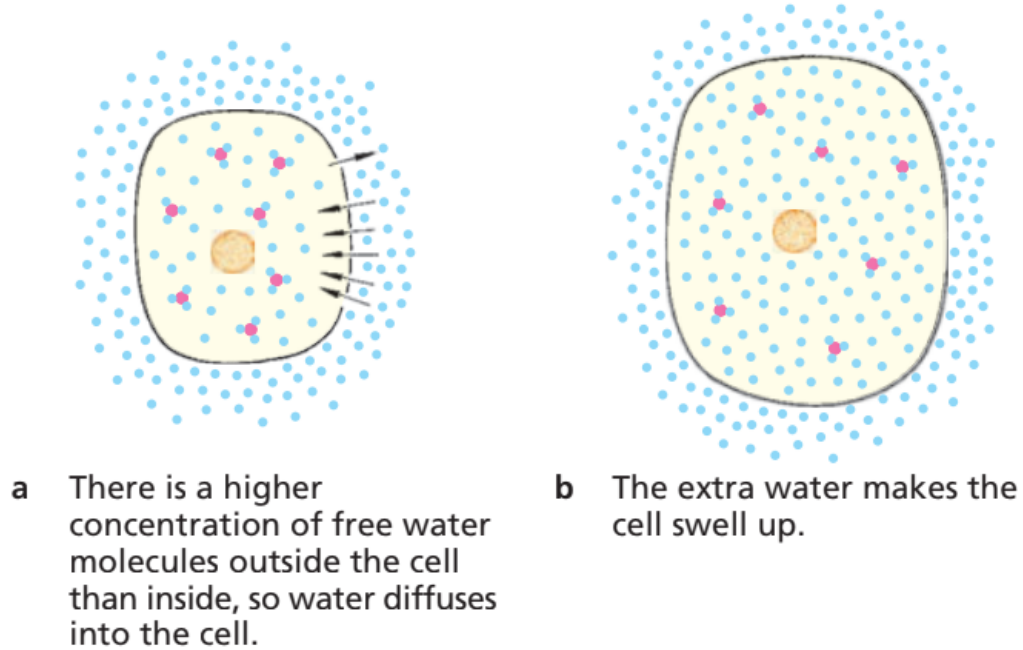

🐾 In Animal Cells

  • Only a cell membrane, no wall → more vulnerable.
  • In dilute solution: water enters → cell swells → may burst (lysis).
  • In concentrated solution: water leaves → cell shrinks, becomes wrinkled (crenated).

🔬 Experimental Evidence

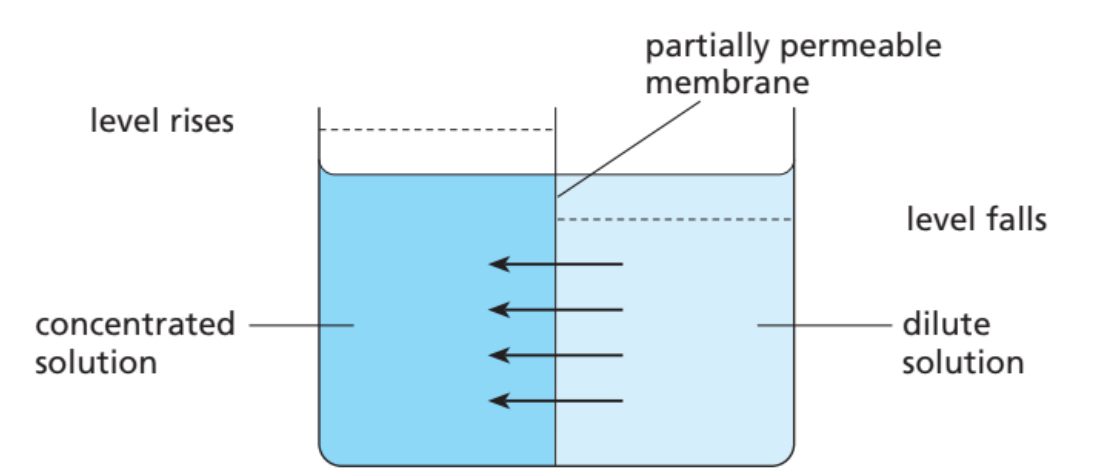

  • Dialysis tubing + sugar solution: water enters → liquid level rises.
  • Potato cylinder experiment:
    • In water → gains mass/length (osmosis in).
    • In strong sugar solution → loses mass/length (osmosis out).

📊 Summary Table

Condition around cellPlant cell effectAnimal cell effect
Dilute solutionWater in → TurgidWater in → Swells, may burst (lysis)
Concentrated solutionWater out → Flaccid / PlasmolysedWater out → Shrinks (crenated)

⚡ Quick Recap
Osmosis = water diffusion through partially permeable membrane
Cell membrane controls water movement
Plant cells → Turgid in dilute, Flaccid/Plasmolysed in concentrated
Animal cells → Lysis in dilute, Crenated in concentrated
Classic experiments → Dialysis tubing & Potato cylinders

Effects of Solutions on Plant Tissues

📌 Key Idea

Plant tissues respond differently depending on the concentration of the solution they are placed in (osmosis effect).

🧾 Immersing Plant Tissue in Different Solutions

1. In Dilute Solution (Hypotonic):

  • Water enters cells by osmosis.
  • Vacuole fills up → cytoplasm pushes against wall.
  • Cells become turgid → tissues stay firm → stems & leaves supported.

2. In Concentrated Solution (Hypertonic):

  • Water leaves cells by osmosis.
  • Vacuole shrinks → cytoplasm pulls away from wall.
  • Cells become flaccid → tissue loses support → plant wilts.
  • If extreme → plasmolysis (membrane detaches from wall).

3. In Equal Concentration (Isotonic):

  • No net movement of water.
  • Cells remain in normal, slightly soft state (not turgid, not plasmolysed).
  • Tissues don’t have much support.

📊 Summary Table

Solution around cellCell effectTissue / Plant effect
Dilute (Hypotonic)Turgid cellsPlant stiff & supported
Concentrated (Hypertonic)Flaccid / Plasmolysed cellsPlant limp, wilts
Equal conc. (Isotonic)Normal cellsPlant soft, not firm

🌿 Real-life Observation

  • Watered plant: cells turgid → plant upright & firm.
  • Dehydrated plant: cells lose water → plant wilts.
  • Re-watered: osmosis restores turgidity → plant recovers.

⚡ Quick Recap
Dilute → Water enters → Cells turgid → Plant supported
Concentrated → Water leaves → Cells flaccid/plasmolysed → Plant wilts
Isotonic → No net water movement → Plant soft
Wilting = loss of turgidity in many cells

Osmosis

🌱 Key Points to Remember

  • Partially permeable membrane: lets water molecules through, not large solutes.
  • High water potential (WP): dilute solution / pure water.
  • Low water potential (WP): concentrated solution (solute binds water, less free water).
  • Water moves until equilibrium is reached.

📌 Examples

  • Root hair cells: absorb water from soil by osmosis.
  • Potato experiments: potato gains or loses mass depending on solution.
  • Red blood cells: swell & burst in pure water, shrink in strong salt solution.

📝 Summary Table

TermMeaning
Water potentialTendency of water molecules to move
High WPDilute solution / pure water
Low WPConcentrated solution
OsmosisWater moves from high WP → low WP via partially permeable membrane

⚡ Quick Recap
Osmosis = water diffusion across partially permeable membrane
From dilute (high WP)concentrated (low WP)
Classic examples: root hair cells, potato cylinders, red blood cells

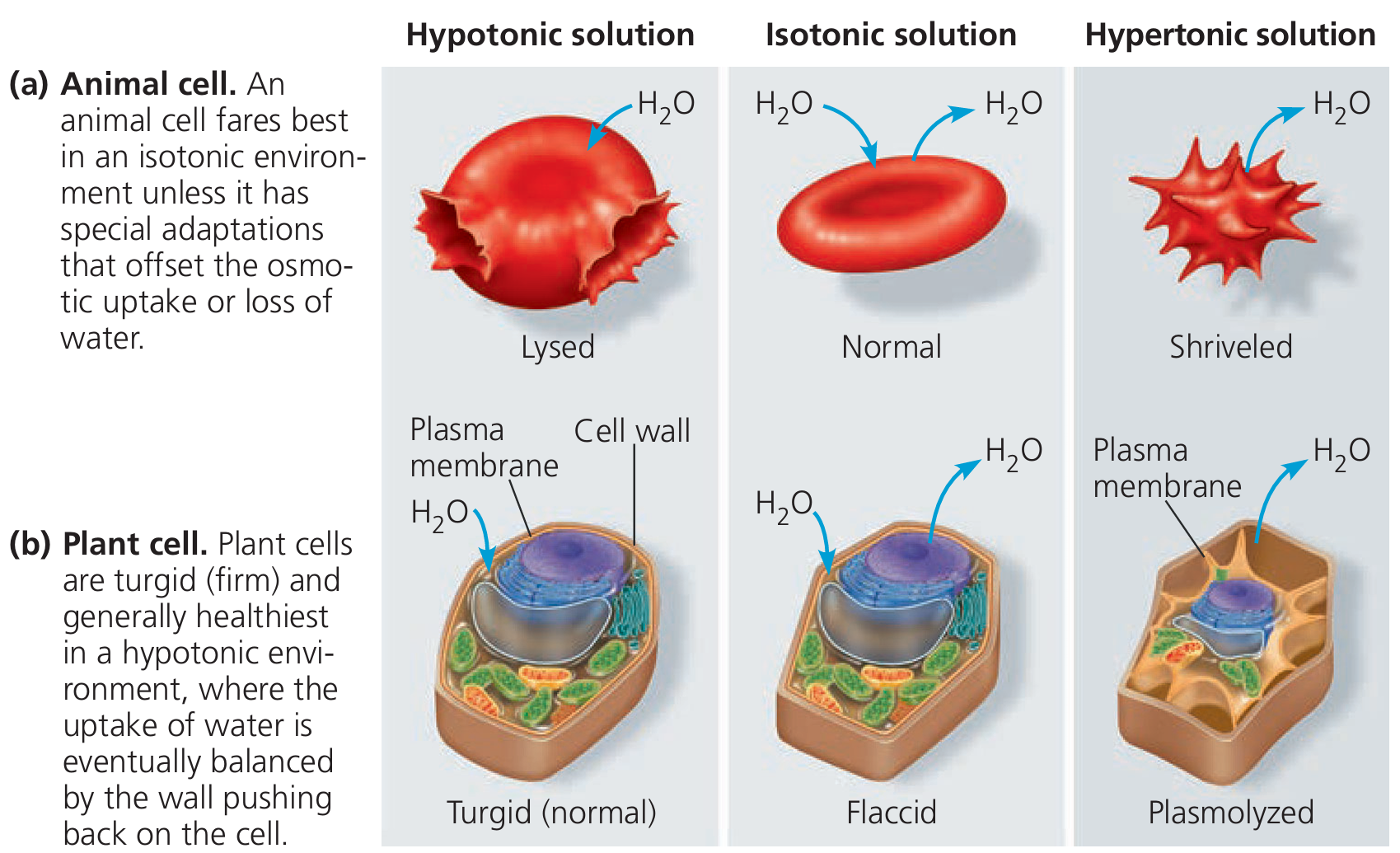

Effects of Solutions on Plant Cells (Osmosis)

📌 Introduction

Plant cells respond differently when placed in solutions of different concentrations because of osmosis. The rigid cell wall prevents bursting, unlike animal cells.

🔑 Key Terms

  • Turgid: Cell has absorbed maximum water, vacuole full, pushing against wall.
  • Turgor pressure: Pressure of vacuole contents against cell wall, provides support.
  • Flaccid: Cell loses water, vacuole shrinks, no pressure on wall, cell limp.
  • Plasmolysis: Extreme water loss, cytoplasm & membrane pull away from wall.

🌊 Effects in Different Solutions

  1. Hypotonic solution (more dilute than cell sap)
    • Water enters by osmosis.
    • Vacuole swells, presses on cell wall.
    • Cell becomes turgid → stem upright, leaves firm.
  2. Isotonic solution (same concentration as cell sap)
    • No net water movement.
    • Cell remains normal, not fully firm.
  3. Hypertonic solution (more concentrated than cell sap)
    • Water leaves cell by osmosis.
    • Vacuole shrinks → cell flaccid.
    • Extreme case → plasmolysis (cytoplasm pulls from wall).
    • Plant wilts (droopy stems & leaves).

📌 Importance of Turgor

  • Turgor pressure keeps stems upright & leaves spread for light absorption.
  • Loss of turgor → wilting.
  • In farming: excess fertilisers/salts ↓ soil water potential → water moves out of roots → wilting & crop loss.

📝 Summary Table

Solution typeWater movementCell conditionNotes
Hypotonic (dilute)In → cellTurgidStrong support due to turgor pressure
IsotonicNo net movementNormalNot firm, not wilted
Hypertonic (concentrated)Out → cellFlaccid / plasmolysedPlant wilts

⚡ Quick Recap
Water in → turgid → upright plant
Water out → flaccid → wilting
Extreme water loss → plasmolysis
Turgor pressure = main support for plant

Importance of Water Potential & Osmosis in Uptake and Loss of Water by Organisms

📌 Introduction

Water potential (WP): tendency of water to move.

Osmosis: movement of water across a selectively permeable membrane from higher WP → lower WP.

Essential in both plants (uptake, turgidity) and animals (cell survival, homeostasis).

🌱 In Plants

  • Turgid cells: Vacuole full of water pushes against cell wall → turgor pressure. Keeps stems upright, leaves spread out for photosynthesis.
  • Flaccid cells: Vacuole loses water → turgor lost → stem droops, wilting.
  • Root hair cells: absorb water from soil by osmosis (soil WP > cell sap WP).
  • Fertilizers & salts: lower soil WP → water leaves roots → plants wilt/die.

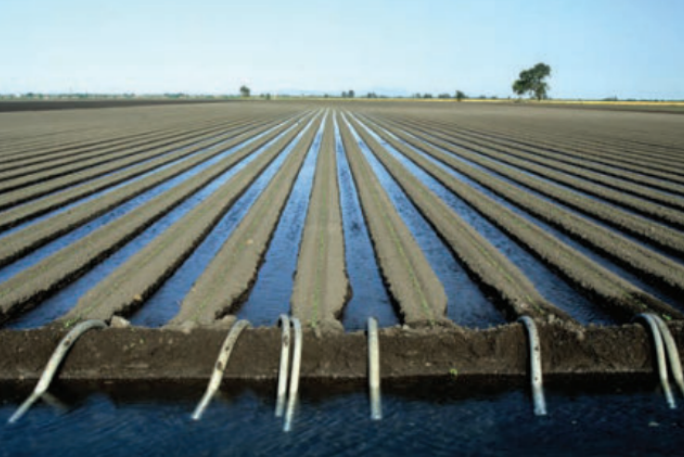

  • Irrigation (hot countries): salt build-up ↓ soil WP → crops lose water → land infertile.
  • Road salt (winters): dissolves in soil → reduces WP → roadside plants lose water → die.

🐾 In Animals

  • No cell wall: animal cells are highly sensitive to osmotic changes.
  • Hypotonic fluid (high WP): water enters → cells swell & may burst (haemolysis in RBCs).
  • Hypertonic fluid (low WP): water leaves → cells shrink (crenation) → reduced O₂ transport.
  • Isotonic solutions: essential for stability (e.g., medical saline, sports drinks).

📊 Summary Table

ConditionPlants 🌱Animals 🐾
High external WP (hypotonic)Cells turgid → firm, uprightCells swell → may burst
Equal WP (isotonic)No net movement → cells normalNo change → stable
Low external WP (hypertonic)Cells lose water → flaccid → plasmolysis possibleCells shrink (crenated)

🔑 Quick Recap
Turgid = full water, firm, upright
Flaccid = lost water, limp
Plasmolysis = cytoplasm shrinks from wall in strong solution
In plants → WP controls support, growth & survival
In animals → correct osmotic balance prevents bursting/shrinkage
