CIE IGCSE Mathematics (0580) Ratio and proportion Study Notes

CIE IGCSE Mathematics (0580) Ratio and proportion Study Notes - New Syllabus

CIE IGCSE Mathematics (0580) Ratio and proportion Study Notes

LEARNING OBJECTIVE

  • Ratio and Proportion

Key Concepts:

  • Ratio

  • Proportion

  • Proportional reasoning

  • Direct and inverse proportion

CIE iGCSE Maths (0580)  Study Notes – All topics

Ratio and Proportion

Ratio and Proportion

What Is Ratio?

A ratio compares two or more quantities of the same kind by division. It shows how many times one value contains or is contained in another.

For example, if there are 2 apples and 3 oranges, the ratio is written as \( 2 : 3 \).

Simplifying Ratios

To simplify a ratio, divide each term by their highest common factor (HCF). For example, \( 10 : 15 \) simplifies to \( 2 : 3 \) because both terms can be divided by 5.

Expressing Ratios in a Given Form

Sometimes, you are asked to write a ratio in the form \( 1 : n \) or \( n : 1 \). Divide both parts by the appropriate number to achieve this.

Dividing a Quantity in a Given Ratio

To divide an amount in a given ratio, first add the parts of the ratio. Then, divide the total by that sum and multiply each ratio part by the result.

Example: Divide \$60 in the ratio \( 2 : 3 \): Total parts = \( 2 + 3 = 5 \) Each part = \( \frac{60}{5} = 12 \) Share: \( 2 \times 12 = \$24 \), \( 3 \times 12 = \$36 \)

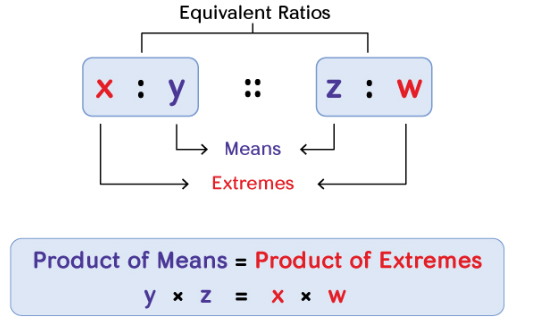

What Is Proportion?

Proportion means that two ratios are equal. For example, if \( \frac{2}{3} = \frac{4}{6} \), then these are in proportion.

Proportional Reasoning

You use proportional reasoning when solving problems involving scaling, recipes, maps, and similar real-life contexts. If one quantity increases, the other increases or decreases in the same ratio.

Example: If 4 pencils cost \$20, then 1 pencil costs \$5. So, 7 pencils cost \( 7 \times 5 = \$35 \). This uses direct proportion.

Direct and Inverse Proportion

Direct Proportion

Two quantities are said to be in direct proportion when an increase in one results in a proportional increase in the other (and vice versa). This means: if one doubles, the other doubles.

Mathematically, if \( x \) is directly proportional to \( y \), we write: \( x \propto y \) or \( x = ky \), where \( k \) is a constant.

Example: The cost of apples is directly proportional to the weight bought. If 2 kg cost \$5, then 4 kg will cost \$10.

Inverse Proportion

Two quantities are in inverse proportion when one increases and the other decreases in such a way that their product remains constant.

Mathematically, if \( x \) is inversely proportional to \( y \), we write: \( x \propto \frac{1}{y} \) or \( x = \frac{k}{y} \), where \( k \) is a constant.

Example: If 4 people can complete a job in 6 hours, then 8 people (working at the same rate) will complete it in 3 hours. More people → less time = inverse proportion.

How to Identify the Type of Proportion:

  • If quantities grow or shrink together at the same rate → direct proportion
  • If one increases while the other decreases → inverse proportion

Important:

  • Use the same units when working with ratios and proportions.
  • Always simplify final answers where possible.
  • Ensure the context makes sense (e.g., money to nearest cent or dollar, people must be whole numbers).

Ratio and Proportion Rules and Tricks

RuleConditionResult
Basic PropertyIf both terms of a ratio are multiplied or divided by the same non-zero numberThe ratio remains unchanged
ComponendoIf \( \frac{x}{y} = \frac{z}{w} \)Then \( \frac{x + y}{y} = \frac{z + w}{w} \)
DividendoIf \( \frac{x}{y} = \frac{z}{w} \)Then \( \frac{x – y}{y} = \frac{z – w}{w} \)
Componendo & DividendoIf \( \frac{x}{y} = \frac{z}{w} \)Then \( \frac{x + y}{x – y} = \frac{z + w}{z – w} \)
InvertendoIf \( \frac{x}{y} = \frac{z}{w} \)Then \( \frac{y}{x} = \frac{w}{z} \)
AlternendoIf \( \frac{x}{y} = \frac{z}{w} \)Then \( \frac{x}{z} = \frac{y}{w} \)
Equal Ratios (Advanced)If \( \frac{x}{y+z} = \frac{y}{z+x} = \frac{z}{x+y} \), and \( a + b + c \ne 0 \)Then \( a = b = c \)

Example:

Divide ₹180 between Riya and Aman in the ratio \( 5 : 4 \).

▶️ Answer/Explanation

Step 1: Add the parts of the ratio: \( 5 + 4 = 9 \) parts total.

Step 2: Find the value of one part: \( \frac{180}{9} = 20 \)

Step 3: Multiply by each part:

  • Riya gets: \( 5 \times 20 = ₹100 \)
  • Aman gets: \( 4 \times 20 = ₹80 \)

Final Answer: Riya: ₹100, Aman: ₹80

Example:

On a map with a scale of 1 : 50 000, the distance between two towns is measured as 8.4 cm. What is the actual distance between the towns in kilometres?

▶️ Answer/Explanation

Step 1: The scale means 1 cm on the map represents 50 000 cm in real life.

Step 2: Multiply the map distance by the scale:

\( 8.4 \times 50\,000 = 420\,000 \, \text{cm} \)

Step 3: Convert cm to kilometres:

\( 420\,000 \div 100\,000 = 4.2 \, \text{km} \)

Final Answer: The actual distance is 4.2 km.

Example:

A supermarket sells two brands of orange juice:
• Brand A: 1.5 litres for ₹90
• Brand B: 2 litres for ₹116

Which brand gives better value for money?

▶️ Answer/Explanation

Step 1: Find the price per litre for each brand.

  • Brand A: \( \frac{90}{1.5} = ₹60 \) per litre
  • Brand B: \( \frac{116}{2} = ₹58 \) per litre

Step 2: Compare the unit prices:

₹60 per litre (Brand A) vs ₹58 per litre (Brand B)

Final Answer: Brand B offers better value for money.

Example:

A printing machine takes 6 hours to print 3000 pages.
(a) If the number of pages is directly proportional to the time, how long will it take to print 5000 pages?
(b) If 3 machines working at the same rate take 6 hours, how long will 5 machines take to do the same job?

▶️ Answer/Explanation

Part (a): Direct Proportion

Since pages and time are directly proportional: \( \frac{t_1}{t_2} = \frac{p_1}{p_2} \) Let \( t \) be the unknown time for 5000 pages.

\( \frac{6}{t} = \frac{3000}{5000} \Rightarrow t = \frac{6 \times 5000}{3000} = 10 \) hours

Answer: 10 hours

Part (b): Inverse Proportion

Number of machines and time are inversely proportional: \( m_1 \times t_1 = m_2 \times t_2 \) Given: \( 3 \times 6 = 5 \times t \)

\( 18 = 5t \Rightarrow t = \frac{18}{5} = 3.6 \) hours

Answer: 3.6 hours
