Question

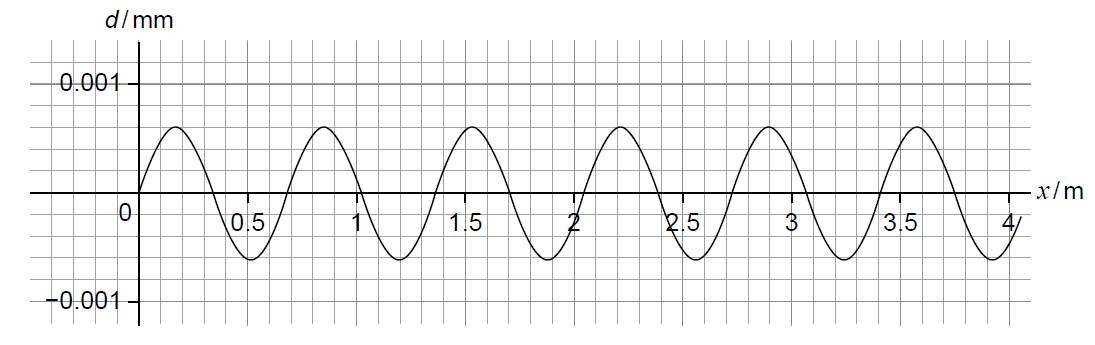

Graph 1 shows the variation of particle displacement \(d\) with position \(x\) for a travelling sound wave.
(a)

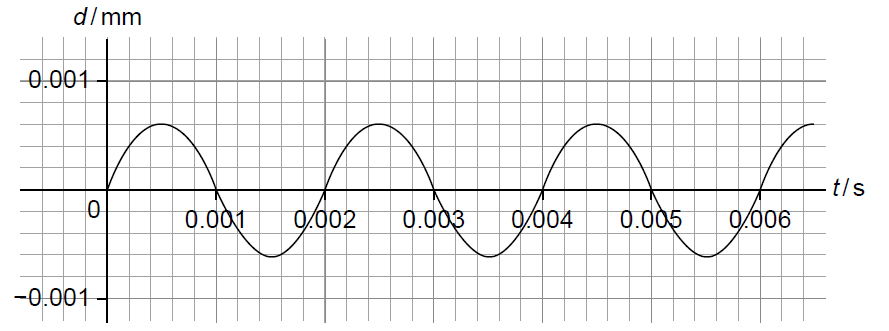

(i) State the wavelength and the period of the sound wave. [2]
(ii) Calculate the speed of the sound wave. [1]
The Doppler effect applies to both sound and light waves.

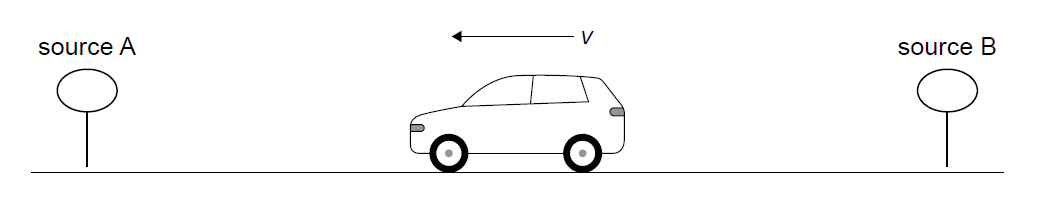

A car is moving at constant velocity \(v\) between two sources of sound as shown in the diagram. The sources emit sound at \(440\,\text{Hz}\) and at \(540\,\text{Hz}\). The driver hears both sounds at the same frequency.
(b)
(i) Explain which frequency is emitted by source A. [1]
(ii) The spectrum of light received from a galaxy shows a peak at a wavelength of \(659.0\,\text{nm}\). The peak corresponds to an atomic transition in the hydrogen atom that emits a wavelength of \(656.1\,\text{nm}\) when observed in a laboratory on Earth. Calculate the velocity of the galaxy with respect to Earth. [2]
▶️ Answer/Explanation
(a)(i)
Wavelength \(= 0.68\,\text{m}\) (accept \(0.67\) to \(0.70\,\text{m}\)).
Period \(= 0.002\,\text{s}\).
Wavelength \(= 0.68\,\text{m}\) (accept \(0.67\) to \(0.70\,\text{m}\)).
Period \(= 0.002\,\text{s}\).
(a)(ii)
\(v = \dfrac{\lambda}{T} = \dfrac{0.68}{0.002} = 340\,\text{m s}^{-1}\) (allow \(v = 335\)–\(350\,\text{m s}^{-1}\)).
\(v = \dfrac{\lambda}{T} = \dfrac{0.68}{0.002} = 340\,\text{m s}^{-1}\) (allow \(v = 335\)–\(350\,\text{m s}^{-1}\)).
(b)(i)
Source A emits \(440\,\text{Hz}\) because the frequency heard by the driver must be higher from the source the car is moving towards (equivalently: the apparent wavelength decreases).
Source A emits \(440\,\text{Hz}\) because the frequency heard by the driver must be higher from the source the car is moving towards (equivalently: the apparent wavelength decreases).
(b)(ii)
Use \( \dfrac{v}{c} \approx \dfrac{\Delta \lambda}{\lambda} \).
\( \dfrac{v}{c} \approx \dfrac{(659.0\times 10^{-9}) – (656.1\times 10^{-9})}{656.1\times 10^{-9}} \).
\( \dfrac{v}{c} \approx 0.00442 \).
\( v \approx 0.00442\,c \approx 1.33\times 10^{6}\,\text{m s}^{-1} \).
Use \( \dfrac{v}{c} \approx \dfrac{\Delta \lambda}{\lambda} \).
\( \dfrac{v}{c} \approx \dfrac{(659.0\times 10^{-9}) – (656.1\times 10^{-9})}{656.1\times 10^{-9}} \).
\( \dfrac{v}{c} \approx 0.00442 \).
\( v \approx 0.00442\,c \approx 1.33\times 10^{6}\,\text{m s}^{-1} \).
