Ohm’s law
∙The German Ohm studied resistance of materials in the 1800s and in 1826 stated:
“Provided the temperature is kept constant, the resistance of very many materials is constant over a wide range of applied potential differences, and therefore the potential difference is proportional to the current.”
∙In formula form Ohm’s law looks like this:
FYI ∙
Ohm’s law applies to components with constant R.
Ohm’s law – ohmic and non-ohmic behavior
∙A material is considered ohmic if it behaves according to Ohm’s law. In other words the resistance stays constant as the voltage changes.
EXAMPLE:
Label appropriate V-I graphs with the following labels: ohmic, non-ohmic, R increasing, R decreasing, R constant.
SOLUTION:
• First label the resistance dependence.
• R = V/I so R is just the slope of the V vs. I graph.
• Ohm’s law states the R is constant. Thus only one graph is ohmic.
Since R is not constant the filament is non-ohmic.
EXAMPLE:
The graph shows the applied voltage V vs. resulting current I through a tungsten filament lamp.
Find R when \(I = 0.5 \, \text{mA}\) and \(1.5 \, \text{mA}\). Is this filament ohmic or non-ohmic?
▶️Answer/Explanation
SOLUTION:
• At \(0.5 \, \text{mA}\): \(V = 0.08 \, \text{V}\)
\[R = \frac{V}{I} = \frac{0.08}{0.5 \times 10^{-3}} = 160 \, \Omega.\]
• At \(1.5 \, \text{mA}\): \(V = 0.6 \, \text{V}\)
\[R = \frac{V}{I} = \frac{0.6}{1.5 \times 10^{-3}} = 400 \, \Omega.\]

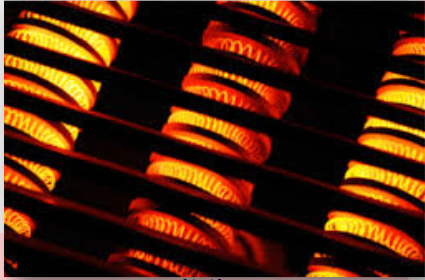

Power dissipation
• Recall that power is the rate at which work is being done. Thus \(P = \frac{W}{t}\).
• From Topic 5.1 we learned that \(W = qV\).
• Thus
$P = \frac{W}{t} = \frac{qV}{t}$
$P = \left( \frac{q}{t} \right) V$
$P = IV.$
FYI
∙This power represents the energy per unit time delivered to, or consumed by, an electrical component having a current I and a potential difference V.
PRACTICE:
Use the definition of resistance \(R = \frac{V}{I}\) together with the one we just derived (\(P = VI\)) to derive the following two formulas:
(a) \(P = I^2R\)
(b) \(P = \frac{V^2}{R}\)
▶️Answer/Explanation
SOLUTION:
(a) From \(R = \frac{V}{I} \rightarrow V = IR\)
\(P = IV\)
\(= I(IR)\)
\(= I^2R\).
(b) From \(R = \frac{V}{I} \rightarrow I = \frac{V}{R}\)
\(P = IV\)
\(= \left( \frac{V}{R} \right) (V)\)
\(= \frac{V^2}{R}\).
