LEARNING OBJECTIVE

Definition and calculation of the scalar and vector product of two vectors.

Key Concepts:

The Scalar Product
The Vector Product
Components of vectors.

MAI HL and SL Notes – All topics

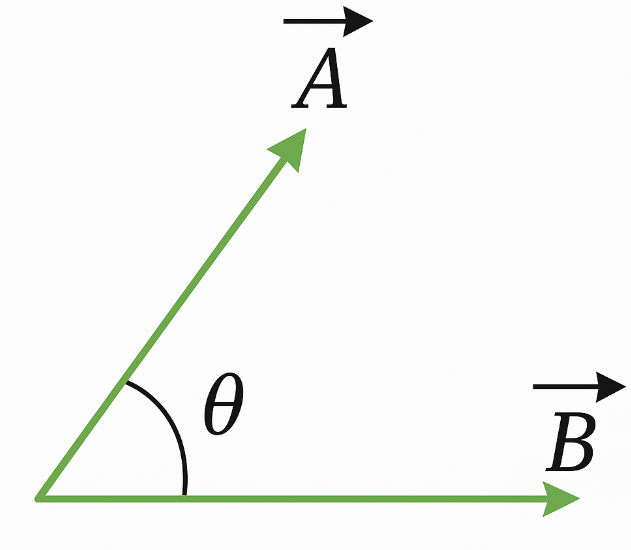

◆ GEOMETRIC DEFINITION

For vectors $\vec{u}$, $\vec{v}$ with angle $\theta$ between them:

$
\vec{u} \cdot \vec{v} = |\vec{u}||\vec{v}|\cos\theta.
$

If $|\vec{u}| = 5$, $|\vec{v}| = 4$, $\theta = 60^\circ$, then $\vec{u} \cdot \vec{v} = 10$.

Special Cases:

$\theta = 90^\circ \Rightarrow \vec{u} \cdot \vec{v} = 0$ (perpendicular).
$\theta = 0^\circ \Rightarrow \vec{u} \cdot \vec{v} = |\vec{u}||\vec{v}|$ (parallel, same direction).
$\theta = 180^\circ \Rightarrow \vec{u} \cdot \vec{v} = -|\vec{u}||\vec{v}|$ (parallel, opposite direction).

◆ ALGEBRAIC DEFINITION

For $\vec{u} = \begin{pmatrix} a_1 \\ b_1 \end{pmatrix}$, $\vec{v} = \begin{pmatrix} a_2 \\ b_2 \end{pmatrix}$:

$\vec{u} \cdot \vec{v} = a_1a_2 + b_1b_2.$

Example

For

$\begin{pmatrix} 2 \\ 3 \end{pmatrix} \cdot \begin{pmatrix} 5 \\ 4 \end{pmatrix} =?$.

Find Dot Product of given vectors.

▶️Answer/Explanation

Solution:

$\begin{pmatrix} 2 \\ 3 \end{pmatrix} \cdot \begin{pmatrix} 5 \\ 4 \end{pmatrix} = 22$.

◆ ANGLE BETWEEN VECTORS

$\cos\theta = \frac{\vec{u} \cdot \vec{v}}{|\vec{u}||\vec{v}|}.$

Example

For

$\vec{u} = \begin{pmatrix} 3 \\ 4 \end{pmatrix}$, $\vec{v} = \begin{pmatrix} 1 \\ -2 \end{pmatrix}$

Find Angle between given vectors.

▶️Answer/Explanation

Solution:

$\cos\theta = \frac{-5}{5\sqrt{5}} = -\frac{1}{\sqrt{5}} \Rightarrow \theta \approx 116.6^\circ.$

◆ PERPENDICULAR AND PARALLEL VECTORS

Perpendicular: $\vec{u} \cdot \vec{v} = 0$.
Parallel: $\vec{u} = k\vec{v}$ for some scalar $k$.

Example

Find $x$ such that $\vec{v} = \begin{pmatrix} x \\ -6 \end{pmatrix}$ is

1. Perpendicular to $\vec{u} = $

2. Parallel to $\vec{u}$:

▶️Answer/Explanation

Solution:

1. Perpendicular to $\vec{u} = \begin{pmatrix} 3 \\ 4 \end{pmatrix}$:
$3x – 24 = 0 \Rightarrow x = 8.$
2. Parallel to $\vec{u}$:
$\frac{x}{3} = \frac{-6}{4} \Rightarrow x = -\frac{9}{2}.$

◆ PROPERTY

$|\vec{u}|^2 = \vec{u}^2$
$|\vec{u} + \vec{v}| = |\vec{u} – \vec{v}| \Rightarrow \vec{u} \cdot \vec{v} = 0 \quad (\text{perpendicular vectors}).$

◆ 3D VECTORS

For $\vec{u} = \begin{pmatrix} a_1 \\ b_1 \\ c_1 \end{pmatrix}$, $\vec{v} = \begin{pmatrix} a_2 \\ b_2 \\ c_2 \end{pmatrix}$:
$\vec{u} \cdot \vec{v} = a_1a_2 + b_1b_2 + c_1c_2.$

Example: $\begin{pmatrix} 4 \\ 2 \\ -1 \end{pmatrix} \cdot \begin{pmatrix} 5 \\ -3 \\ 14 \end{pmatrix} = 0$ (perpendicular).

◆ THE GEOMETRIC DEFINITION

Let $\vec{u}$ and $\vec{v}$ be two vectors, and let $\theta$ be the angle between them (where $0 \leq \theta \leq \pi$).

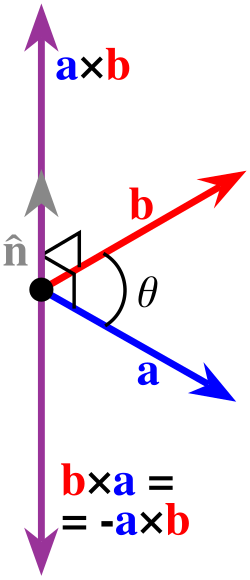

The cross product (or vector product) of $\vec{u}$ and $\vec{v}$ is defined as a vector given by:

$\vec{u} \times \vec{v} = (|\vec{u}| |\vec{v}| \sin \theta) \vec{n}$
where $\vec{n}$ is the unit vector perpendicular to both $\vec{u}$ and $\vec{v}$ and follows the “right-hand rule” (or “screw rule”):

If you place a screw at the common starting point of $\vec{u}$ and $\vec{v}$ and rotate it from $\vec{u}$ to $\vec{v}$, the screw will move in the direction of $\vec{n}$.

Thus, $\vec{u} \times \vec{v}$ is a new vector:

Perpendicular to both $\vec{u}$ and $\vec{v}$ (and hence to the plane they determine).
With magnitude $|\vec{u}| |\vec{v}| \sin \theta$.
With direction given by $\vec{n}$.

Note:

The commutative law does not hold for the cross product. Instead:

$\vec{u} \times \vec{v} = -\vec{v} \times \vec{u}$
If $\vec{u}$ and $\vec{v}$ are parallel ($\theta = 0$ or $\pi$), then $\sin \theta = 0$, and $\vec{u} \times \vec{v} = \vec{0}$.

◆ THE ALGEBRAIC DEFINITION

Let $\vec{u} = \begin{pmatrix} a_1 \\ b_1 \\ c_1 \end{pmatrix}$ and $\vec{v} = \begin{pmatrix} a_2 \\ b_2 \\ c_2 \end{pmatrix}$ be two vectors. The cross product is given by:

$\vec{u} \times \vec{v} = \begin{pmatrix} b_1 c_2 – b_2 c_1 \\ c_1 a_2 – c_2 a_1 \\ a_1 b_2 – a_2 b_1 \end{pmatrix}$

Memory Aid:

For the first component, ignore the first row of $\vec{u}$ and $\vec{v}$ and compute:

$\begin{vmatrix} b_1 & c_1 \\ b_2 & c_2 \end{vmatrix} = b_1 c_2 – b_2 c_1$

For the second component, ignore the second row and compute:

$\begin{vmatrix} c_1 & a_1 \\ c_2 & a_2 \end{vmatrix} = c_1 a_2 – c_2 a_1$

For the third component, ignore the third row and compute:

$\begin{vmatrix} a_1 & b_1 \\ a_2 & b_2 \end{vmatrix} = a_1 b_2 – a_2 b_1$

Alternative Notation (Determinant Form):

$\vec{u} \times \vec{v} = \begin{vmatrix} \vec{i} & \vec{j} & \vec{k} \\ a_1 & b_1 & c_1 \\ a_2 & b_2 & c_2 \end{vmatrix}$

where

$\vec{i} = \begin{pmatrix} 1 \\ 0 \\ 0 \end{pmatrix}$, $\vec{j} = \begin{pmatrix} 0 \\ 1 \\ 0 \end{pmatrix}$, $\vec{k} = \begin{pmatrix} 0 \\ 0 \\ 1 \end{pmatrix}$.

Example

Let

$\vec{u} = \begin{pmatrix} 1 \\ 2 \\ 3 \end{pmatrix}$ and $\vec{v} = \begin{pmatrix} 4 \\ 5 \\ 6 \end{pmatrix}$.

a) Find $\vec{u} \cdot \vec{v}$.
b) Find $\vec{u} \times \vec{v}$ and $\vec{v} \times \vec{u}$.
c) Verify that $\vec{u} \times \vec{v}$ is perpendicular to both $\vec{u}$ and $\vec{v}$.

▶️Answer/Explanation

Solution:

a) Dot product:
$\vec{u} \cdot \vec{v} = (1)(4) + (2)(5) + (3)(6) = 4 + 10 + 18 = 32$

b) Cross product:
$\vec{u} \times \vec{v} = \begin{pmatrix} (2)(6) – (5)(3) \\ (3)(4) – (6)(1) \\ (1)(5) – (4)(2) \end{pmatrix} = \begin{pmatrix} -3 \\ 6 \\ -3 \end{pmatrix}$
$\vec{v} \times \vec{u} = -\vec{u} \times \vec{v} = \begin{pmatrix} 3 \\ -6 \\ 3 \end{pmatrix}$

c) Perpendicularity check:
$(\vec{u} \times \vec{v}) \cdot \vec{u} = (-3)(1) + (6)(2) + (-3)(3) = -3 + 12 – 9 = 0$
$(\vec{u} \times \vec{v}) \cdot \vec{v} = (-3)(4) + (6)(5) + (-3)(6) = -12 + 30 – 18 = 0$
Hence, $\vec{u} \times \vec{v}$ is perpendicular to both $\vec{u}$ and $\vec{v}$.

Example

Let

$\vec{u} = \begin{pmatrix} 3 \\ 2 \\ 0 \end{pmatrix}$ and $\vec{v} = \begin{pmatrix} 1 \\ 4 \\ 0 \end{pmatrix}$.

a) Find $\vec{u} \times \vec{v}$ using the algebraic definition.
b) Find the angle $\theta$ between $\vec{u}$ and $\vec{v}$.
c) Find the unit vector $\vec{n}$.
d) Find $\vec{u} \times \vec{v}$ using the geometric definition.
e) Verify perpendicularity.

▶️Answer/Explanation

Solution:

a) Cross product:
$\vec{u} \times \vec{v} = \begin{pmatrix} (2)(0) – (4)(0) \\ (0)(1) – (0)(3) \\ (3)(4) – (1)(2) \end{pmatrix} = \begin{pmatrix} 0 \\ 0 \\ 10 \end{pmatrix}$

b) Angle $\theta$:
$\cos \theta = \frac{\vec{u} \cdot \vec{v}}{|\vec{u}| |\vec{v}|} = \frac{11}{\sqrt{13} \sqrt{17}} \approx 0.74 \implies \theta \approx 42.27^\circ$

c) Unit vector $\vec{n}$:
Since $\vec{u}$ and $\vec{v}$ lie in the $xy$-plane, $\vec{n}$ is parallel to the $z$-axis. From the cross product result:
$\vec{n} = \begin{pmatrix} 0 \\ 0 \\ 1 \end{pmatrix}$

d) Geometric definition:
$\vec{u} \times \vec{v} = (|\vec{u}| |\vec{v}| \sin \theta) \vec{n} = (\sqrt{13} \sqrt{17} \sin 42.27^\circ) \vec{n} \approx 10 \vec{n} = \begin{pmatrix} 0 \\ 0 \\ 10 \end{pmatrix}$

e) Perpendicularity:
Clearly, $\vec{u} \times \vec{v}$ is parallel to $\vec{n}$ and thus perpendicular to both $\vec{u}$ and $\vec{v}$.

◆ THE MAGNITUDE OF $\vec{u} \times \vec{v}$

From the geometric definition:

$|\vec{u} \times \vec{v}| = |\vec{u}| |\vec{v}| \sin \theta$

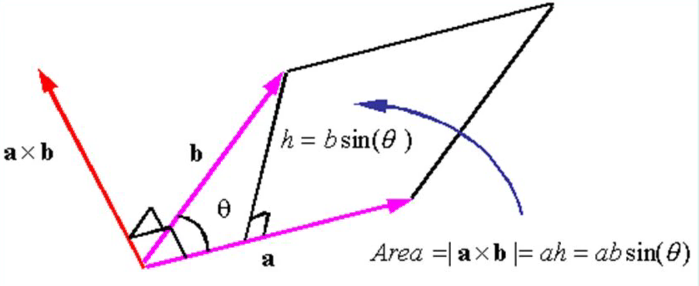

Geometric Interpretation:

The magnitude of $\vec{u} \times \vec{v}$ equals the area of the parallelogram formed by $\vec{u}$ and $\vec{v}$.
The area of the triangle formed by $\vec{u}$ and $\vec{v}$ is half of this:
$\text{Area of triangle} = \frac{1}{2} |\vec{u} \times \vec{v}|$

Example

For

$\vec{u} = \begin{pmatrix} 1 \\ 2 \\ 3 \end{pmatrix}$ and $\vec{v} = \begin{pmatrix} 4 \\ 5 \\ 6 \end{pmatrix}$, we found $\vec{u} \times \vec{v} = \begin{pmatrix} -3 \\ 6 \\ -3 \end{pmatrix}$.

Area of parallelogram:
Area of triangle:

▶️Answer/Explanation

Solution:

Area of parallelogram:
$|\vec{u} \times \vec{v}| = \sqrt{(-3)^2 + 6^2 + (-3)^2} = \sqrt{54} \approx 7.35$
Area of triangle:
$\frac{1}{2} \times 7.35 \approx 3.67$

Example

Find the area of the triangle determined by points

$A(1, 1, 1)$, $B(1, 3, 1)$, and $C(-3, 3, 4)$.

Also Find

$\overrightarrow{AB}$

▶️Answer/Explanation

Solution:

Vectors:
$\overrightarrow{AB} = \begin{pmatrix} 0 \\ 2 \\ 0 \end{pmatrix}, \quad \overrightarrow{AC} = \begin{pmatrix} -4 \\ 2 \\ 3 \end{pmatrix}$

Cross product:
$\overrightarrow{AB} \times \overrightarrow{AC} = \begin{pmatrix} 6 \\ 0 \\ 8 \end{pmatrix}$

Area of triangle:
$\frac{1}{2} |\overrightarrow{AB} \times \overrightarrow{AC}| = \frac{1}{2} \sqrt{6^2 + 0^2 + 8^2} = \frac{1}{2} \times 10 = 5$

In vector problems, we often break a vector into components along specific directions.
Suppose a force represented by vector a is applied, but we’re only interested in how much of that force acts in the direction of another vector b.

Only part of a contributes in the direction of b — this part is called the component of a in the direction of b.
Component of a in direction of b:

$
\text{component} = \frac{\vec{a} \cdot \vec{b}}{|\vec{b}|} = |\vec{a}| \cos \theta
$

Where:

$\vec{a} \cdot \vec{b}$ is the dot product of vectors a and b
$|\vec{b}|$ is the magnitude of vector b
$\theta$ is the angle between vectors a and b

PERPENDICULAR COMPONENTS

In some situations (especially in Physics), we are interested in how much of vector a acts perpendicular to vector b.

This is called the perpendicular component of a to b, and it’s calculated as:

Perpendicular component of a to b:

$
\text{component}_\perp = \frac{|\vec{a} \times \vec{b}|}{|\vec{b}|} = |\vec{a}| \sin \theta
$

Where:

$\vec{a} \times \vec{b}$ is the magnitude of the cross product
$\theta$ is again the angle between vectors a and b

This tells you how much of vector a is acting in a direction that is orthogonal (at 90°) to b.

Example:

Let:

$ \vec{a} = 3\mathbf{i} + 4\mathbf{j}, \quad \vec{b} = 5\mathbf{i} + 5\mathbf{j} $

Find:

The component of a in the direction of b
The component of a perpendicular to b

▶️Answer/Explanation

Magnitudes

$ |\vec{a}| = \sqrt{3^2 + 4^2} = \sqrt{25} = 5 $
$ |\vec{b}| = \sqrt{5^2 + 5^2} = \sqrt{50} = 5\sqrt{2} $

Dot Product for Parallel Component

$ \vec{a} \cdot \vec{b} = (3)(5) + (4)(5) = 35 $
$ \text{Component of } \vec{a} \text{ in direction of } \vec{b} = \frac{35}{5\sqrt{2}} = \frac{7}{\sqrt{2}} \approx 4.95 $

Parallel component magnitude ≈ 4.95

Cross Product for Perpendicular Component

$ |\vec{a} \times \vec{b}| = |(3)(5) – (4)(5)| = |15 – 20| = 5 $
$ \text{Perpendicular component} = \frac{5}{5\sqrt{2}} = \frac{1}{\sqrt{2}} \approx 0.71 $

Perpendicular component magnitude ≈ 0.71
