Key Concepts:
- Three Dimensional Geometry: Coordinates of a Point in Space
Three Dimensional Geometry: Coordinates of a Point in Space

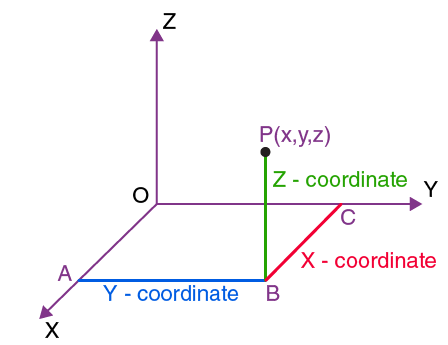

In three-dimensional geometry, every point in space is represented using three numbers called its coordinates. A point \( P \) is written as \( P(x, y, z) \), where:
- \( x \) → distance along the X-axis
- \( y \) → distance along the Y-axis
- \( z \) → distance along the Z-axis
The three axes \( X, Y, Z \) are mutually perpendicular and intersect at a common point called the origin \( O(0,0,0) \).
Coordinate Axes and Coordinate Planes
- X-axis: positive rightward, negative leftward
- Y-axis: positive forward, negative backward
- Z-axis: positive upward, negative downward

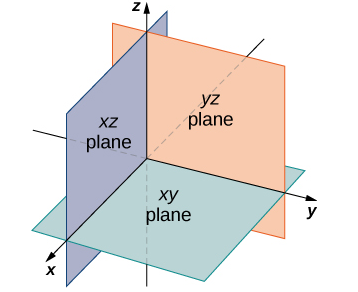

There are three coordinate planes:
- XY-plane : all points with \( z = 0 \)
- YZ-plane : all points with \( x = 0 \)
- Z X-plane : all points with \( y = 0 \)

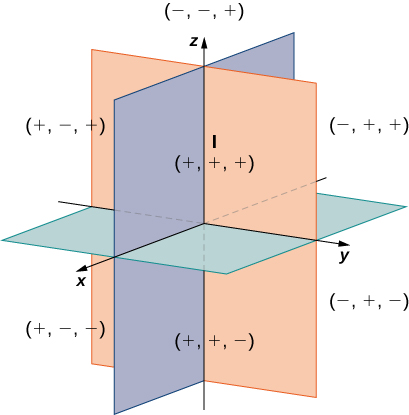

Octants
The three coordinate planes divide space into 8 regions called octants.
- 1st octant : \( x > 0, y > 0, z > 0 \)
- Other octants follow by changing the signs of \( x, y, z \)
Distance of a Point From the Coordinate Planes
For a point \( P(x, y, z) \):
- Distance from XY-plane = \( |z| \)
- Distance from YZ-plane = \( |x| \)
- Distance from ZX-plane = \( |y| \)
Sign Convention (Very Important for JEE)
- If \( x > 0 \) → point is to the right of the YZ-plane
- If \( y > 0 \) → point is in front of the ZX-plane
- If \( z > 0 \) → point is above the XY-plane
Coordinates of Mid-Point in 3D
If \( A(x_1, y_1, z_1) \) and \( B(x_2, y_2, z_2) \), then midpoint \( M \) is:
\( M\left( \dfrac{x_1 + x_2}{2}, \dfrac{y_1 + y_2}{2}, \dfrac{z_1 + z_2}{2} \right) \)
Coordinates of a Point Dividing a Line (Section Formula)
Point \( P \) dividing \( A(x_1, y_1, z_1) \) and \( B(x_2, y_2, z_2) \) in ratio \( m:n \) internally:
\( P\left( \dfrac{mx_2 + nx_1}{m+n}, \dfrac{my_2 + ny_1}{m+n}, \dfrac{mz_2 + nz_1}{m+n} \right) \)
Distance Between Two Points
If \( P_1(x_1, y_1, z_1) \) and \( P_2(x_2, y_2, z_2) \), then:
\( P_1P_2 = \sqrt{(x_2 – x_1)^2 + (y_2 – y_1)^2 + (z_2 – z_1)^2} \)
Example
Find the distance of the point \( P(3, -4, 5) \) from the XY-plane.
▶️ Answer / Explanation
Distance from XY-plane depends only on \( z \).
Given \( z = 5 \).
Distance = \( |5| = 5 \)
Example
Find midpoint of points \( A(2, 3, 5) \) and \( B(6, -1, 9) \).
▶️ Answer / Explanation
Midpoint = \( M\left( \dfrac{2+6}{2}, \dfrac{3 + (-1)}{2}, \dfrac{5+9}{2} \right) \)
= \( M(4, 1, 7) \)
Example
Find the distance between \( P(1,2,3) \) and \( Q(4,6,3) \).
▶️ Answer / Explanation
\( PQ = \sqrt{(4-1)^2 + (6-2)^2 + (3-3)^2} \)
= \( \sqrt{3^2 + 4^2 + 0^2} = \sqrt{25} = 5 \)
