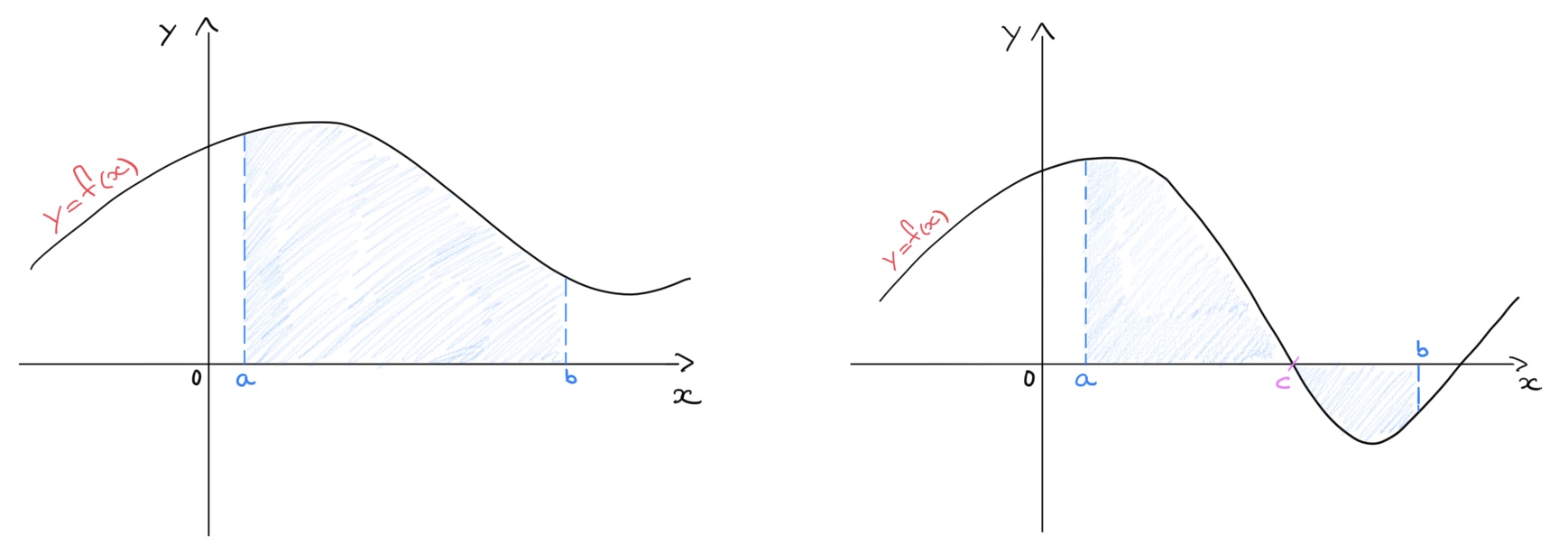

Area Under a Curve – Geometrical Meaning and Evaluation using Definite Integrals

One of the most important applications of definite integrals is to find the area under a curve. If a function $ y = f(x) $ is continuous and non-negative on an interval $[a, b]$, then the area bounded by the curve, the x-axis, and the vertical lines $ x = a $ and $ x = b $ is given by the definite integral:

$ A = \int_a^b f(x)\,dx $

Geometrical Meaning of Definite Integral

The definite integral $ \displaystyle \int_a^b f(x)\,dx $ represents the net signed area under the curve $ y = f(x) $ from $ x = a $ to $ x = b $.

If $ f(x) \ge 0 $ → area is positive (above x-axis).
If $ f(x) \le 0 $ → area is negative (below x-axis).
If the curve crosses the x-axis, areas above and below cancel out algebraically.

Formula for Area Under a Curve

$ A = \int_a^b |f(x)|\,dx $

Here, we take the absolute value of $ f(x) $ when the curve lies below the x-axis to ensure total area is always positive.

Common Situations for Area Evaluation

Situation	Formula for Area
Area between curve and x-axis	$ A = \displaystyle \int_a^b \|f(x)\|\,dx $
Area between two curves $ y_1 = f(x) $ and $ y_2 = g(x) $	$ A = \displaystyle \int_a^b \|f(x) – g(x)\|\,dx $
Area bounded by a curve and y-axis	$ A = \displaystyle \int_{y_1}^{y_2} x\,dy $

Steps to Find Area Under a Curve

Sketch the curve to identify the region clearly.
Determine the points of intersection or limits of integration.
Decide whether the function lies above or below the x-axis.
Set up the appropriate definite integral.
Integrate and simplify to get the required area.

Example

Find the area under the curve $ y = x^2 $ between $ x = 0 $ and $ x = 2 $.

▶️ Answer / Explanation

Step 1: Since $ y = x^2 \ge 0 $ in [0, 2], area = $ \displaystyle \int_0^2 x^2\,dx. $

Step 2: Integrate: $ \displaystyle \int x^2\,dx = \dfrac{x^3}{3}. $

Step 3: Apply limits: $ \left[\dfrac{x^3}{3}\right]_0^2 = \dfrac{8}{3}. $

Answer: $ \dfrac{8}{3} \text{ square units.} $

Example

Find the area enclosed by $ y = \sin x $ and the x-axis between $ x = 0 $ and $ x = \pi $.

▶️ Answer / Explanation

Step 1: $ y = \sin x \ge 0 $ in [0, π].

Step 2: $ A = \displaystyle \int_0^{\pi} \sin x\,dx = [-\cos x]_0^{\pi} = -(-1) + (1) = 2. $

Answer: $ 2 \text{ square units.} $

Example

Find the area enclosed between $ y = x^2 $ and $ y = 4x – x^2 $.

▶️ Answer / Explanation

Step 1: Find intersection points by equating:

$ x^2 = 4x – x^2 \Rightarrow 2x^2 – 4x = 0 \Rightarrow x(2x – 4) = 0 \Rightarrow x = 0, 2. $

Step 2: Since $ 4x – x^2 \ge x^2 $ between 0 and 2, $ A = \displaystyle \int_0^2 [(4x – x^2) – x^2]\,dx = \int_0^2 (4x – 2x^2)\,dx. $

Step 3: Integrate:

$ \int (4x – 2x^2)\,dx = 2x^2 – \dfrac{2x^3}{3}. $

Step 4: Apply limits:

$ [2x^2 – \dfrac{2x^3}{3}]_0^2 = (8 – \dfrac{16}{3}) = \dfrac{8}{3}. $

Answer: $ \dfrac{8}{3} \text{ square units.} $

Area under Curve with Negative Region

If the curve lies below the x-axis for some interval, the total area is obtained by splitting and taking the absolute value:

$ A = \int_a^c f(x)\,dx – \int_c^b f(x)\,dx, \quad \text{if } f(x) \text{ changes sign at } x = c. $

Special Case — Symmetric Curves

If $ f(x) $ is even → $ A = 2\int_0^a f(x)\,dx $
If $ f(x) $ is odd → $ A = 0 $ (area cancels out above and below x-axis)

Area Under the Curve

The area under a curve $ y = f(x) $ between $ x = a $ and $ x = b $ is:

$ \text{Area} = \int_a^b f(x)\,dx. $

If the curve is above x-axis → area positive. If below x-axis → integral gives negative value, but area is taken as positive (modulus).

Case 1 — Area Between Curve and x–Axis

If $ f(x) \ge 0 $ in $ [a,b] $, then:

$ A = \int_a^b f(x)\,dx. $

Example

Find area under $ y = x^2 $ from $ x=0 $ to $ x=2 $.

▶️ Answer / Explanation

$ A = \int_0^2 x^2 dx = \left[\frac{x^3}{3}\right]_0^2 = \frac{8}{3}. $

Area = $ \dfrac{8}{3} $

Case 2 — Area Between Curve and y–Axis

Rewrite curve as $ x = g(y) $, then:

$ A = \int_{y_1}^{y_2} g(y)\,dy. $

Example

Find area bounded by parabola $ x = y^2 $ and line $ x = 4 $.

▶️ Answer / Explanation

Points: $ y = -2 $ to $ y = 2 $.

$ A = \int_{-2}^{2} (4 – y^2)\,dy = \left[4y – \frac{y^3}{3}\right]_{-2}^{2} = \frac{32}{3}. $

Area = $ \dfrac{32}{3} $

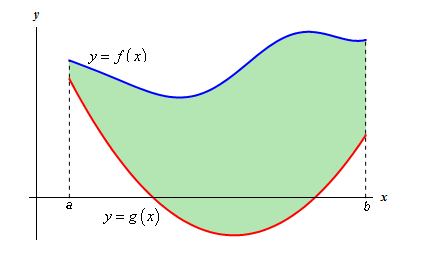

Case 3 — Area Between Two Curves

If curves intersect at $ x = a $ and $ x = b $:

$ A = \int_a^b (f(x) – g(x))\,dx $

where $ f(x) $ is the upper curve.

Example

Find area between $ y = x $ and $ y = x^2 $.

▶️ Answer / Explanation

Intersections: $ x=0,1 $.

Upper curve: $ y = x $.

$ A = \int_0^1 (x – x^2)\,dx = \left[\frac{x^2}{2} – \frac{x^3}{3}\right]_0^1 = \frac{1}{2} – \frac{1}{3} = \frac{1}{6}. $

Area = $ \dfrac{1}{6} $

Case 4 — Area Using Symmetry

Even function: $ f(-x) = f(x) $

$ \int_{-a}^{a} f(x)\,dx = 2\int_0^{a} f(x)\,dx. $

Odd function: $ f(-x) = -f(x) $

$ \int_{-a}^{a} f(x)\,dx = 0. $

Example

Evaluate area under $ y = |x| $ from -3 to 3.

▶️ Answer / Explanation

Use symmetry: $ A = 2\int_0^3 x\,dx = 2\left[\frac{x^2}{2}\right]_0^3 = 9. $

Area = 9

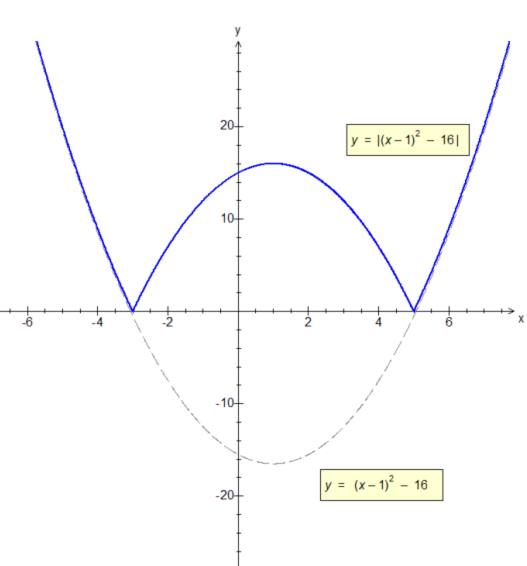

Case 5 — Area Involving Modulus Functions

Whenever $ y = |f(x)| $, split the interval where $ f(x) \ge 0 $ and where $ f(x) < 0 $.

Important JEE note: Area is always taken as positive.

Example

Find area under $ y = |x – 2| $ from $ x = 0 $ to $ x = 4 $.

▶️ Answer / Explanation

Critical point x = 2.

$ A = \int_0^2 (2 – x)\,dx + \int_2^4 (x – 2)\,dx $

Both integrals give 2.

Total area = 4.

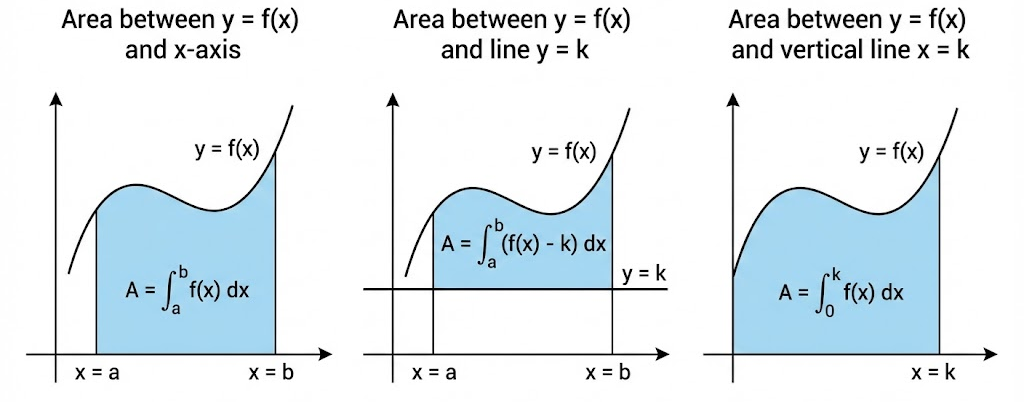

Case 6 — Area Between Curve & Vertical/Horizontal Lines

Typical JEE types:

between $ y = f(x) $ and x-axis
between $ y = f(x) $ and a line $ y = k $
between $ y = f(x) $ and a vertical line $ x = k $

General idea: integrate the difference.

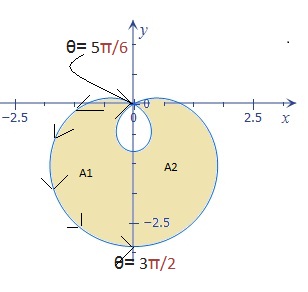

Case 7 — Area of a Loop (Important for JEE)

Some curves form loops: e.g., $ y^2 = x(4-x) $, cycloids, lemniscates.

Use symmetry / find intersection points / integrate carefully.

Example

Find the area bounded by curves $ y = \sin x $ and $ y = \cos x $ between their points of intersection.

▶️ Answer / Explanation

Intersection: $ \sin x = \cos x \Rightarrow x = \frac{\pi}{4}. $ Next intersection: $ \sin x = \cos x \Rightarrow x = \frac{5\pi}{4}. $

Upper curve in this interval is $ \cos x $.

$ A = \int_{\pi/4}^{5\pi/4} (\cos x – \sin x)\,dx. $

$ A = [\sin x + \cos x]_{\pi/4}^{5\pi/4} $

Compute both values → Area = 2√2.

Final Answer = $ 2\sqrt{2} $
